Neural Probes · A-Series (Polytrode & Tetrode)

Tetrode Single-Shank 16-Channel Probe, 4.99975 mm

16Sites
1Shanks
5mmShank Length
78.75µmSite Pitch
Part no.Lfp8-tet
Contact us to order
Contents

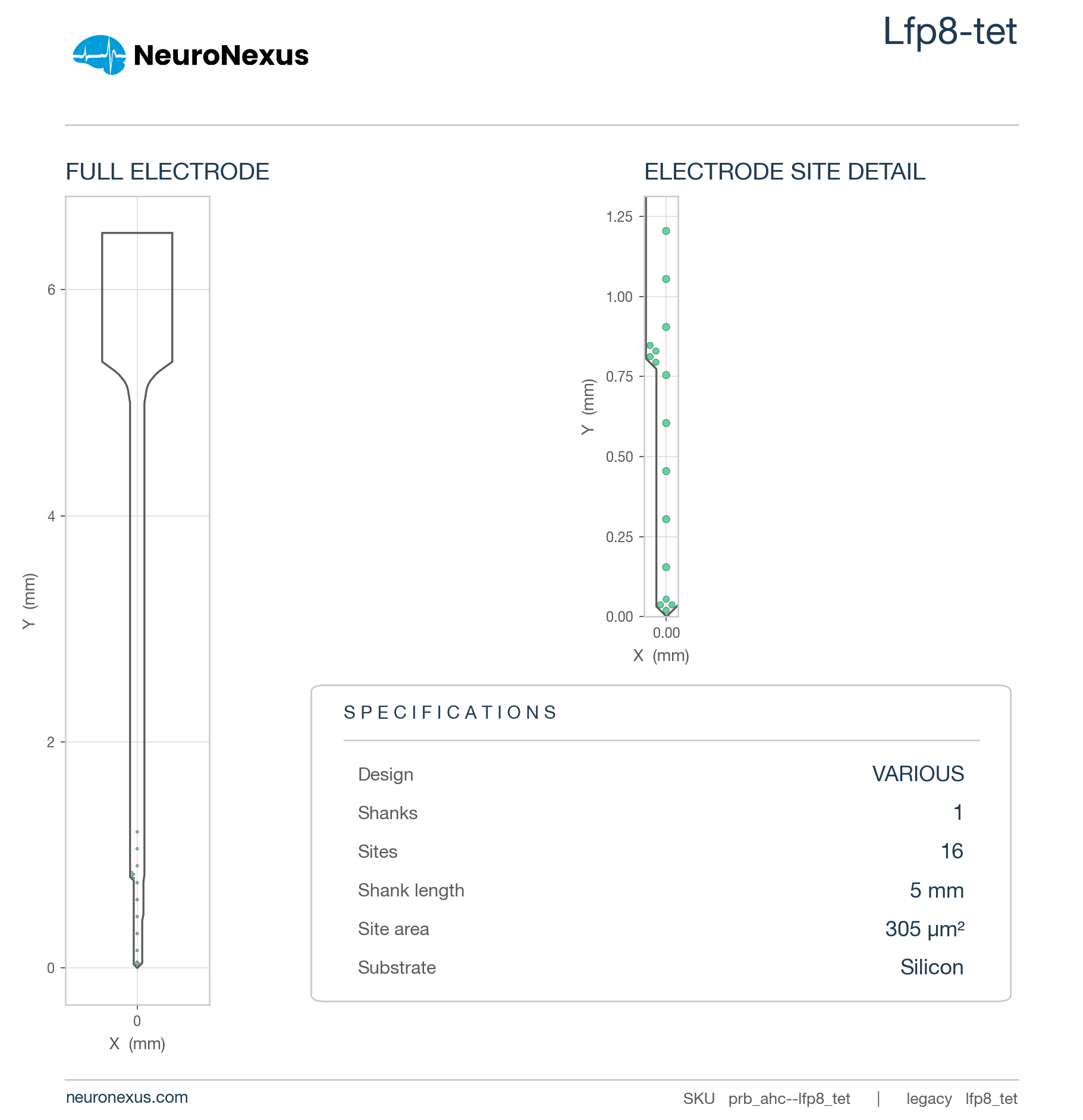

16-site A-Series polytrode/tetrode probe, 1 shank, 5 mm, 305 µm²

A single mid-length shank with sites grouped in tetrodes at intervals, for unit isolation at set depths. Among the 369 probe designs in the design space it is mid-range: 16 sites (a common choice — 84 of 369), 5 mm shanks (23rd percentile of the 366 measured), a 1.21 mm-deep site array (59th percentile), 151 sites/mm² (43rd percentile) and a 0.5 mm³ neural interface (32nd percentile).

Mid-sized sites balance unit isolation against field-potential pickup, spaced for a laminar profile. The mid-length shank reaches structures a few millimetres down.

Orders as a probe-plus-package assembly, in 8 package configurations. Silicon 15 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

lfp8_tet

Tetrode Single-Shank 16-Channel Probe, 4.99975 mmSKU prb_ahc--lfp8_tet

13 specs

Channels16
Shanks1
Shank length4.99975 mm
Site layoutTetrode
Site area305 µm²
Site pitch78.751 µm
Vertical span1206 µm
SubstrateSilicon
Site materialIridium
Thickness15 µm
Neural interface volume0.501 mm³ (higher than 32% of 369 designs)
Site coverage density151.1 sites/mm² (higher than 43% of 369 designs)
Brain coverage density31.9 sites/mm³ (higher than 31% of 369 designs)
Tetrode Single-Shank 16-Channel Probe, 4.99975 mmSKU prb_ahc--lfp8_tet

Narrow the options with the filters or pick a card, then contact us to order that configuration.

8 options

Configure

Compatible Package
All
A16 — 16-ch
CM16 — 16-ch
CM16LP — 16-ch Omnetics
H16 (21 mm cable) — 16-ch Omnetics
HC16 (21 mm cable) — 16-ch Omnetics
HP16_21MM — 16-ch
OA16LP — 16-ch
Z16 — 16-ch Hirose

Your selection

16-channel single-shank silicon probe, 4.99975 mm — 15 μm, A16
A16
Compatible Package: A16 — 16-ch
SKUprb_ahc--lfp8_tet.15um.a16

Options

8 of 8
Tetrode Single-Shank 16-Channel Probe, 4.99975 mmSKU prb_ahc--lfp8_tet

Loading the compatible products…

Tetrode Single-Shank 16-Channel Probe, 4.99975 mmSKU prb_ahc--lfp8_tet

13 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
16
41024

Top 70% of catalog designs

Sites 16 — higher than 30% of catalog designs and 17% of its family
Shanks
1
116

Top 58% of catalog designs

Shanks 1 — higher than 42% of catalog designs and 35% of its family
Shank length
5 mm
1 mm60 mm

Top 77% of catalog designs

Shank length 5 mm — higher than 23% of catalog designs and 17% of its family
Maximum site depth
4.99 mm
0.972 mm51.29 mm

Top 49% of catalog designs

Maximum site depth 4.99 mm — higher than 51% of catalog designs and 51% of its family
Minimum site depth
3.78 mm
0.067 mm44.74 mm

Top 62% of catalog designs

Minimum site depth 3.78 mm — higher than 38% of catalog designs and 24% of its family
Span, x
0.088 mm
0.01 mm6.03 mm

Top 62% of catalog designs

Span, x 0.088 mm — higher than 38% of catalog designs and 21% of its family
Span, y
1.21 mm
0.01 mm10.55 mm

Top 41% of catalog designs

Span, y 1.21 mm — higher than 59% of catalog designs and 80% of its family
Site pitch, x
0.018 µm
0.012 µm0.57 µm

Top 46% of catalog designs

Site pitch, x 0.018 µm — higher than 54% of catalog designs and 52% of its family
Site pitch, y
0.079 µm
0.01 µm1.5 µm

Top 41% of catalog designs

Site pitch, y 0.079 µm — higher than 59% of catalog designs and 99% of its family
Site outline area
0.106 mm²
0.002 mm²28.74 mm²

Top 53% of catalog designs

Site outline area 0.106 mm² — higher than 47% of catalog designs and 44% of its family
Neural interface volume
0.501 mm³
0.149 mm³17.19 mm³

Top 68% of catalog designs

Neural interface volume 0.501 mm³ — higher than 32% of catalog designs and 52% of its family
Site coverage density
151.1 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 57% of catalog designs

Site coverage density 151.1 sites/mm² — higher than 43% of catalog designs and 23% of its family
Brain coverage density
31.91 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 69% of catalog designs

Brain coverage density 31.91 sites/mm³ — higher than 31% of catalog designs and 4% of its family
Tetrode Single-Shank 16-Channel Probe, 4.99975 mmSKU prb_ahc--lfp8_tet

3 notes · Geometry · Construction · Packaging and connector options

Tetrode Single-Shank 16-Channel Probe, 4.99975 mmSKU prb_ahc--lfp8_tet

17 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · How an Electrode Records Neural Activity …

Tetrode Single-Shank 16-Channel Probe, 4.99975 mmSKU prb_ahc--lfp8_tet

Cited in 2,342 publications (product line)
