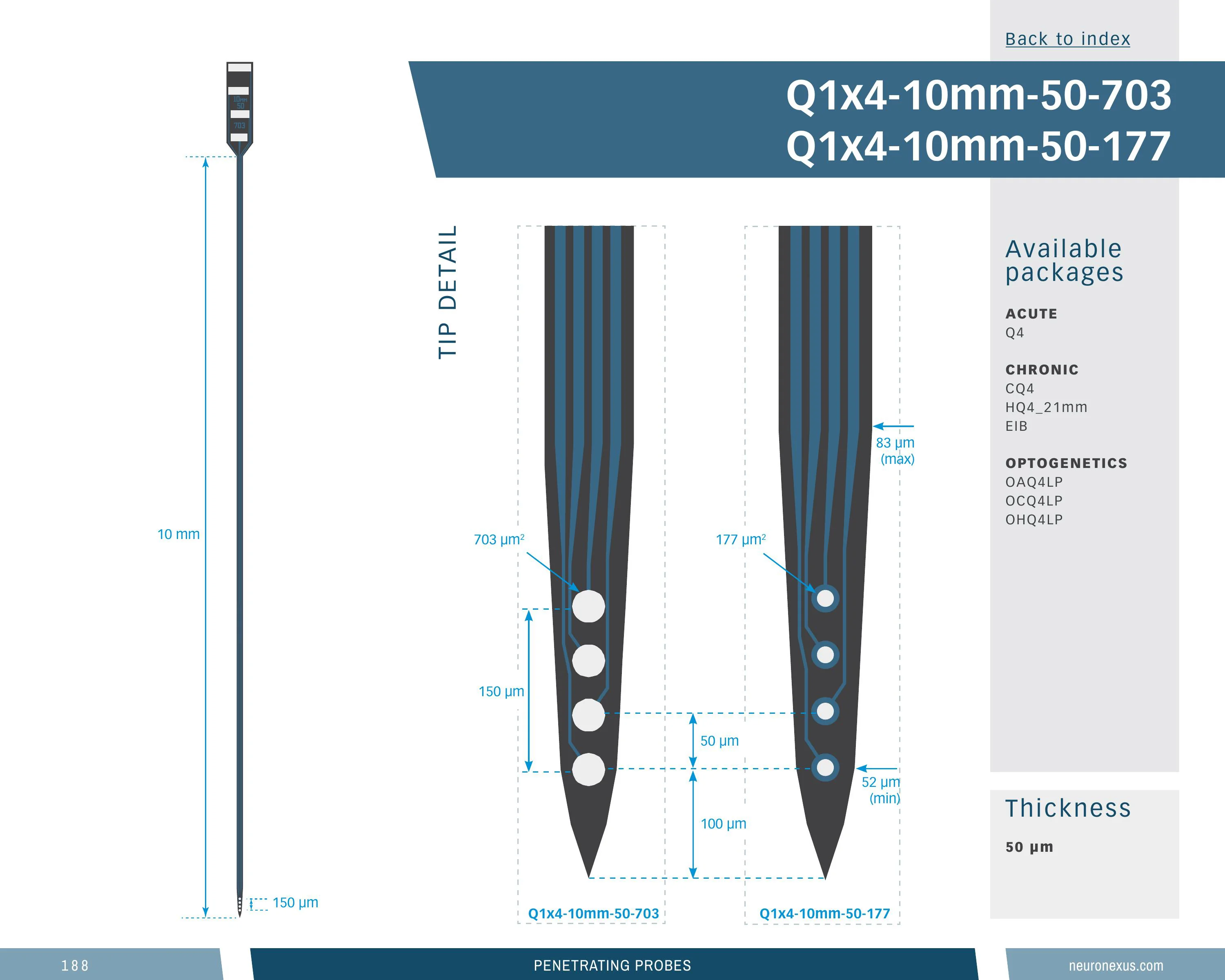

Linear Single-Shank 4-Channel Probe, 10 mm
4-site Q-Trode probe, 10 mm, 177 µm², 50 µm pitch
A single long shank with sites spread evenly down the shank, one per row, for a profile across depth. Among the 369 probe designs in the design space it sits at the bottom: 4 sites (5th percentile), 10 mm shanks (a common choice — 80 of 366), a 0.16 mm-deep site array (9th percentile), 1,637 sites/mm² (93rd percentile) and a 0.17 mm³ neural interface (2nd percentile).
Small sites read a local patch at higher impedance, sharpening single-unit isolation, spaced for a laminar profile. The long shank reaches deep targets.
Orders as a probe-plus-package assembly, in 15 package configurations. Silicon 50 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.
q1x4_10mm_50_177
12 specs
| Channels | 4 |
|---|---|
| Shanks | 1 |
| Shank length | 10 mm |
| Site area | 177 µm² |
| Site pitch | 50 µm |
| Vertical span | 165 µm |
| Substrate | Silicon |
| Site material | Iridium |
| Thickness | 50 µm |
| Neural interface volume | 0.171 mm³ (higher than 2% of 369 designs) |
| Site coverage density | 1,637.2 sites/mm² (higher than 93% of 369 designs) |
| Brain coverage density | 23.4 sites/mm³ (higher than 17% of 369 designs) |
Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.
15 options
Configure
Your selection
4-channel single-shank silicon probe, 10 mm — 50 μm, CM16LP
CM16LPOptions
15 of 15CM16LP — 16-ch Omnetics
CQ4 — 4-ch Mill-Max
CQ4MCS — 4-ch
CQ4_T
EIB — 4-ch
EIBH_21MM — 4-ch
HQ4 (10 mm cable) — 4-ch Mill-Max
HQ4 (21 mm cable) — 4-ch Mill-Max
HQ4 (5 mm cable) — 4-ch Mill-Max
HQ4MCS — 4-ch Mill-Max
HQ4 (21 mm cable) — 4-ch Mill-Max
OAQ4LP — 4-ch
OCQ4LP — 4-ch Mill-Max
Q4 — 4-ch
X3_16 — 16-ch Molex
Loading the compatible products…
12 metrics
Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.
Top 95% of catalog designs · largest in its family
Sites 4 — higher than 5% of catalog designs and 100% of its family (the largest in its family, 19 designs)Top 58% of catalog designs · largest in its family
Shanks 1 — higher than 42% of catalog designs and 100% of its family (the largest in its family, 19 designs)Top 10% of catalog designs
Shank length 10 mm — higher than 90% of catalog designs and 79% of its familyTop 31% of catalog designs
Maximum site depth 9.91 mm — higher than 69% of catalog designs and 63% of its familyTop 10% of catalog designs
Minimum site depth 9.74 mm — higher than 90% of catalog designs and 74% of its familyTop 90% of catalog designs
Span, x 0.015 mm — higher than 10% of catalog designs and 53% of its familyTop 91% of catalog designs
Span, y 0.165 mm — higher than 9% of catalog designs and 42% of its familyTop 44% of catalog designs
Site pitch, y 0.05 µm — higher than 56% of catalog designs and 53% of its familyTop 98% of catalog designs
Site outline area 0.002 mm² — higher than 2% of catalog designs and 42% of its familyTop 98% of catalog designs
Neural interface volume 0.171 mm³ — higher than 2% of catalog designs and 42% of its familyTop 7% of catalog designs
Site coverage density 1637.2 sites/mm² — higher than 93% of catalog designs and 79% of its familyTop 83% of catalog designs
Brain coverage density 23.37 sites/mm³ — higher than 17% of catalog designs and 79% of its family6 notes · Isolation, bought with coverage · Site area is the isolation variable · Naming …
5 downloads · 15 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · How an Electrode Records Neural Activity …
Cited in 2,342 publications (product line)
