Neural Probes · Q-Trode Series

Linear Single-Shank 4-Channel Probe, 10 mm

4Sites
1Shanks
10mmShank Length
50µmSite Pitch
Part no.Q1x4-10mm-50-703
Contents

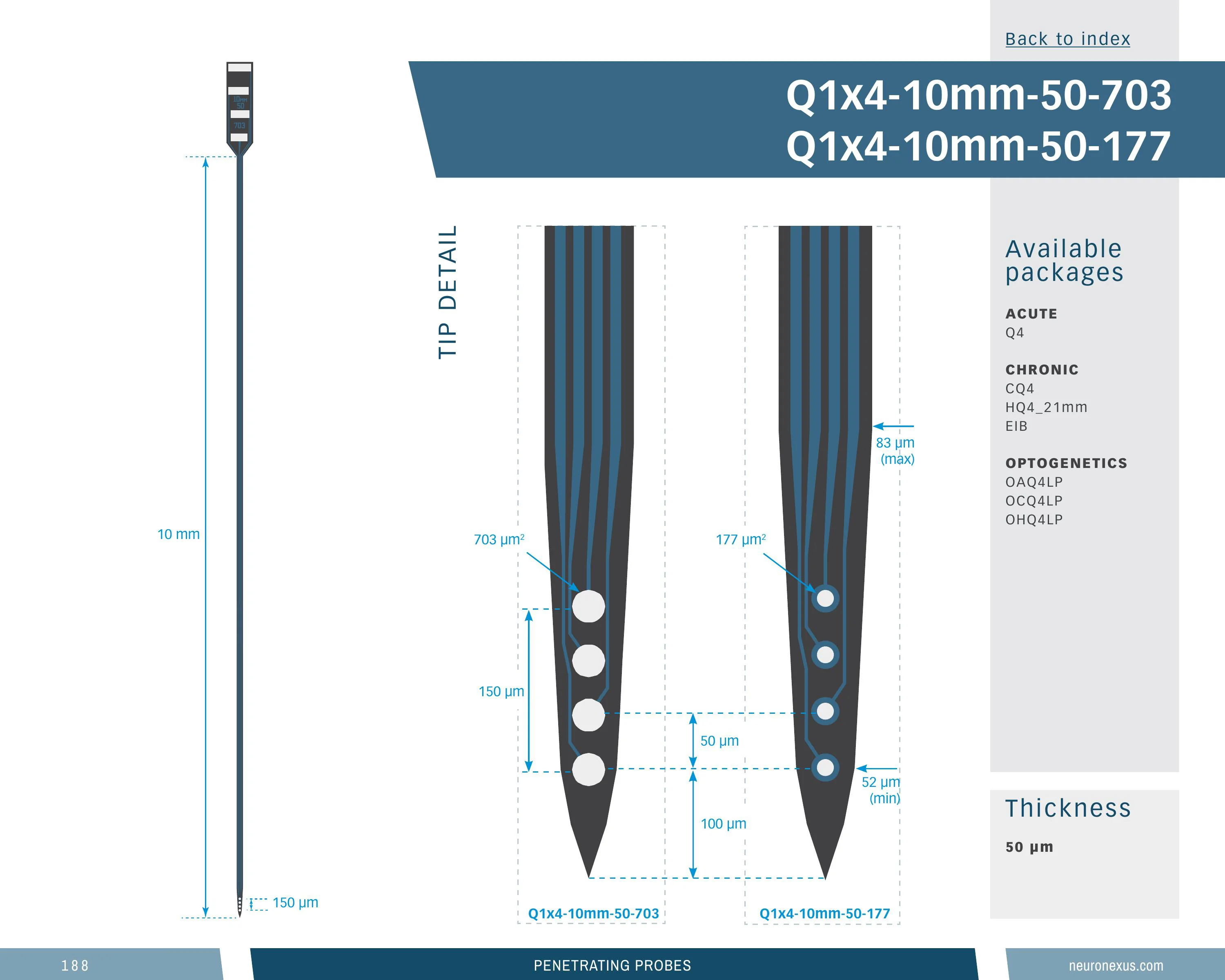

4-site Q-Trode probe, 10 mm, 703 µm², 50 µm pitch

A single long shank with sites spread evenly down the shank, one per row, for a profile across depth. Among the 369 probe designs in the design space it sits at the bottom: 4 sites (5th percentile), 10 mm shanks (a common choice — 80 of 366), a 0.18 mm-deep site array (10th percentile), 750 sites/mm² (80th percentile) and a 0.18 mm³ neural interface (2nd percentile).

Large sites read a wider patch at lower impedance, suited to field potentials and multi-unit activity, spaced for a laminar profile. The long shank reaches deep targets.

Orders as a probe-plus-package assembly, in 11 package configurations. Silicon 50 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

q1x4_10mm_50_703

Linear Single-Shank 4-Channel Probe, 10 mmSKU prb_qtr--q1x4_10mm_50_703

12 specs

Channels4
Shanks1
Shank length10 mm
Site area703 µm²
Site pitch50 µm
Vertical span180 µm
SubstrateSilicon
Site materialIridium
Thickness50 µm
Neural interface volume0.180 mm³ (higher than 2% of 369 designs)
Site coverage density749.6 sites/mm² (higher than 80% of 369 designs)
Brain coverage density22.2 sites/mm³ (higher than 15% of 369 designs)
Linear Single-Shank 4-Channel Probe, 10 mmSKU prb_qtr--q1x4_10mm_50_703

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

11 options

Configure

Compatible Package
All
CM16LP — 16-ch Omnetics
CQ4 — 4-ch Mill-Max
CQ4MCS — 4-ch
EIB — 4-ch
EIBH_21MM — 4-ch
HQ4 — 4-ch Mill-Max
HQ4MCS — 4-ch Mill-Max
OAQ4LP — 4-ch
OCQ4LP — 4-ch Mill-Max
Q4 — 4-ch
X3_16 — 16-ch Molex

Your selection

4-channel single-shank silicon probe, 10 mm — 50 μm, Q4
Q4
Compatible Package: Q4 — 4-ch
SKUprb_qtr--q1x4_10mm_50_703.50um.q4
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

11 of 11
Linear Single-Shank 4-Channel Probe, 10 mmSKU prb_qtr--q1x4_10mm_50_703

Loading the compatible products…

Linear Single-Shank 4-Channel Probe, 10 mmSKU prb_qtr--q1x4_10mm_50_703

12 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
4
41024

Top 95% of catalog designs · largest in its family

Sites 4 — higher than 5% of catalog designs and 100% of its family (the largest in its family, 19 designs)
Shanks
1
116

Top 58% of catalog designs · largest in its family

Shanks 1 — higher than 42% of catalog designs and 100% of its family (the largest in its family, 19 designs)
Shank length
10 mm
1 mm60 mm

Top 10% of catalog designs

Shank length 10 mm — higher than 90% of catalog designs and 79% of its family
Maximum site depth
9.91 mm
0.972 mm51.29 mm

Top 29% of catalog designs

Maximum site depth 9.91 mm — higher than 71% of catalog designs and 79% of its family
Minimum site depth
9.74 mm
0.067 mm44.74 mm

Top 10% of catalog designs

Minimum site depth 9.74 mm — higher than 90% of catalog designs and 68% of its family
Span, x
0.03 mm
0.01 mm6.03 mm

Top 73% of catalog designs

Span, x 0.03 mm — higher than 27% of catalog designs and 74% of its family
Span, y
0.18 mm
0.01 mm10.55 mm

Top 90% of catalog designs

Span, y 0.18 mm — higher than 10% of catalog designs and 47% of its family
Site pitch, y
0.05 µm
0.01 µm1.5 µm

Top 44% of catalog designs

Site pitch, y 0.05 µm — higher than 56% of catalog designs and 53% of its family
Site outline area
0.005 mm²
0.002 mm²28.74 mm²

Top 96% of catalog designs

Site outline area 0.005 mm² — higher than 4% of catalog designs and 74% of its family
Neural interface volume
0.18 mm³
0.149 mm³17.19 mm³

Top 98% of catalog designs

Neural interface volume 0.18 mm³ — higher than 2% of catalog designs and 47% of its family
Site coverage density
749.6 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 20% of catalog designs

Site coverage density 749.6 sites/mm² — higher than 80% of catalog designs and 32% of its family
Brain coverage density
22.22 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 85% of catalog designs

Brain coverage density 22.22 sites/mm³ — higher than 15% of catalog designs and 58% of its family
Linear Single-Shank 4-Channel Probe, 10 mmSKU prb_qtr--q1x4_10mm_50_703

6 notes · Isolation, bought with coverage · Site area is the isolation variable · Naming …

Linear Single-Shank 4-Channel Probe, 10 mmSKU prb_qtr--q1x4_10mm_50_703

5 downloads · 15 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · How an Electrode Records Neural Activity …

Linear Single-Shank 4-Channel Probe, 10 mmSKU prb_qtr--q1x4_10mm_50_703

Cited in 2,342 publications (product line)
