Neural Probes · Q-Trode Series

Linear Single-Shank 4-Channel Probe, 18 mm

4Sites
1Shanks
18mmShank Length
100µmSite Pitch
Part no.Q1x4-18mm-100-177
Contact us to order
Contents

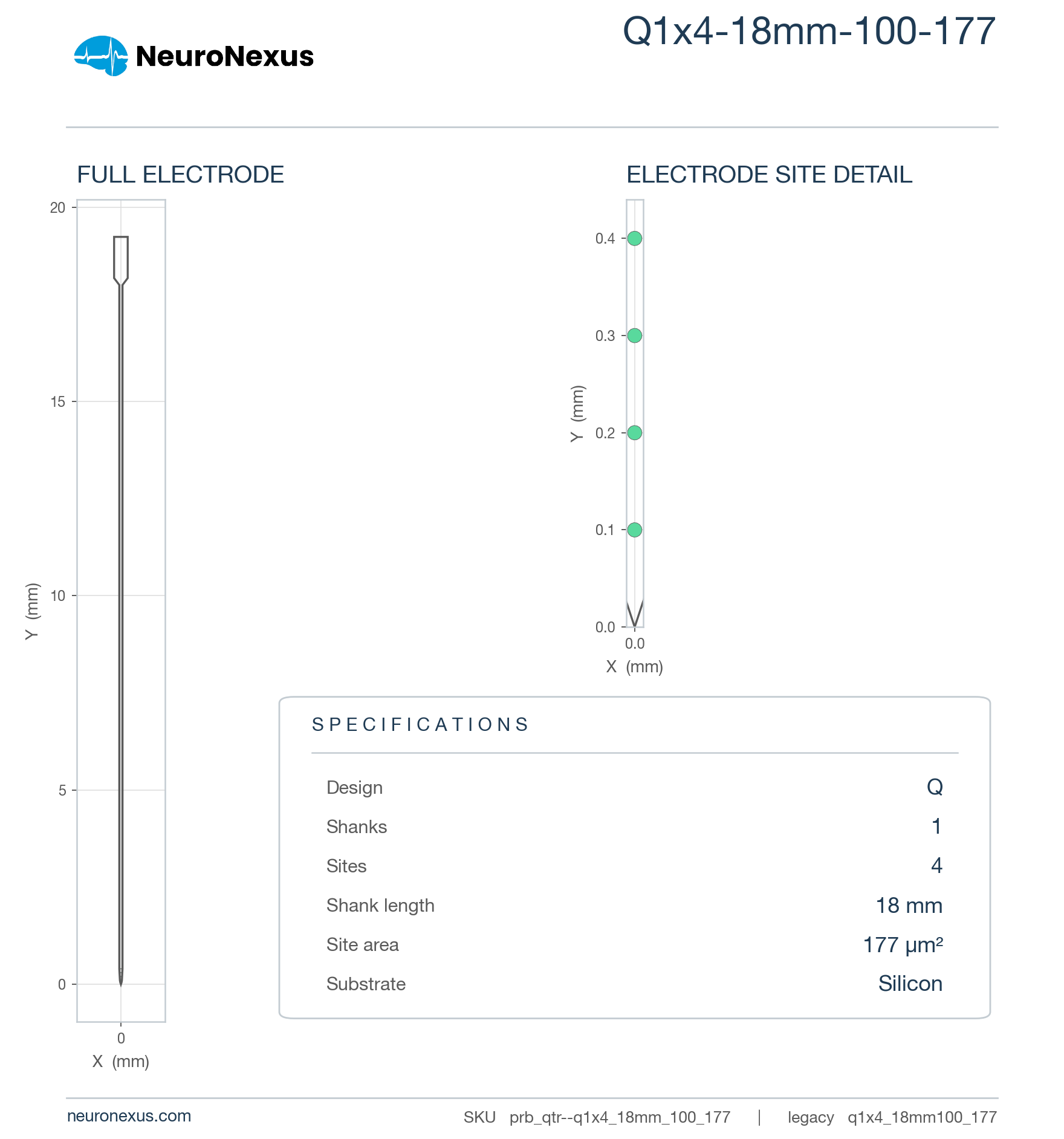

4-site Q-Trode probe, 18 mm, 177 µm², 100 µm pitch, 50 µm thick

A single long shank with sites spread evenly down the shank, one per row, for a profile across depth. Among the 369 probe designs in the design space it is in the lower quartile: 4 sites (5th percentile), 18 mm shanks (99th percentile of the 366 measured), a 0.31 mm-deep site array (17th percentile), 857 sites/mm² (83rd percentile) and a 0.21 mm³ neural interface (4th percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, spaced for a laminar profile. The long shank reaches deep targets.

Orders as a probe-plus-package assembly, in 3 package configurations. Silicon 50 µm thick. Z-coat available. Research use only.

Also known as

q1x4_18mm100_177

Linear Single-Shank 4-Channel Probe, 18 mmSKU prb_qtr--q1x4_18mm_100_177

12 specs

Channels4
Shanks1
Shank length18 mm
Site area177 µm²
Site pitch100 µm
Vertical span315 µm
SubstrateSilicon
Site materialIridium
Thickness50 µm
Neural interface volume0.210 mm³ (higher than 4% of 369 designs)
Site coverage density857.3 sites/mm² (higher than 83% of 369 designs)
Brain coverage density19.1 sites/mm³ (higher than 11% of 369 designs)
Linear Single-Shank 4-Channel Probe, 18 mmSKU prb_qtr--q1x4_18mm_100_177

Narrow the options with the filters or pick a card, then contact us to order that configuration.

3 options

Configure

Compatible Package
All
CQ4 — 4-ch Mill-Max
HQ4 (21 mm cable) — 4-ch Mill-Max
Q4 — 4-ch

Your selection

4-channel single-shank silicon probe, 18 mm — 50 μm, CQ4
CQ4
Compatible Package: CQ4 — 4-ch Mill-Max
SKUprb_qtr--q1x4_18mm_100_177.50um.cq4

Options

3 of 3
Linear Single-Shank 4-Channel Probe, 18 mmSKU prb_qtr--q1x4_18mm_100_177

Loading the compatible products…

Linear Single-Shank 4-Channel Probe, 18 mmSKU prb_qtr--q1x4_18mm_100_177

12 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
4
41024

Top 95% of catalog designs · largest in its family

Sites 4 — higher than 5% of catalog designs and 100% of its family (the largest in its family, 19 designs)
Shanks
1
116

Top 58% of catalog designs · largest in its family

Shanks 1 — higher than 42% of catalog designs and 100% of its family (the largest in its family, 19 designs)
Shank length
18 mm
1 mm60 mm

Top 1% of catalog designs · largest in its family

Shank length 18 mm — higher than 99% of catalog designs and 100% of its family (the largest in its family, 19 designs)
Maximum site depth
17.91 mm
0.972 mm51.29 mm

Top 1% of catalog designs

Maximum site depth 17.91 mm — higher than 99% of catalog designs and 95% of its family
Minimum site depth
17.59 mm
0.067 mm44.74 mm

Top 1% of catalog designs

Minimum site depth 17.59 mm — higher than 99% of catalog designs and 95% of its family
Span, x
0.015 mm
0.01 mm6.03 mm

Top 90% of catalog designs

Span, x 0.015 mm — higher than 10% of catalog designs and 53% of its family
Span, y
0.315 mm
0.01 mm10.55 mm

Top 83% of catalog designs

Span, y 0.315 mm — higher than 17% of catalog designs and 74% of its family
Site pitch, y
0.1 µm
0.01 µm1.5 µm

Top 17% of catalog designs

Site pitch, y 0.1 µm — higher than 83% of catalog designs and 84% of its family
Site outline area
0.005 mm²
0.002 mm²28.74 mm²

Top 97% of catalog designs

Site outline area 0.005 mm² — higher than 3% of catalog designs and 63% of its family
Neural interface volume
0.21 mm³
0.149 mm³17.19 mm³

Top 96% of catalog designs

Neural interface volume 0.21 mm³ — higher than 4% of catalog designs and 74% of its family
Site coverage density
857.3 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 17% of catalog designs

Site coverage density 857.3 sites/mm² — higher than 83% of catalog designs and 53% of its family
Brain coverage density
19.07 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 89% of catalog designs

Brain coverage density 19.07 sites/mm³ — higher than 11% of catalog designs and 42% of its family
Linear Single-Shank 4-Channel Probe, 18 mmSKU prb_qtr--q1x4_18mm_100_177

3 notes · Geometry · Construction · Packaging and connector options

Linear Single-Shank 4-Channel Probe, 18 mmSKU prb_qtr--q1x4_18mm_100_177

5 downloads · 15 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · How an Electrode Records Neural Activity …

Linear Single-Shank 4-Channel Probe, 18 mmSKU prb_qtr--q1x4_18mm_100_177

Cited in 2,342 publications (product line)
