Linear Single-Shank 4-Channel Probe, 18 mm

4Sites
1Shanks
18mmShank Length
200µmSite Pitch
Part no.Q1x4-18mm-200-703
Contact us to order
Contents

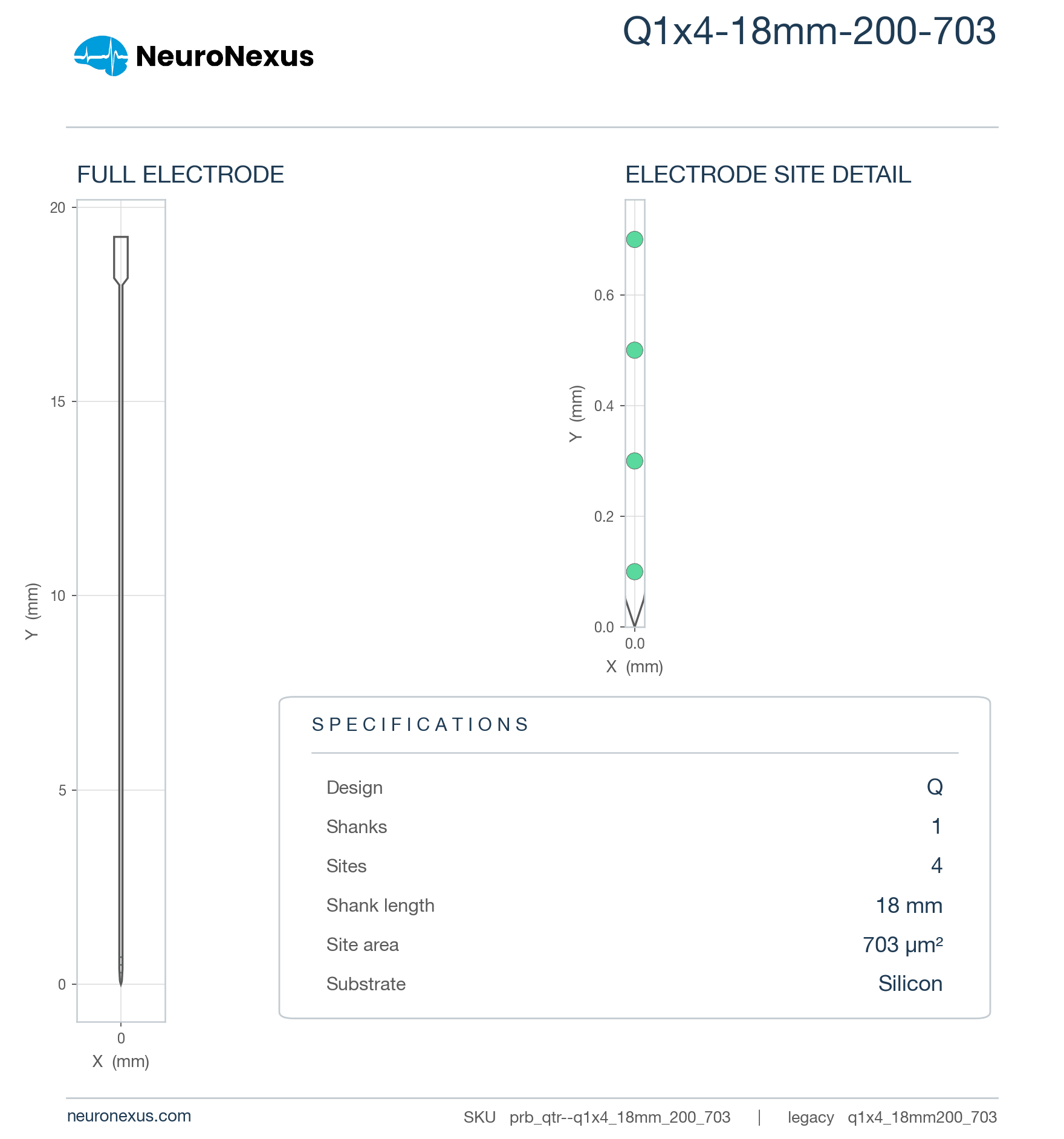

4-site Q-Trode probe, 18 mm, 703 µm²

A single long shank with sites spread evenly down the shank, one per row, for a profile across depth. Among the 369 probe designs in the design space it is mid-range: 4 sites (5th percentile), 18 mm shanks (99th percentile of the 366 measured), a 0.63 mm-deep site array (34th percentile), 214 sites/mm² (48th percentile) and a 0.3 mm³ neural interface (12th percentile).

Large sites read a wider patch at lower impedance, suited to field potentials and multi-unit activity, spaced widely to span a structure rather than resolve within it. The long shank reaches deep targets.

Orders as a probe-plus-package assembly, in 2 package configurations. Silicon 50 µm thick. Z-coat available. Research use only.

Also known as

q1x4_18mm200_703

Linear Single-Shank 4-Channel Probe, 18 mmSKU prb_qtr--q1x4_18mm_200_703

12 specs

Channels4
Shanks1
Shank length18 mm
Site area703 µm²
Site pitch200 µm
Vertical span630 µm
SubstrateSilicon
Site materialIridium
Thickness50 µm
Neural interface volume0.299 mm³ (higher than 12% of 369 designs)
Site coverage density214.0 sites/mm² (higher than 48% of 369 designs)
Brain coverage density13.4 sites/mm³ (higher than 5% of 369 designs)
Linear Single-Shank 4-Channel Probe, 18 mmSKU prb_qtr--q1x4_18mm_200_703

Narrow the options with the filters or pick a card, then contact us to order that configuration.

2 options

Configure

Compatible Package
All
HQ4 (21 mm cable) — 4-ch Mill-Max
Q4 — 4-ch

Your selection

4-channel single-shank silicon probe, 18 mm — 50 μm, HQ4_CL21MM
HQ4_CL21MM
Compatible Package: HQ4 (21 mm cable) — 4-ch Mill-Max
SKUprb_qtr--q1x4_18mm_200_703.50um.hq4_cl21mm

Options

2 of 2
Linear Single-Shank 4-Channel Probe, 18 mmSKU prb_qtr--q1x4_18mm_200_703

Loading the compatible products…

Linear Single-Shank 4-Channel Probe, 18 mmSKU prb_qtr--q1x4_18mm_200_703

12 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
4
41024

Top 95% of catalog designs · largest in its family

Sites 4 — higher than 5% of catalog designs and 100% of its family (the largest in its family, 19 designs)
Shanks
1
116

Top 58% of catalog designs · largest in its family

Shanks 1 — higher than 42% of catalog designs and 100% of its family (the largest in its family, 19 designs)
Shank length
18 mm
1 mm60 mm

Top 1% of catalog designs · largest in its family

Shank length 18 mm — higher than 99% of catalog designs and 100% of its family (the largest in its family, 19 designs)
Maximum site depth
17.91 mm
0.972 mm51.29 mm

Top 1% of catalog designs · largest in its family

Maximum site depth 17.91 mm — higher than 99% of catalog designs and 100% of its family (the largest in its family, 19 designs)
Minimum site depth
17.29 mm
0.067 mm44.74 mm

Top 2% of catalog designs

Minimum site depth 17.29 mm — higher than 98% of catalog designs and 84% of its family
Span, x
0.03 mm
0.01 mm6.03 mm

Top 73% of catalog designs

Span, x 0.03 mm — higher than 27% of catalog designs and 74% of its family
Span, y
0.63 mm
0.01 mm10.55 mm

Top 66% of catalog designs · largest in its family

Span, y 0.63 mm — higher than 34% of catalog designs and 100% of its family (the largest in its family, 19 designs)
Site pitch, y
0.2 µm
0.01 µm1.5 µm

Top 4% of catalog designs · largest in its family

Site pitch, y 0.2 µm — higher than 96% of catalog designs and 100% of its family (the largest in its family, 19 designs)
Site outline area
0.019 mm²
0.002 mm²28.74 mm²

Top 88% of catalog designs · largest in its family

Site outline area 0.019 mm² — higher than 12% of catalog designs and 100% of its family (the largest in its family, 19 designs)
Neural interface volume
0.299 mm³
0.149 mm³17.19 mm³

Top 88% of catalog designs · largest in its family

Neural interface volume 0.299 mm³ — higher than 12% of catalog designs and 100% of its family (the largest in its family, 19 designs)
Site coverage density
214 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 52% of catalog designs

Site coverage density 214 sites/mm² — higher than 48% of catalog designs and 5% of its family
Brain coverage density
13.37 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 95% of catalog designs

Brain coverage density 13.37 sites/mm³ — higher than 5% of catalog designs and 5% of its family
Linear Single-Shank 4-Channel Probe, 18 mmSKU prb_qtr--q1x4_18mm_200_703

3 notes · Geometry · Construction · Packaging and connector options

Linear Single-Shank 4-Channel Probe, 18 mmSKU prb_qtr--q1x4_18mm_200_703

5 downloads · 15 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · How an Electrode Records Neural Activity …
