4-site Q-Trode probe, 18 mm, 177 µm², 50 µm pitch
A single long shank with sites spread evenly down the shank, one per row, for a profile across depth. Among the 369 probe designs in the design space it sits at the bottom: 4 sites (5th percentile), 18 mm shanks (99th percentile of the 366 measured), a 0.16 mm-deep site array (9th percentile), 1,637 sites/mm² (93rd percentile) and a 0.17 mm³ neural interface (2nd percentile).
Small sites read a local patch at higher impedance, sharpening single-unit isolation, spaced for a laminar profile. The long shank reaches deep targets.
Orders as a probe-plus-package assembly, in 1 package configuration. Silicon 50 µm thick. Z-coat available. Research use only.

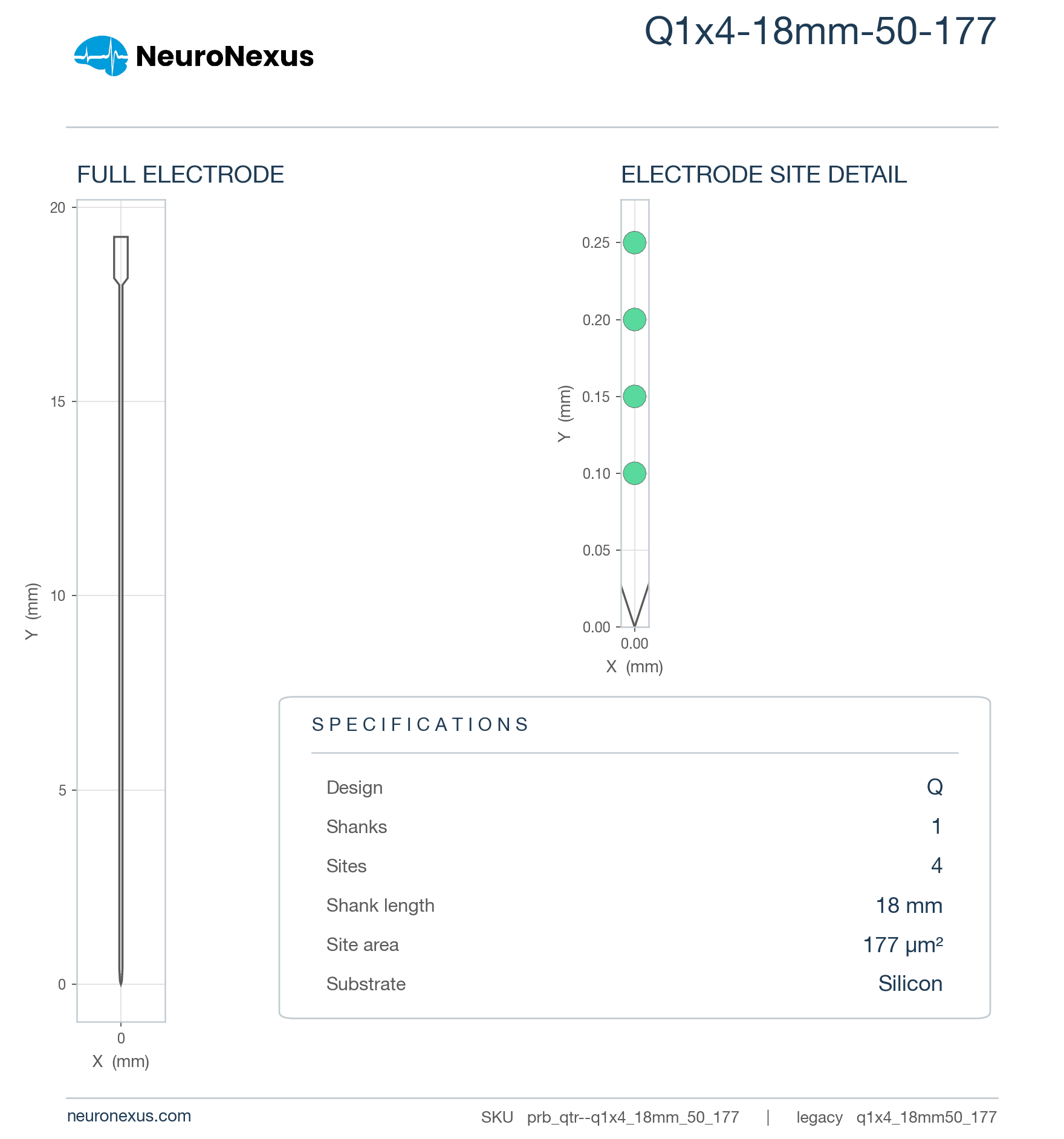

q1x4_18mm50_177
12 specs
| Channels | 4 |
|---|---|
| Shanks | 1 |
| Shank length | 18 mm |
| Site area | 177 µm² |
| Site pitch | 50 µm |
| Vertical span | 165 µm |
| Substrate | Silicon |
| Site material | Iridium |
| Thickness | 50 µm |
| Neural interface volume | 0.171 mm³ (higher than 2% of 369 designs) |
| Site coverage density | 1,637.2 sites/mm² (higher than 93% of 369 designs) |
| Brain coverage density | 23.4 sites/mm³ (higher than 17% of 369 designs) |
