Linear Single-Shank 4-Channel Probe, 3 mm

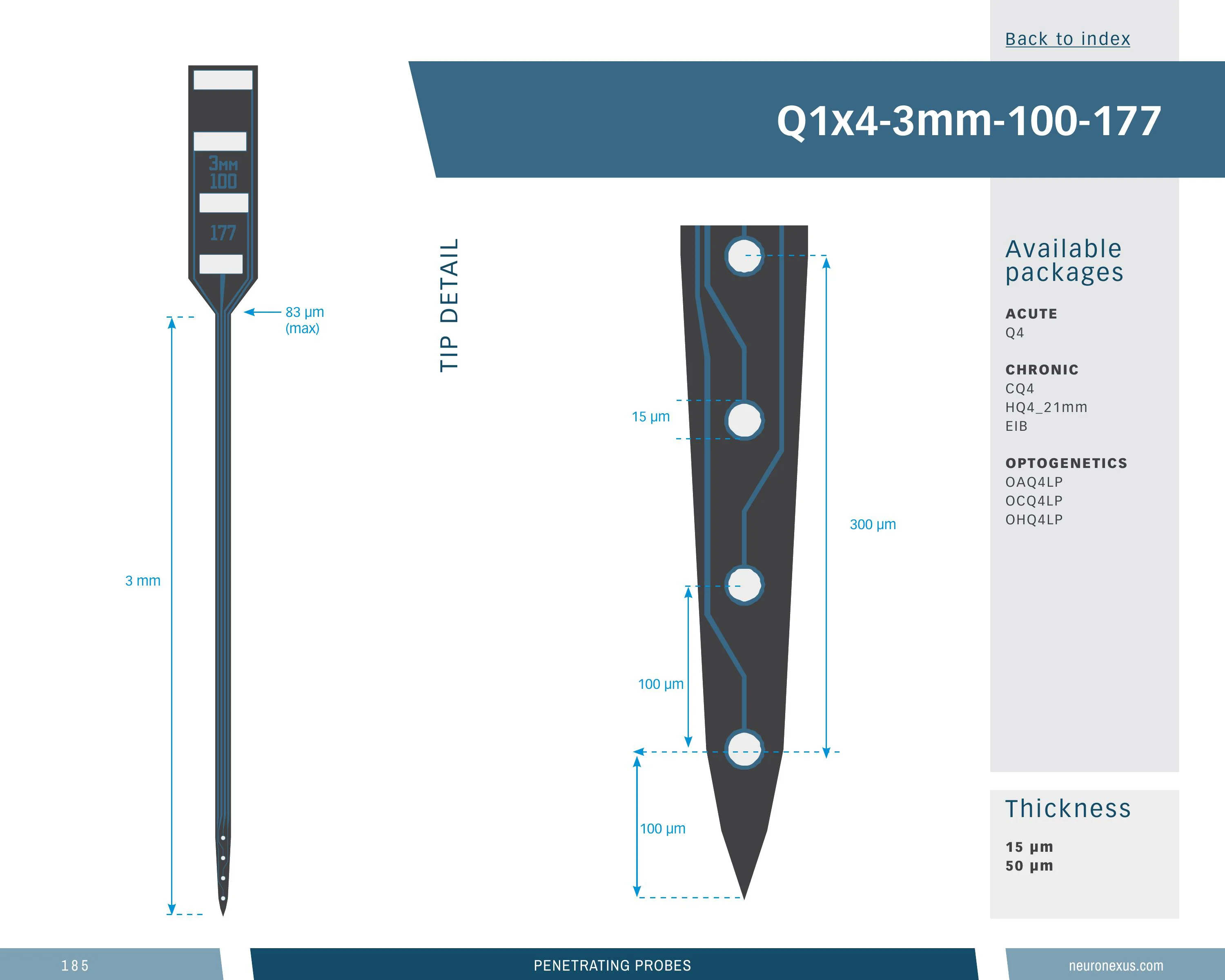

4-site Q-Trode probe, 3 mm, 177 µm², 100 µm pitch
A single short shank with sites spread evenly down the shank, one per row, for a profile across depth. Among the 369 probe designs in the design space it is in the lower quartile: 4 sites (5th percentile), 3 mm shanks (a common choice — 39 of 366), a 0.31 mm-deep site array (16th percentile), 958 sites/mm² (86th percentile) and a 0.21 mm³ neural interface (3rd percentile).
Small sites read a local patch at higher impedance, sharpening single-unit isolation, spaced for a laminar profile. The short shank suits superficial targets.
Orders as a probe-plus-package assembly, in 15 package configurations. Silicon 15 or 50 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.
q1x4_3mm_100_177
12 specs
| Channels | 4 |
|---|---|
| Shanks | 1 |
| Shank length | 3 mm |
| Site area | 177 µm² |
| Site pitch | 100 µm |
| Vertical span | 313 µm |
| Substrate | Silicon |
| Site material | Iridium |
| Thickness | 15, 50 µm |
| Neural interface volume | 0.209 mm³ (higher than 3% of 369 designs) |
| Site coverage density | 958.4 sites/mm² (higher than 86% of 369 designs) |
| Brain coverage density | 19.2 sites/mm³ (higher than 12% of 369 designs) |
Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.
30 options
Configure
Your selection
4-channel single-shank silicon probe, 3 mm — 15 μm, CQ4
CQ4Options
30 of 3015 μm · CQ4 — 4-ch Mill-Max
15 μm · CQ4MCS — 4-ch
15 μm · CQ4_T
15 μm · EIB — 4-ch
15 μm · EIBH_21MM — 4-ch
15 μm · HQ4 (10 mm cable) — 4-ch Mill-Max
15 μm · HQ4 (21 mm cable) — 4-ch Mill-Max
15 μm · HQ4 (5 mm cable) — 4-ch Mill-Max
15 μm · HQ4MCS — 4-ch Mill-Max
15 μm · HQ4 (21 mm cable) — 4-ch Mill-Max
15 μm · OAQ4LP — 4-ch
15 μm · OCQ4LP — 4-ch Mill-Max
15 μm · Q4 — 4-ch
50 μm · CQ4 — 4-ch Mill-Max
50 μm · CQ4MCS — 4-ch
50 μm · CQ4_T
50 μm · EIB — 4-ch
50 μm · EIBH_21MM — 4-ch
50 μm · HQ4 (10 mm cable) — 4-ch Mill-Max
50 μm · HQ4 (21 mm cable) — 4-ch Mill-Max
50 μm · HQ4 (5 mm cable) — 4-ch Mill-Max
50 μm · HQ4MCS — 4-ch Mill-Max
50 μm · HQ4 (21 mm cable) — 4-ch Mill-Max
50 μm · OAQ4LP — 4-ch
50 μm · OCQ4LP — 4-ch Mill-Max
50 μm · Q4 — 4-ch
15 μm · CM16LP — 16-ch Omnetics
50 μm · CM16LP — 16-ch Omnetics
15 μm · X3_16 — 16-ch Molex
50 μm · X3_16 — 16-ch Molex
Loading the compatible products…
12 metrics
Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.
Top 95% of catalog designs · largest in its family
Sites 4 — higher than 5% of catalog designs and 100% of its family (the largest in its family, 19 designs)Top 58% of catalog designs · largest in its family
Shanks 1 — higher than 42% of catalog designs and 100% of its family (the largest in its family, 19 designs)Top 80% of catalog designs
Shank length 3 mm — higher than 20% of catalog designs and 21% of its familyTop 90% of catalog designs
Maximum site depth 2.91 mm — higher than 10% of catalog designs and 11% of its familyTop 80% of catalog designs
Minimum site depth 2.59 mm — higher than 20% of catalog designs and 5% of its familyTop 93% of catalog designs
Span, x 0.013 mm — higher than 7% of catalog designs and 5% of its familyTop 84% of catalog designs
Span, y 0.313 mm — higher than 16% of catalog designs and 58% of its familyTop 17% of catalog designs
Site pitch, y 0.1 µm — higher than 83% of catalog designs and 84% of its familyTop 98% of catalog designs
Site outline area 0.004 mm² — higher than 2% of catalog designs and 47% of its familyTop 97% of catalog designs
Neural interface volume 0.209 mm³ — higher than 3% of catalog designs and 58% of its familyTop 14% of catalog designs
Site coverage density 958.4 sites/mm² — higher than 86% of catalog designs and 58% of its familyTop 88% of catalog designs
Brain coverage density 19.16 sites/mm³ — higher than 12% of catalog designs and 47% of its family6 notes · Isolation, bought with coverage · Site area is the isolation variable · Naming …
