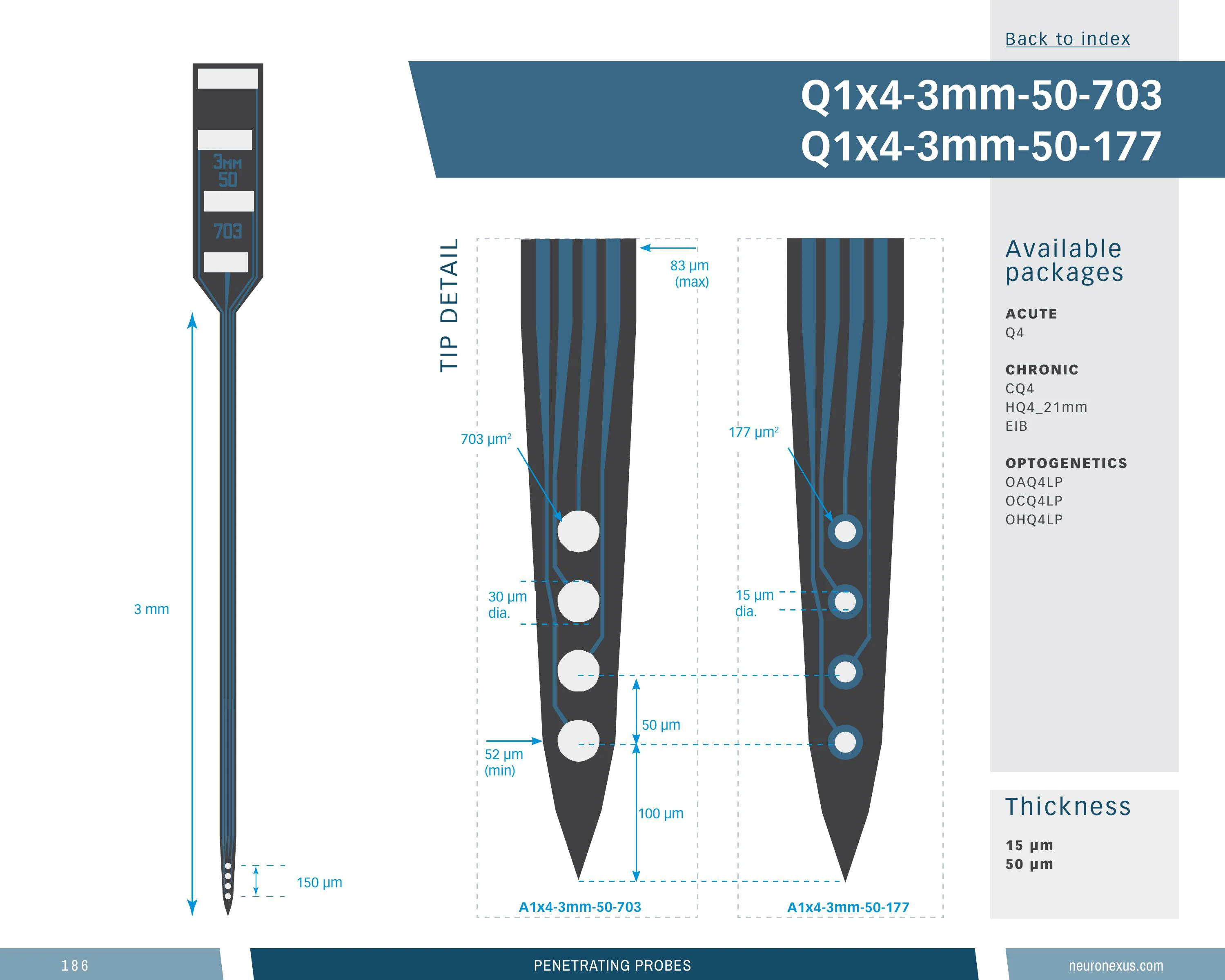

Linear Single-Shank 4-Channel Probe, 3 mm
4-site Q-Trode probe, 3 mm, 703 µm²
A single short shank with sites spread evenly down the shank, one per row, for a profile across depth. Among the 369 probe designs in the design space it sits at the bottom: 4 sites (5th percentile), 3 mm shanks (a common choice — 39 of 366), a 0.18 mm-deep site array (11th percentile), 748 sites/mm² (79th percentile) and a 0.18 mm³ neural interface (3rd percentile).
Large sites read a wider patch at lower impedance, suited to field potentials and multi-unit activity, spaced for a laminar profile. The short shank suits superficial targets.
Orders as a probe-plus-package assembly, in 11 package configurations. Silicon 15 or 50 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.
q1x4_3mm_50_703
12 specs
| Channels | 4 |
|---|---|
| Shanks | 1 |
| Shank length | 3 mm |
| Site area | 703 µm² |
| Site pitch | 50 µm |
| Vertical span | 180 µm |
| Substrate | Silicon |
| Site material | Iridium |
| Thickness | 15, 50 µm |
| Neural interface volume | 0.180 mm³ (higher than 3% of 369 designs) |
| Site coverage density | 747.9 sites/mm² (higher than 79% of 369 designs) |
| Brain coverage density | 22.2 sites/mm³ (higher than 15% of 369 designs) |
Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.
22 options
Configure
Your selection
4-channel single-shank silicon probe, 3 mm — 15 μm, CM16LP
CM16LPOptions
22 of 2215 μm · CM16LP — 16-ch Omnetics
15 μm · CQ4 — 4-ch Mill-Max
15 μm · OCQ4LP — 4-ch Mill-Max
15 μm · X3_16 — 16-ch Molex
50 μm · CM16LP — 16-ch Omnetics
50 μm · CQ4 — 4-ch Mill-Max
50 μm · OCQ4LP — 4-ch Mill-Max
50 μm · X3_16 — 16-ch Molex
15 μm · CQ4MCS — 4-ch
50 μm · CQ4MCS — 4-ch
15 μm · HQ4MCS — 4-ch Mill-Max
50 μm · HQ4MCS — 4-ch Mill-Max
15 μm · OAQ4LP — 4-ch
50 μm · OAQ4LP — 4-ch
15 μm · Q4 — 4-ch
50 μm · Q4 — 4-ch
15 μm · EIB — 4-ch
50 μm · EIB — 4-ch
15 μm · EIBH_21MM — 4-ch
50 μm · EIBH_21MM — 4-ch
15 μm · HQ4 — 4-ch Mill-Max
50 μm · HQ4 — 4-ch Mill-Max
Loading the compatible products…
12 metrics
Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.
Top 95% of catalog designs · largest in its family
Sites 4 — higher than 5% of catalog designs and 100% of its family (the largest in its family, 19 designs)Top 58% of catalog designs · largest in its family
Shanks 1 — higher than 42% of catalog designs and 100% of its family (the largest in its family, 19 designs)Top 80% of catalog designs
Shank length 3 mm — higher than 20% of catalog designs and 21% of its familyTop 90% of catalog designs
Maximum site depth 2.91 mm — higher than 10% of catalog designs and 21% of its familyTop 77% of catalog designs
Minimum site depth 2.74 mm — higher than 23% of catalog designs and 11% of its familyTop 72% of catalog designs
Span, x 0.03 mm — higher than 28% of catalog designs and 79% of its familyTop 89% of catalog designs
Span, y 0.18 mm — higher than 11% of catalog designs and 53% of its familyTop 44% of catalog designs
Site pitch, y 0.05 µm — higher than 56% of catalog designs and 53% of its familyTop 96% of catalog designs
Site outline area 0.005 mm² — higher than 4% of catalog designs and 79% of its familyTop 97% of catalog designs
Neural interface volume 0.18 mm³ — higher than 3% of catalog designs and 53% of its familyTop 21% of catalog designs
Site coverage density 747.9 sites/mm² — higher than 79% of catalog designs and 26% of its familyTop 85% of catalog designs
Brain coverage density 22.21 sites/mm³ — higher than 15% of catalog designs and 53% of its family6 notes · Isolation, bought with coverage · Site area is the isolation variable · Naming …
