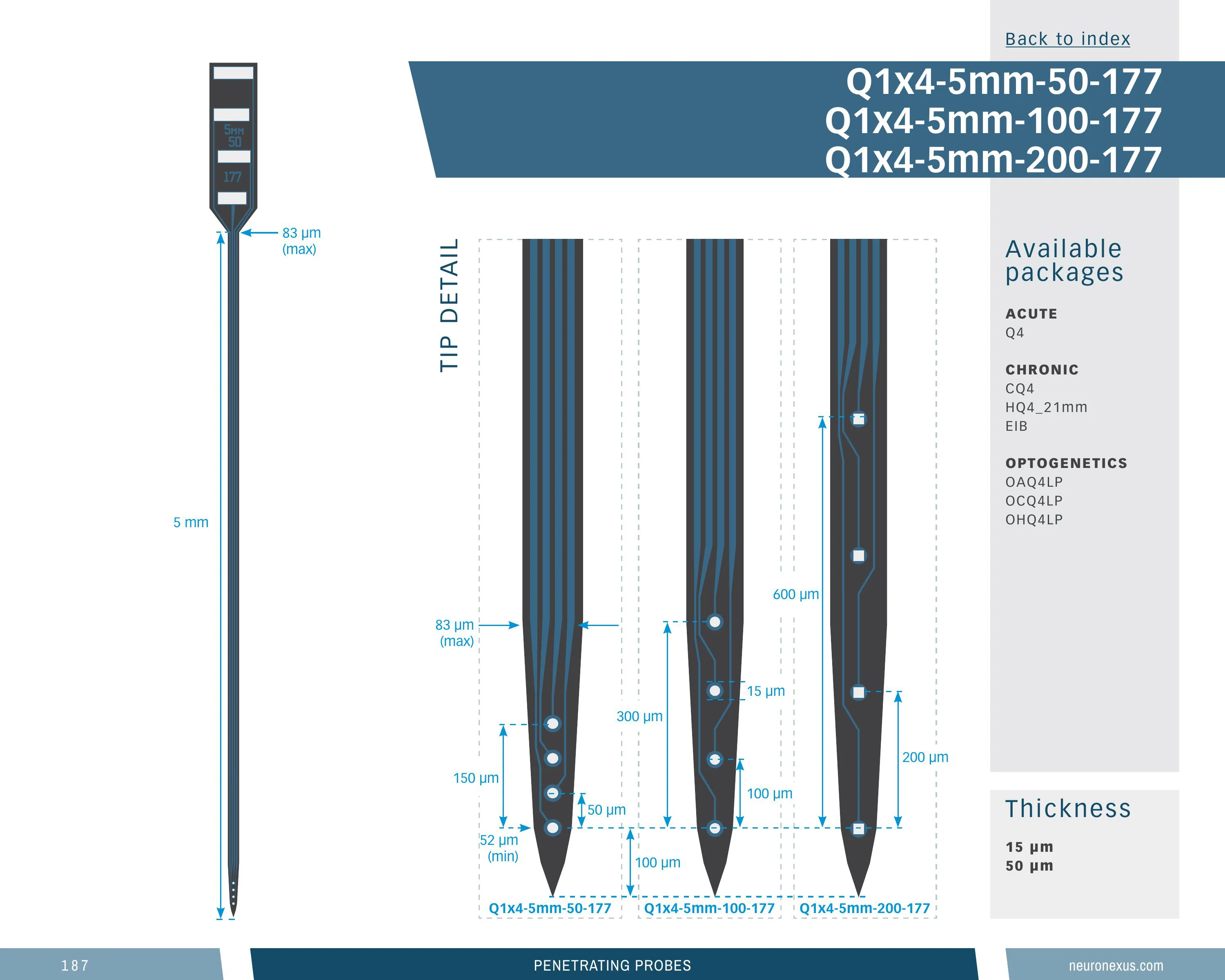

Linear Single-Shank 4-Channel Probe, 5 mm
4-site Q-Trode probe, 5 mm, 177 µm², 100 µm pitch
A single mid-length shank with sites spread evenly down the shank, one per row, for a profile across depth. Among the 369 probe designs in the design space it is in the lower quartile: 4 sites (5th percentile), 5 mm shanks (a common choice — 108 of 366), a 0.31 mm-deep site array (17th percentile), 857 sites/mm² (83rd percentile) and a 0.21 mm³ neural interface (4th percentile).
Small sites read a local patch at higher impedance, sharpening single-unit isolation, spaced for a laminar profile. The mid-length shank reaches structures a few millimetres down.
Orders as a probe-plus-package assembly, in 16 package configurations. Silicon 15 or 50 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.
q1x4_5mm_100_177 · q1x4
12 specs
| Channels | 4 |
|---|---|
| Shanks | 1 |
| Shank length | 5 mm |
| Site area | 177 µm² |
| Site pitch | 100 µm |
| Vertical span | 315 µm |
| Substrate | Silicon |
| Site material | Iridium |
| Thickness | 15, 50 µm |
| Neural interface volume | 0.210 mm³ (higher than 4% of 369 designs) |
| Site coverage density | 857.3 sites/mm² (higher than 83% of 369 designs) |
| Brain coverage density | 19.1 sites/mm³ (higher than 11% of 369 designs) |
Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.
31 options
Configure
Your selection
4-channel single-shank silicon probe, 5 mm — 15 μm, CQ4
CQ4Options
31 of 3115 μm · CQ4 — 4-ch Mill-Max
15 μm · CQ4MCS — 4-ch
15 μm · CQ4_T
15 μm · EIB — 4-ch
15 μm · EIBH_21MM — 4-ch
15 μm · HQ4 (10 mm cable) — 4-ch Mill-Max
15 μm · HQ4 (21 mm cable) — 4-ch Mill-Max
15 μm · HQ4 (5 mm cable) — 4-ch Mill-Max
15 μm · HQ4MCS — 4-ch Mill-Max
15 μm · HQ4 (21 mm cable) — 4-ch Mill-Max
15 μm · OAQ4LP — 4-ch
15 μm · OCQ4LP — 4-ch Mill-Max
15 μm · Q4 — 4-ch
50 μm · CQ4 — 4-ch Mill-Max
50 μm · CQ4MCS — 4-ch
50 μm · CQ4_T
50 μm · EIB — 4-ch
50 μm · EIBH_21MM — 4-ch
50 μm · HQ4 (10 mm cable) — 4-ch Mill-Max
50 μm · HQ4 (21 mm cable) — 4-ch Mill-Max
50 μm · HQ4 (5 mm cable) — 4-ch Mill-Max
50 μm · HQ4MCS — 4-ch Mill-Max
50 μm · HQ4 (21 mm cable) — 4-ch Mill-Max
50 μm · OAQ4LP — 4-ch
50 μm · OCQ4LP — 4-ch Mill-Max
50 μm · Q4 — 4-ch
4-channel single-shank silicon probe, 5 mm
15 μm · CM16LP — 16-ch Omnetics
50 μm · CM16LP — 16-ch Omnetics
15 μm · X3_16 — 16-ch Molex
50 μm · X3_16 — 16-ch Molex
Loading the compatible products…
12 metrics
Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.
Top 95% of catalog designs · largest in its family
Sites 4 — higher than 5% of catalog designs and 100% of its family (the largest in its family, 19 designs)Top 58% of catalog designs · largest in its family
Shanks 1 — higher than 42% of catalog designs and 100% of its family (the largest in its family, 19 designs)Top 48% of catalog designs
Shank length 5 mm — higher than 52% of catalog designs and 42% of its familyTop 76% of catalog designs
Maximum site depth 4.91 mm — higher than 24% of catalog designs and 42% of its familyTop 45% of catalog designs
Minimum site depth 4.59 mm — higher than 55% of catalog designs and 32% of its familyTop 90% of catalog designs
Span, x 0.015 mm — higher than 10% of catalog designs and 53% of its familyTop 83% of catalog designs
Span, y 0.315 mm — higher than 17% of catalog designs and 74% of its familyTop 17% of catalog designs
Site pitch, y 0.1 µm — higher than 83% of catalog designs and 84% of its familyTop 97% of catalog designs
Site outline area 0.005 mm² — higher than 3% of catalog designs and 63% of its familyTop 96% of catalog designs
Neural interface volume 0.21 mm³ — higher than 4% of catalog designs and 74% of its familyTop 17% of catalog designs
Site coverage density 857.3 sites/mm² — higher than 83% of catalog designs and 53% of its familyTop 89% of catalog designs
Brain coverage density 19.07 sites/mm³ — higher than 11% of catalog designs and 42% of its family6 notes · Isolation, bought with coverage · Site area is the isolation variable · Naming …
5 downloads · 15 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · How an Electrode Records Neural Activity …
Cited in 2,342 publications (product line)
