Neural Probes · Q-Trode Series

Linear Single-Shank 4-Channel Probe, 5 mm

4Sites
1Shanks
5mmShank Length
50µmSite Pitch
Part no.Q1x4-5mm-50-177
Contents

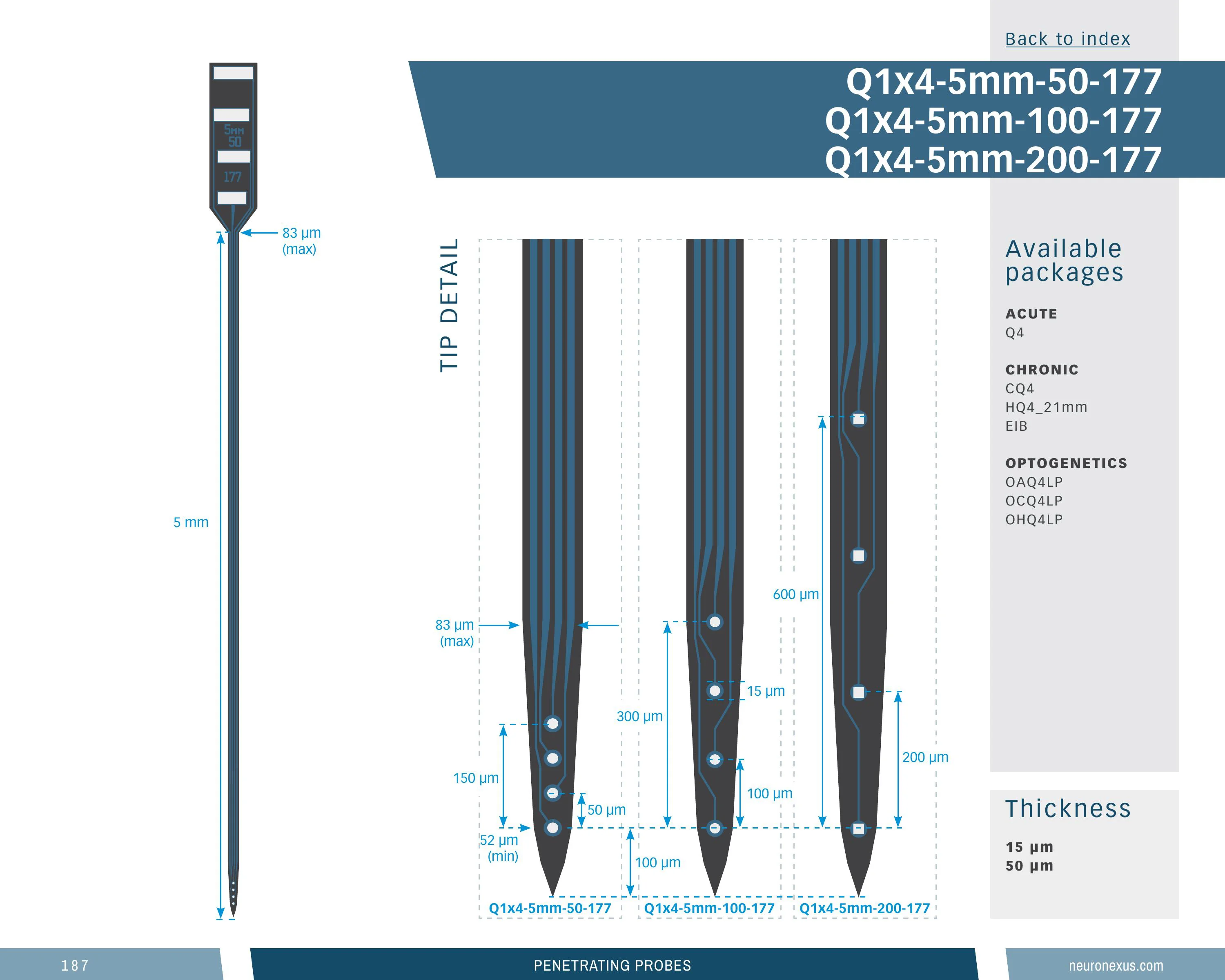

4-site Q-Trode probe, 5 mm, 177 µm², 50 µm pitch

A single mid-length shank with sites spread evenly down the shank, one per row, for a profile across depth. Among the 369 probe designs in the design space it sits at the bottom: 4 sites (5th percentile), 5 mm shanks (a common choice — 108 of 366), a 0.16 mm-deep site array (9th percentile), 1,637 sites/mm² (93rd percentile) and a 0.17 mm³ neural interface (2nd percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, spaced for a laminar profile. The mid-length shank reaches structures a few millimetres down.

Orders as a probe-plus-package assembly, in 15 package configurations. Silicon 15 or 50 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

q1x4_5mm_50_177

Linear Single-Shank 4-Channel Probe, 5 mmSKU prb_qtr--q1x4_5mm_50_177

12 specs

Channels4
Shanks1
Shank length5 mm
Site area177 µm²
Site pitch50 µm
Vertical span165 µm
SubstrateSilicon
Site materialIridium
Thickness15, 50 µm
Neural interface volume0.171 mm³ (higher than 2% of 369 designs)
Site coverage density1,637.2 sites/mm² (higher than 93% of 369 designs)
Brain coverage density23.4 sites/mm³ (higher than 17% of 369 designs)
Linear Single-Shank 4-Channel Probe, 5 mmSKU prb_qtr--q1x4_5mm_50_177

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

30 options

Configure

Substrate Thickness
All
15 μm
50 μm
Compatible Package
All
CM16LP — 16-ch Omnetics
CQ4 — 4-ch Mill-Max
CQ4_T
CQ4MCS — 4-ch
EIB — 4-ch
EIBH_21MM — 4-ch
HQ4 (10 mm cable) — 4-ch Mill-Max
HQ4 (21 mm cable) — 4-ch Mill-Max
HQ4 (5 mm cable) — 4-ch Mill-Max
HQ4MCS — 4-ch Mill-Max
HQ4 (21 mm cable) — 4-ch Mill-Max
OAQ4LP — 4-ch
OCQ4LP — 4-ch Mill-Max
Q4 — 4-ch
X3_16 — 16-ch Molex

Your selection

4-channel single-shank silicon probe, 5 mm — 15 μm, CQ4
CQ4
Substrate Thickness: 15 μm
Compatible Package: CQ4 — 4-ch Mill-Max
SKUprb_qtr--q1x4_5mm_50_177.15um.cq4
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

30 of 30
Linear Single-Shank 4-Channel Probe, 5 mmSKU prb_qtr--q1x4_5mm_50_177

Loading the compatible products…

Linear Single-Shank 4-Channel Probe, 5 mmSKU prb_qtr--q1x4_5mm_50_177

12 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
4
41024

Top 95% of catalog designs · largest in its family

Sites 4 — higher than 5% of catalog designs and 100% of its family (the largest in its family, 19 designs)
Shanks
1
116

Top 58% of catalog designs · largest in its family

Shanks 1 — higher than 42% of catalog designs and 100% of its family (the largest in its family, 19 designs)
Shank length
5 mm
1 mm60 mm

Top 48% of catalog designs

Shank length 5 mm — higher than 52% of catalog designs and 42% of its family
Maximum site depth
4.91 mm
0.972 mm51.29 mm

Top 76% of catalog designs

Maximum site depth 4.91 mm — higher than 24% of catalog designs and 42% of its family
Minimum site depth
4.74 mm
0.067 mm44.74 mm

Top 42% of catalog designs

Minimum site depth 4.74 mm — higher than 58% of catalog designs and 37% of its family
Span, x
0.015 mm
0.01 mm6.03 mm

Top 90% of catalog designs

Span, x 0.015 mm — higher than 10% of catalog designs and 53% of its family
Span, y
0.165 mm
0.01 mm10.55 mm

Top 91% of catalog designs

Span, y 0.165 mm — higher than 9% of catalog designs and 42% of its family
Site pitch, y
0.05 µm
0.01 µm1.5 µm

Top 44% of catalog designs

Site pitch, y 0.05 µm — higher than 56% of catalog designs and 53% of its family
Site outline area
0.002 mm²
0.002 mm²28.74 mm²

Top 98% of catalog designs

Site outline area 0.002 mm² — higher than 2% of catalog designs and 42% of its family
Neural interface volume
0.171 mm³
0.149 mm³17.19 mm³

Top 98% of catalog designs

Neural interface volume 0.171 mm³ — higher than 2% of catalog designs and 42% of its family
Site coverage density
1637.2 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 7% of catalog designs

Site coverage density 1637.2 sites/mm² — higher than 93% of catalog designs and 79% of its family
Brain coverage density
23.37 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 83% of catalog designs

Brain coverage density 23.37 sites/mm³ — higher than 17% of catalog designs and 79% of its family
Linear Single-Shank 4-Channel Probe, 5 mmSKU prb_qtr--q1x4_5mm_50_177

6 notes · Isolation, bought with coverage · Site area is the isolation variable · Naming …

Linear Single-Shank 4-Channel Probe, 5 mmSKU prb_qtr--q1x4_5mm_50_177

5 downloads · 15 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · How an Electrode Records Neural Activity …

Linear Single-Shank 4-Channel Probe, 5 mmSKU prb_qtr--q1x4_5mm_50_177

Cited in 2,342 publications (product line)
