Vector Single-Shank 16-Channel Probe, 10 mm

16Sites
1Shanks
10mmShank Length
100µmSite Pitch
Part no.V1x16-Edge-10mm-100-177
Contents

16-site Vector probe, 10 mm, 100 µm pitch

A single long shank with sites along the shank's edge, closest to the tissue the probe faces. Among the 369 probe designs in the design space it is mid-range: 16 sites (a common choice — 84 of 369), 10 mm shanks (a common choice — 80 of 366), a 1.51 mm-deep site array (70th percentile), 880 sites/mm² (84th percentile) and a 0.52 mm³ neural interface (33rd percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, spaced for a laminar profile. The long shank reaches deep targets.

Orders as a probe-plus-package assembly, in 9 package configurations, 1 of them microdrive-compatible. Silicon 50 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

v1x16_edge_10mm_100_177 · v1x16_edge_10mm_100_177_v1

Vector Single-Shank 16-Channel Probe, 10 mmSKU prb_vec--v1x16_edge_10mm_100_177

13 specs

Channels16
Shanks1

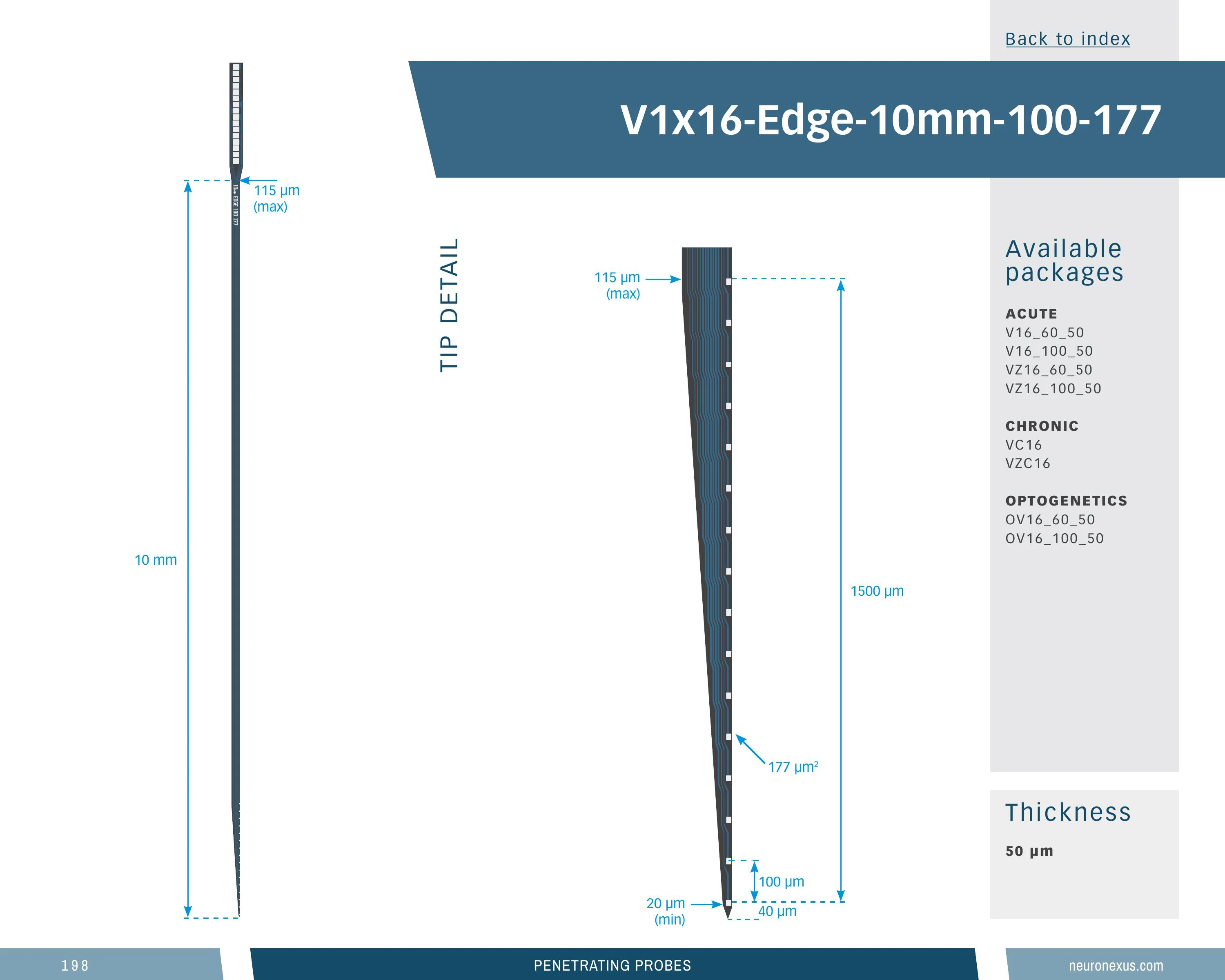

Shank length10 mm
Site layoutEdge
Site area177 µm²
Site pitch100 µm
Vertical span1515 µm
SubstrateSilicon
Site materialIridium
Thickness50 µm
Neural interface volume0.516 mm³ (higher than 33% of 369 designs)
Site coverage density880.1 sites/mm² (higher than 84% of 369 designs)
Brain coverage density31.0 sites/mm³ (higher than 30% of 369 designs)
