Neural Probes · Vector Array

Vector Single-Shank 16-Channel Probe, 10 mm

16Sites
1Shanks
10mmShank Length
25µmSite Pitch

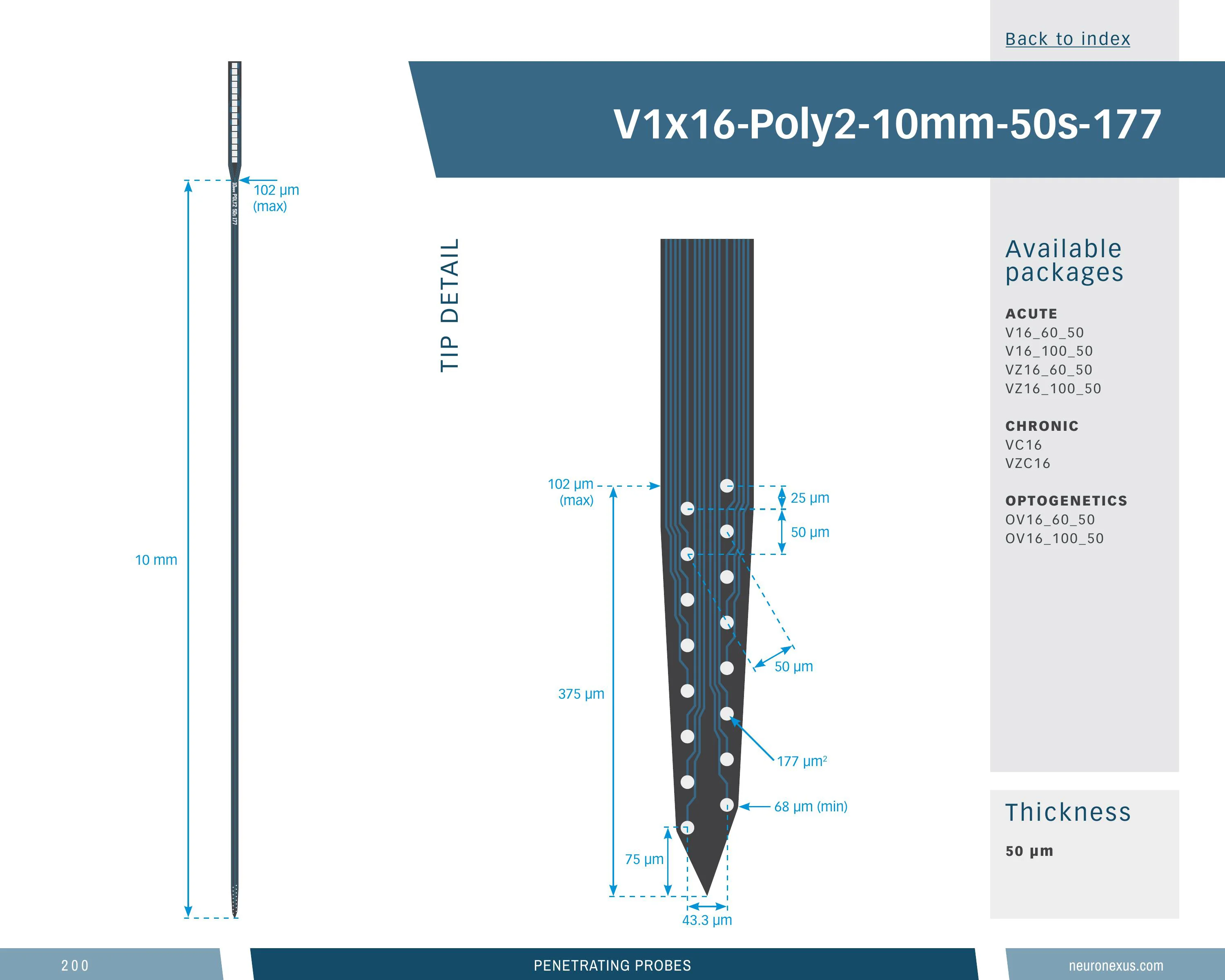

Part no.V1x16-Poly2-10mm-50s-177
Contents

16-site Vector probe, 10 mm, 25 µm pitch

A single long shank with sites staggered in two columns so neighbouring sites see the same units. Among the 369 probe designs in the design space it is mid-range: 16 sites (a common choice — 84 of 369), 10 mm shanks (a common choice — 80 of 366), a 0.39 mm-deep site array (25th percentile), 706 sites/mm² (76th percentile) and a 0.25 mm³ neural interface (9th percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, packed densely enough to track a unit across neighbouring sites. The long shank reaches deep targets.

Orders as a probe-plus-package assembly, in 7 package configurations, 1 of them microdrive-compatible. Silicon 50 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

v1x16_poly2_10mm_50s_177

Vector Single-Shank 16-Channel Probe, 10 mmSKU prb_vec--v1x16_poly2_10mm_50s_177

13 specs

Channels16
Shanks1
Shank length10 mm
Site layoutPoly2
Site area177 µm²
Site pitch25 µm
Vertical span390 µm
SubstrateSilicon
Site materialIridium
Thickness50 µm
Neural interface volume0.248 mm³ (higher than 9% of 369 designs)
Site coverage density705.8 sites/mm² (higher than 76% of 369 designs)
Brain coverage density64.4 sites/mm³ (higher than 70% of 369 designs)
Vector Single-Shank 16-Channel Probe, 10 mmSKU prb_vec--v1x16_poly2_10mm_50s_177

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

7 options

Configure

Compatible Package
All
OV16 (110 mm cable) — 16-ch Omnetics
OV16 (70 mm cable) — 16-ch Omnetics
v16_cl100_50
v16_cl60_50
VC16 — 16-ch Omnetics
VZ16_60_50
VZC16 — 16-ch Hirose

Your selection

16-channel single-shank silicon probe, 10 mm — 50 μm, OV16_CL100_50
OV16_CL100_50
Compatible Package: OV16 (110 mm cable) — 16-ch Omnetics
SKUprb_vec--v1x16_poly2_10mm_50s_177.50um.ov16_cl100_50
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

7 of 7
Vector Single-Shank 16-Channel Probe, 10 mmSKU prb_vec--v1x16_poly2_10mm_50s_177

Loading the compatible products…

Vector Single-Shank 16-Channel Probe, 10 mmSKU prb_vec--v1x16_poly2_10mm_50s_177

13 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
16
41024

Top 70% of catalog designs

Sites 16 — higher than 30% of catalog designs and 26% of its family
Shanks
1
116

Top 58% of catalog designs · largest in its family

Shanks 1 — higher than 42% of catalog designs and 100% of its family (the largest in its family, 27 designs)
Shank length
10 mm
1 mm60 mm

Top 10% of catalog designs

Shank length 10 mm — higher than 90% of catalog designs and 70% of its family
Maximum site depth
9.93 mm
0.972 mm51.29 mm

Top 28% of catalog designs

Maximum site depth 9.93 mm — higher than 72% of catalog designs and 11% of its family
Minimum site depth
9.54 mm
0.067 mm44.74 mm

Top 13% of catalog designs

Minimum site depth 9.54 mm — higher than 87% of catalog designs and 78% of its family
Span, x
0.058 mm
0.01 mm6.03 mm

Top 65% of catalog designs

Span, x 0.058 mm — higher than 35% of catalog designs and 85% of its family
Span, y
0.39 mm
0.01 mm10.55 mm

Top 75% of catalog designs

Span, y 0.39 mm — higher than 25% of catalog designs and 4% of its family
Site pitch, x
0.043 µm
0.012 µm0.57 µm

Top 11% of catalog designs · largest in its family

Site pitch, x 0.043 µm — higher than 89% of catalog designs and 100% of its family (the largest in its family, 9 designs)
Site pitch, y
0.025 µm
0.01 µm1.5 µm

Top 68% of catalog designs

Site pitch, y 0.025 µm — higher than 32% of catalog designs and 26% of its family
Site outline area
0.023 mm²
0.002 mm²28.74 mm²

Top 84% of catalog designs

Site outline area 0.023 mm² — higher than 16% of catalog designs and 19% of its family
Neural interface volume
0.248 mm³
0.149 mm³17.19 mm³

Top 91% of catalog designs

Neural interface volume 0.248 mm³ — higher than 9% of catalog designs and 4% of its family
Site coverage density
705.8 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 24% of catalog designs

Site coverage density 705.8 sites/mm² — higher than 76% of catalog designs and 52% of its family
Brain coverage density
64.43 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 30% of catalog designs

Brain coverage density 64.43 sites/mm³ — higher than 70% of catalog designs and 81% of its family
Vector Single-Shank 16-Channel Probe, 10 mmSKU prb_vec--v1x16_poly2_10mm_50s_177

5 notes · The two things that decide a Vector implant · Builds and variants · Geometry …

Vector Single-Shank 16-Channel Probe, 10 mmSKU prb_vec--v1x16_poly2_10mm_50s_177

3 downloads · 17 links · Deep Brain Targets with Vector Arrays · Care, Use and Handling · Choosing an Electrode for Your Experiment …

Vector Single-Shank 16-Channel Probe, 10 mmSKU prb_vec--v1x16_poly2_10mm_50s_177

Cited in 2,342 publications (product line)
