Neural Probes · Vector Array

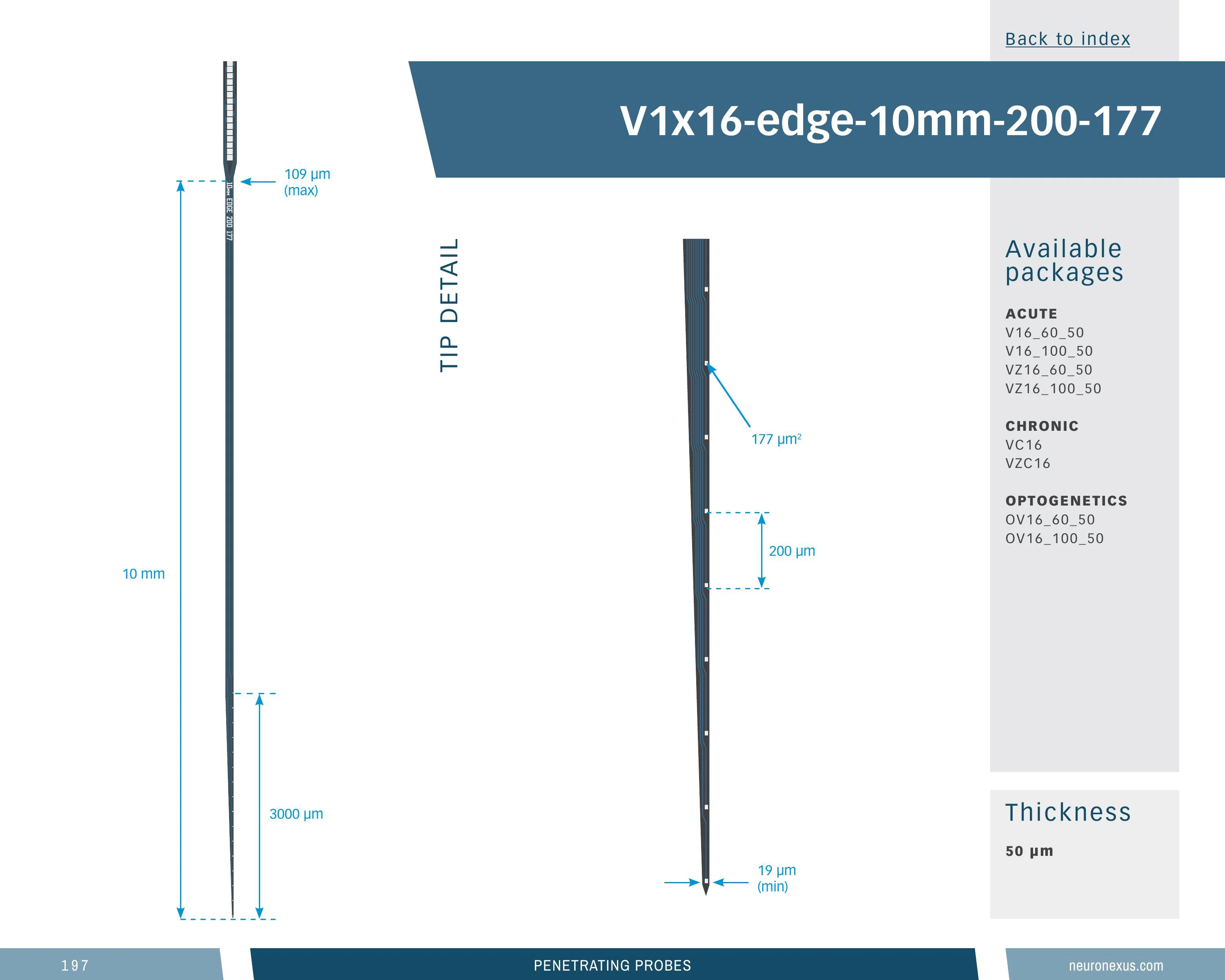

Vector Single-Shank 16-Channel Probe, 10 mm

16Sites
1Shanks
10mmShank Length
200µmSite Pitch
Part no.V1x16-Edge-10mm-200-177
Contents

16-site Vector probe, 10 mm, 200 µm pitch

A single long shank with sites along the shank's edge, closest to the tissue the probe faces. Among the 369 probe designs in the design space it is mid-range: 16 sites (a common choice — 84 of 369), 10 mm shanks (a common choice — 80 of 366), a 3.02 mm-deep site array (86th percentile), 461 sites/mm² (68th percentile) and a 0.9 mm³ neural interface (64th percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, spaced widely to span a structure rather than resolve within it. The long shank reaches deep targets.

Orders as a probe-plus-package assembly, in 5 package configurations, 1 of them microdrive-compatible. Silicon 50 µm thick. Z-coat available. Research use only.

Also known as

v1x16_edge_10mm_200_177

Vector Single-Shank 16-Channel Probe, 10 mmSKU prb_vec--v1x16_edge_10mm_200_177

13 specs

Channels16
Shanks1
Shank length10 mm
Site layoutEdge
Site area177 µm²
Site pitch200 µm
Vertical span3015 µm
SubstrateSilicon
Site materialIridium
Thickness50 µm
Neural interface volume0.899 mm³ (higher than 64% of 369 designs)
Site coverage density460.5 sites/mm² (higher than 68% of 369 designs)
Brain coverage density17.8 sites/mm³ (higher than 9% of 369 designs)
Vector Single-Shank 16-Channel Probe, 10 mmSKU prb_vec--v1x16_edge_10mm_200_177

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

5 options

Configure

Compatible Package
All
V16_115_50
v16_cl100_50
VC16 — 16-ch Omnetics
VZ16 — 16-ch Hirose
VZC16 — 16-ch Hirose

Your selection

16-channel single-shank silicon probe, 10 mm — 50 μm, v16_cl100_50
V16_CL100_50
Compatible Package: v16_cl100_50
SKUprb_vec--v1x16_edge_10mm_200_177.50um.v16_cl100_50
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

5 of 5
Vector Single-Shank 16-Channel Probe, 10 mmSKU prb_vec--v1x16_edge_10mm_200_177

Loading the compatible products…

Vector Single-Shank 16-Channel Probe, 10 mmSKU prb_vec--v1x16_edge_10mm_200_177

12 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
16
41024

Top 70% of catalog designs

Sites 16 — higher than 30% of catalog designs and 26% of its family
Shanks
1
116

Top 58% of catalog designs · largest in its family

Shanks 1 — higher than 42% of catalog designs and 100% of its family (the largest in its family, 27 designs)
Shank length
10 mm
1 mm60 mm

Top 10% of catalog designs

Shank length 10 mm — higher than 90% of catalog designs and 70% of its family
Maximum site depth
9.97 mm
0.972 mm51.29 mm

Top 13% of catalog designs

Maximum site depth 9.97 mm — higher than 87% of catalog designs and 63% of its family
Minimum site depth
6.95 mm
0.067 mm44.74 mm

Top 27% of catalog designs

Minimum site depth 6.95 mm — higher than 73% of catalog designs and 48% of its family
Span, x
0.012 mm
0.01 mm6.03 mm

Top 99% of catalog designs

Span, x 0.012 mm — higher than 1% of catalog designs and 7% of its family
Span, y
3.02 mm
0.01 mm10.55 mm

Top 14% of catalog designs

Span, y 3.02 mm — higher than 86% of catalog designs and 56% of its family
Site pitch, y
0.2 µm
0.01 µm1.5 µm

Top 4% of catalog designs · largest in its family

Site pitch, y 0.2 µm — higher than 96% of catalog designs and 100% of its family (the largest in its family, 27 designs)
Site outline area
0.035 mm²
0.002 mm²28.74 mm²

Top 78% of catalog designs

Site outline area 0.035 mm² — higher than 22% of catalog designs and 33% of its family
Neural interface volume
0.899 mm³
0.149 mm³17.19 mm³

Top 36% of catalog designs

Neural interface volume 0.899 mm³ — higher than 64% of catalog designs and 56% of its family
Site coverage density
460.5 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 32% of catalog designs

Site coverage density 460.5 sites/mm² — higher than 68% of catalog designs and 30% of its family
Brain coverage density
17.8 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 91% of catalog designs

Brain coverage density 17.8 sites/mm³ — higher than 9% of catalog designs and 11% of its family
Vector Single-Shank 16-Channel Probe, 10 mmSKU prb_vec--v1x16_edge_10mm_200_177

5 notes · The two things that decide a Vector implant · Builds and variants · Geometry …

Vector Single-Shank 16-Channel Probe, 10 mmSKU prb_vec--v1x16_edge_10mm_200_177

3 downloads · 17 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · Deep Brain Targets with Vector Arrays …

Vector Single-Shank 16-Channel Probe, 10 mmSKU prb_vec--v1x16_edge_10mm_200_177

Cited in 2,342 publications (product line)
