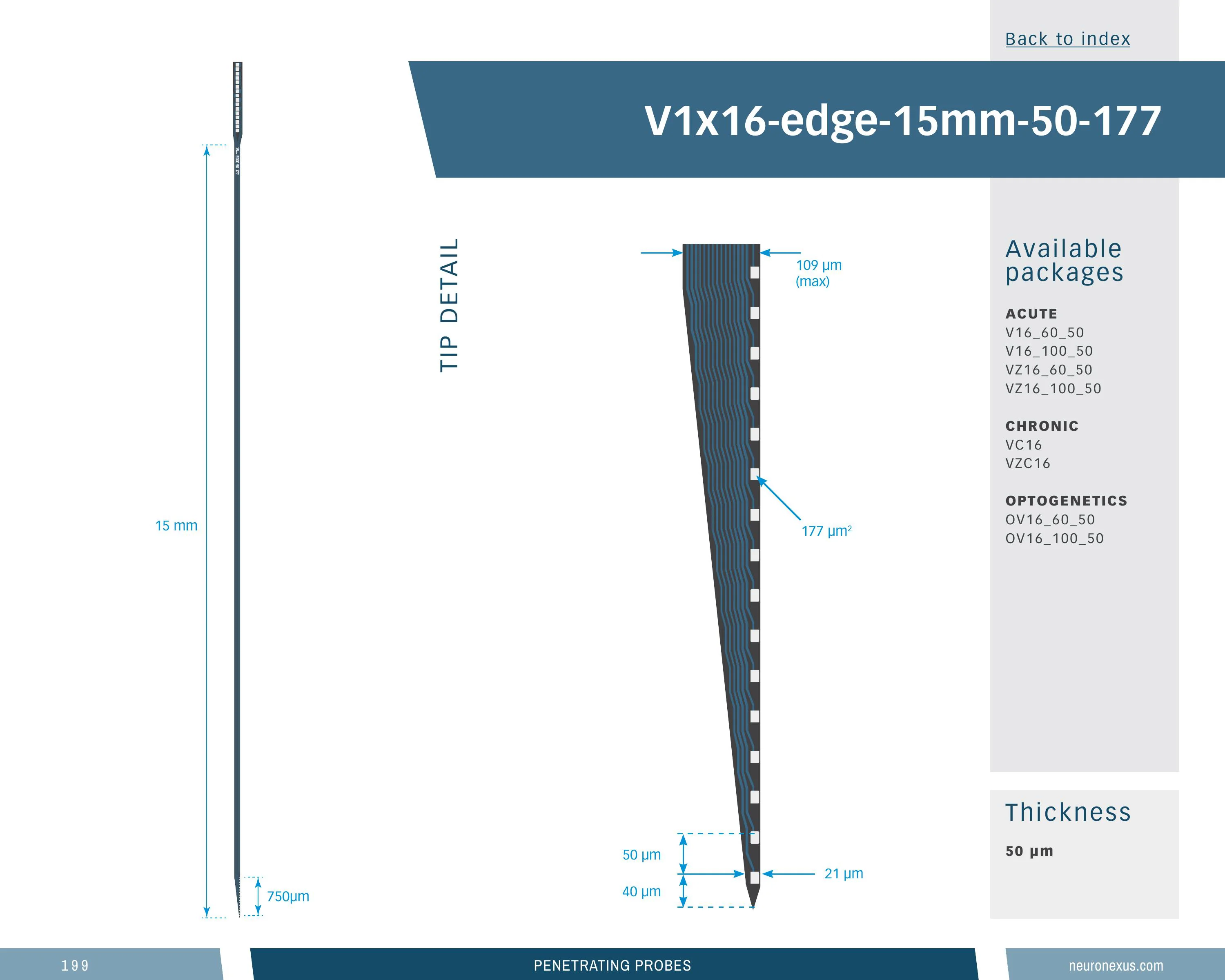

Vector Single-Shank 16-Channel Probe, 15 mm

16Sites
1Shanks
15mmShank Length
50µmSite Pitch
Part no.V1x16-Edge-15mm-50-177
Contents

16-site Vector probe, 15 mm, 177 µm²

A single long shank with sites along the shank's edge, closest to the tissue the probe faces. Among the 369 probe designs in the design space it is mid-range: 16 sites (a common choice — 84 of 369), 15 mm shanks (98th percentile of the 366 measured), a 0.77 mm-deep site array (44th percentile), 1,743 sites/mm² (94th percentile) and a 0.32 mm³ neural interface (14th percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, spaced for a laminar profile. The long shank reaches deep targets.

Orders as a probe-plus-package assembly, in 4 package configurations, 1 of them microdrive-compatible. Silicon 50 µm thick. Z-coat available. Research use only.

Also known as

v1x16_edge_15mm_50_177

Vector Single-Shank 16-Channel Probe, 15 mmSKU prb_vec--v1x16_edge_15mm_50_177

13 specs

Channels16
Shanks1
Shank length15 mm
Site layoutEdge
Site area177 µm²
Site pitch50 µm
Vertical span765 µm
SubstrateSilicon
Site materialIridium
Thickness50 µm
Neural interface volume0.324 mm³ (higher than 14% of 369 designs)
Site coverage density1,742.9 sites/mm² (higher than 94% of 369 designs)
Brain coverage density49.4 sites/mm³ (higher than 55% of 369 designs)
Vector Single-Shank 16-Channel Probe, 15 mmSKU prb_vec--v1x16_edge_15mm_50_177
