Neural Probes · Vector Array

Vector Single-Shank 32-Channel Probe, 10 mm

32Sites
1Shanks
10mmShank Length
150µmSite Pitch

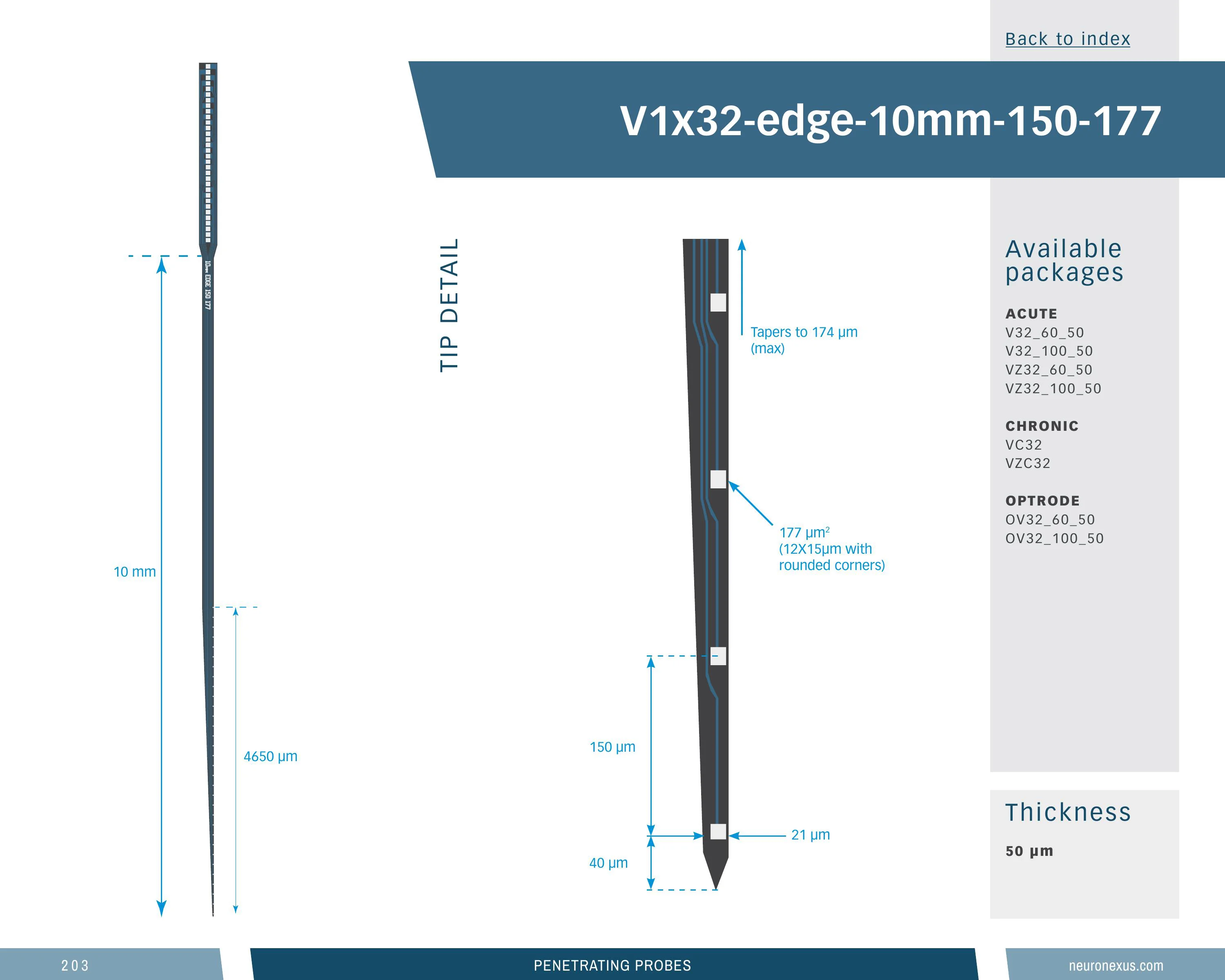

Part no.V1x32-Edge-10mm-150-177
Contents

32-site Vector probe, 10 mm, 150 µm pitch

A single long shank with sites along the shank's edge, closest to the tissue the probe faces. Among the 369 probe designs in the design space it is in the upper quartile: 32 sites (a common choice — 158 of 369), 10 mm shanks (a common choice — 80 of 366), a 4.67 mm-deep site array (96th percentile), 572 sites/mm² (70th percentile) and a 1.32 mm³ neural interface (82nd percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, spaced widely to span a structure rather than resolve within it. The long shank reaches deep targets.

Orders as a probe-plus-package assembly, in 11 package configurations, 3 of them microdrive-compatible. Silicon 50 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

v1x32_edge_10mm_150_177

Vector Single-Shank 32-Channel Probe, 10 mmSKU prb_vec--v1x32_edge_10mm_150_177

13 specs

Channels32
Shanks1
Shank length10 mm
Site layoutEdge
Site area177 µm²
Site pitch150 µm
Vertical span4665 µm
SubstrateSilicon
Site materialIridium
Thickness50 µm
Neural interface volume1.322 mm³ (higher than 82% of 369 designs)
Site coverage density571.6 sites/mm² (higher than 70% of 369 designs)
Brain coverage density24.2 sites/mm³ (higher than 18% of 369 designs)
Vector Single-Shank 32-Channel Probe, 10 mmSKU prb_vec--v1x32_edge_10mm_150_177

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

11 options

Configure

Compatible Package
All
H32 — 32-ch Omnetics
HZ32 — 32-ch Hirose
OV32LP_100_50 — 32-ch
OV32LP_115_50 — 32-ch
V32 — 32-ch Omnetics
V32_107_50 — 32-ch
v32_cl100_50
v32_cl60_50
VC32 — 32-ch Omnetics
vz32_100_50
VZC32 — 32-ch Hirose

Your selection

32-channel single-shank silicon probe, 10 mm — 50 μm, V32
V32
Compatible Package: V32 — 32-ch Omnetics
SKUprb_vec--v1x32_edge_10mm_150_177.50um.v32
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

11 of 11
Vector Single-Shank 32-Channel Probe, 10 mmSKU prb_vec--v1x32_edge_10mm_150_177

Loading the compatible products…

Vector Single-Shank 32-Channel Probe, 10 mmSKU prb_vec--v1x32_edge_10mm_150_177

12 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
32
41024

Top 26% of catalog designs

Sites 32 — higher than 74% of catalog designs and 70% of its family
Shanks
1
116

Top 58% of catalog designs · largest in its family

Shanks 1 — higher than 42% of catalog designs and 100% of its family (the largest in its family, 27 designs)
Shank length
10 mm
1 mm60 mm

Top 10% of catalog designs

Shank length 10 mm — higher than 90% of catalog designs and 70% of its family
Maximum site depth
9.96 mm
0.972 mm51.29 mm

Top 22% of catalog designs

Maximum site depth 9.96 mm — higher than 78% of catalog designs and 26% of its family
Minimum site depth
5.29 mm
0.067 mm44.74 mm

Top 37% of catalog designs

Minimum site depth 5.29 mm — higher than 63% of catalog designs and 19% of its family
Span, x
0.012 mm
0.01 mm6.03 mm

Top 94% of catalog designs

Span, x 0.012 mm — higher than 6% of catalog designs and 52% of its family
Span, y
4.67 mm
0.01 mm10.55 mm

Top 4% of catalog designs

Span, y 4.67 mm — higher than 96% of catalog designs and 78% of its family
Site pitch, y
0.15 µm
0.01 µm1.5 µm

Top 14% of catalog designs

Site pitch, y 0.15 µm — higher than 86% of catalog designs and 85% of its family
Site outline area
0.056 mm²
0.002 mm²28.74 mm²

Top 66% of catalog designs

Site outline area 0.056 mm² — higher than 34% of catalog designs and 63% of its family
Neural interface volume
1.32 mm³
0.149 mm³17.19 mm³

Top 18% of catalog designs

Neural interface volume 1.32 mm³ — higher than 82% of catalog designs and 74% of its family
Site coverage density
571.6 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 30% of catalog designs

Site coverage density 571.6 sites/mm² — higher than 70% of catalog designs and 37% of its family
Brain coverage density
24.2 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 82% of catalog designs

Brain coverage density 24.2 sites/mm³ — higher than 18% of catalog designs and 22% of its family
Vector Single-Shank 32-Channel Probe, 10 mmSKU prb_vec--v1x32_edge_10mm_150_177

5 notes · The two things that decide a Vector implant · Builds and variants · Geometry …

Vector Single-Shank 32-Channel Probe, 10 mmSKU prb_vec--v1x32_edge_10mm_150_177

3 downloads · 17 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · Deep Brain Targets with Vector Arrays …

Vector Single-Shank 32-Channel Probe, 10 mmSKU prb_vec--v1x32_edge_10mm_150_177

Cited in 2,342 publications (product line)
