Neural Probes · Vector Array

Vector Single-Shank 32-Channel Probe, 10 mm

32Sites
1Shanks
10mmShank Length
50µmSite Pitch
Part no.V1x32-Edge-10mm-50-177
Contents

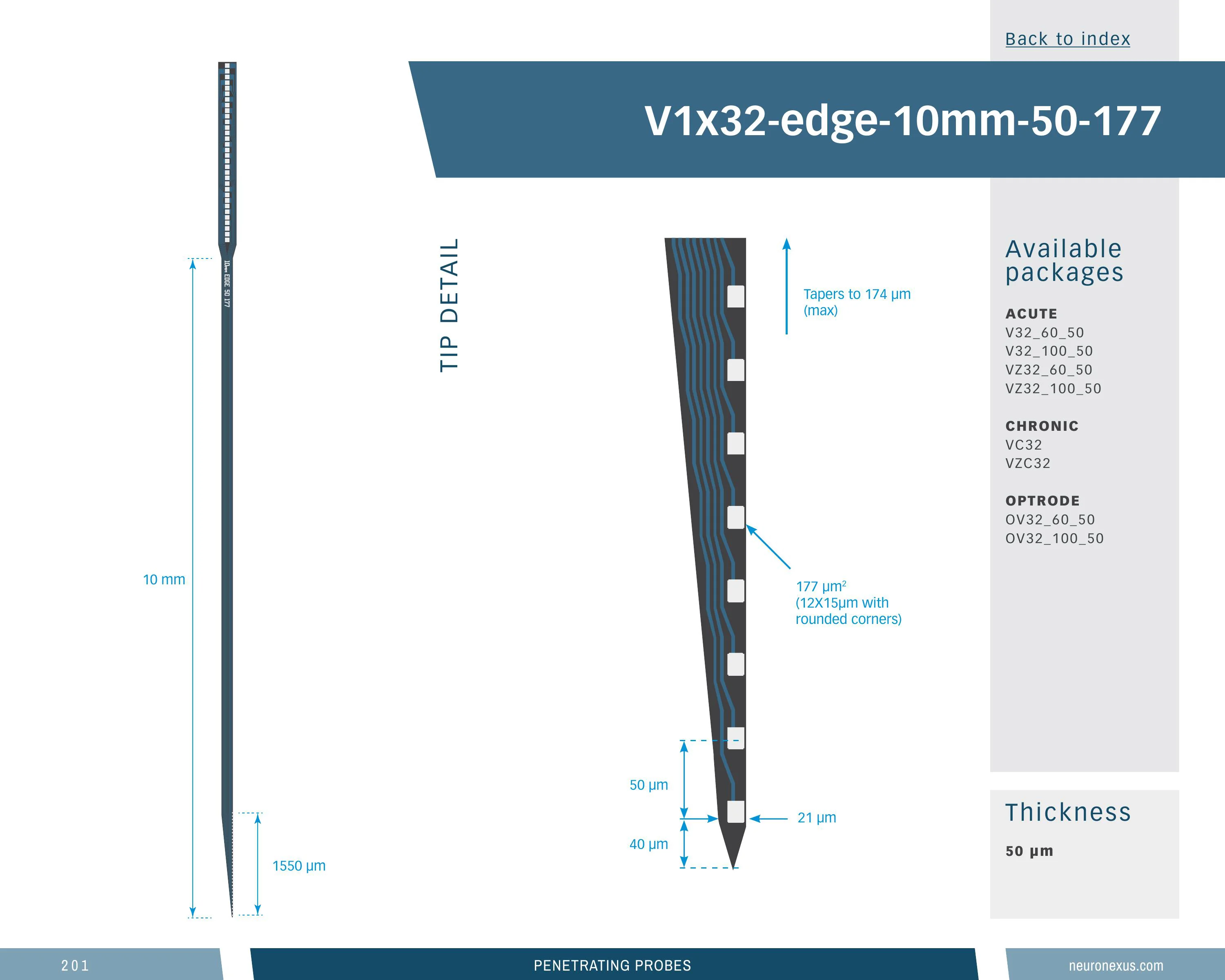

32-site Vector probe, 10 mm, 50 µm pitch

A single long shank with sites along the shank's edge, closest to the tissue the probe faces. Among the 369 probe designs in the design space it is in the upper quartile: 32 sites (a common choice — 158 of 369), 10 mm shanks (a common choice — 80 of 366), a 1.56 mm-deep site array (76th percentile), 1,704 sites/mm² (94th percentile) and a 0.53 mm³ neural interface (37th percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, spaced for a laminar profile. The long shank reaches deep targets.

Orders as a probe-plus-package assembly, in 12 package configurations, 2 of them microdrive-compatible. Silicon 50 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

v1x32_edge_10mm_50_177 · v1x32_edge_10mm_50_177_vz32_60_50

Vector Single-Shank 32-Channel Probe, 10 mmSKU prb_vec--v1x32_edge_10mm_50_177

13 specs

Channels32
Shanks1
Shank length10 mm
Site layoutEdge
Site area177 µm²
Site pitch50 µm
Vertical span1565 µm
SubstrateSilicon
Site materialIridium
Thickness50 µm
Neural interface volume0.529 mm³ (higher than 37% of 369 designs)
Site coverage density1,703.9 sites/mm² (higher than 94% of 369 designs)
Brain coverage density60.5 sites/mm³ (higher than 67% of 369 designs)
Vector Single-Shank 32-Channel Probe, 10 mmSKU prb_vec--v1x32_edge_10mm_50_177

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

12 options

Configure

Compatible Package
All
H32 — 32-ch Omnetics
HZ32 (21 mm cable) — 32-ch Hirose
OV32 (110 mm cable) — 32-ch Omnetics
OV32 (70 mm cable) — 32-ch Omnetics
OV32LP_100_50 — 32-ch
OV32LP_115_50 — 32-ch
V32_107_50 — 32-ch
v32_cl100_50
v32_cl60_50
VC32 — 32-ch Omnetics
VZ32 — 32-ch Hirose
VZC32 — 32-ch Hirose

Your selection

32-channel single-shank silicon probe, 10 mm — 50 μm, HZ32_21MM
HZ32_21MM
Compatible Package: HZ32 (21 mm cable) — 32-ch Hirose
SKUprb_vec--v1x32_edge_10mm_50_177.50um.hz32_21mm
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

12 of 12
Vector Single-Shank 32-Channel Probe, 10 mmSKU prb_vec--v1x32_edge_10mm_50_177

Loading the compatible products…

Vector Single-Shank 32-Channel Probe, 10 mmSKU prb_vec--v1x32_edge_10mm_50_177

12 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
32
41024

Top 26% of catalog designs

Sites 32 — higher than 74% of catalog designs and 70% of its family
Shanks
1
116

Top 58% of catalog designs · largest in its family

Shanks 1 — higher than 42% of catalog designs and 100% of its family (the largest in its family, 27 designs)
Shank length
10 mm
1 mm60 mm

Top 10% of catalog designs

Shank length 10 mm — higher than 90% of catalog designs and 70% of its family
Maximum site depth
9.97 mm
0.972 mm51.29 mm

Top 14% of catalog designs

Maximum site depth 9.97 mm — higher than 86% of catalog designs and 52% of its family
Minimum site depth
8.4 mm
0.067 mm44.74 mm

Top 22% of catalog designs

Minimum site depth 8.4 mm — higher than 78% of catalog designs and 59% of its family
Span, x
0.012 mm
0.01 mm6.03 mm

Top 94% of catalog designs

Span, x 0.012 mm — higher than 6% of catalog designs and 52% of its family
Span, y
1.56 mm
0.01 mm10.55 mm

Top 24% of catalog designs

Span, y 1.56 mm — higher than 76% of catalog designs and 33% of its family
Site pitch, y
0.05 µm
0.01 µm1.5 µm

Top 44% of catalog designs

Site pitch, y 0.05 µm — higher than 56% of catalog designs and 41% of its family
Site outline area
0.019 mm²
0.002 mm²28.74 mm²

Top 87% of catalog designs

Site outline area 0.019 mm² — higher than 13% of catalog designs and 11% of its family
Neural interface volume
0.529 mm³
0.149 mm³17.19 mm³

Top 63% of catalog designs

Neural interface volume 0.529 mm³ — higher than 37% of catalog designs and 30% of its family
Site coverage density
1703.9 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 6% of catalog designs

Site coverage density 1703.9 sites/mm² — higher than 94% of catalog designs and 93% of its family
Brain coverage density
60.53 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 33% of catalog designs

Brain coverage density 60.53 sites/mm³ — higher than 67% of catalog designs and 78% of its family
Vector Single-Shank 32-Channel Probe, 10 mmSKU prb_vec--v1x32_edge_10mm_50_177

5 notes · The two things that decide a Vector implant · Builds and variants · Geometry …

Vector Single-Shank 32-Channel Probe, 10 mmSKU prb_vec--v1x32_edge_10mm_50_177

3 downloads · 17 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · Deep Brain Targets with Vector Arrays …

Vector Single-Shank 32-Channel Probe, 10 mmSKU prb_vec--v1x32_edge_10mm_50_177

Cited in 2,342 publications (product line)
