Neural Probes · Vector Array

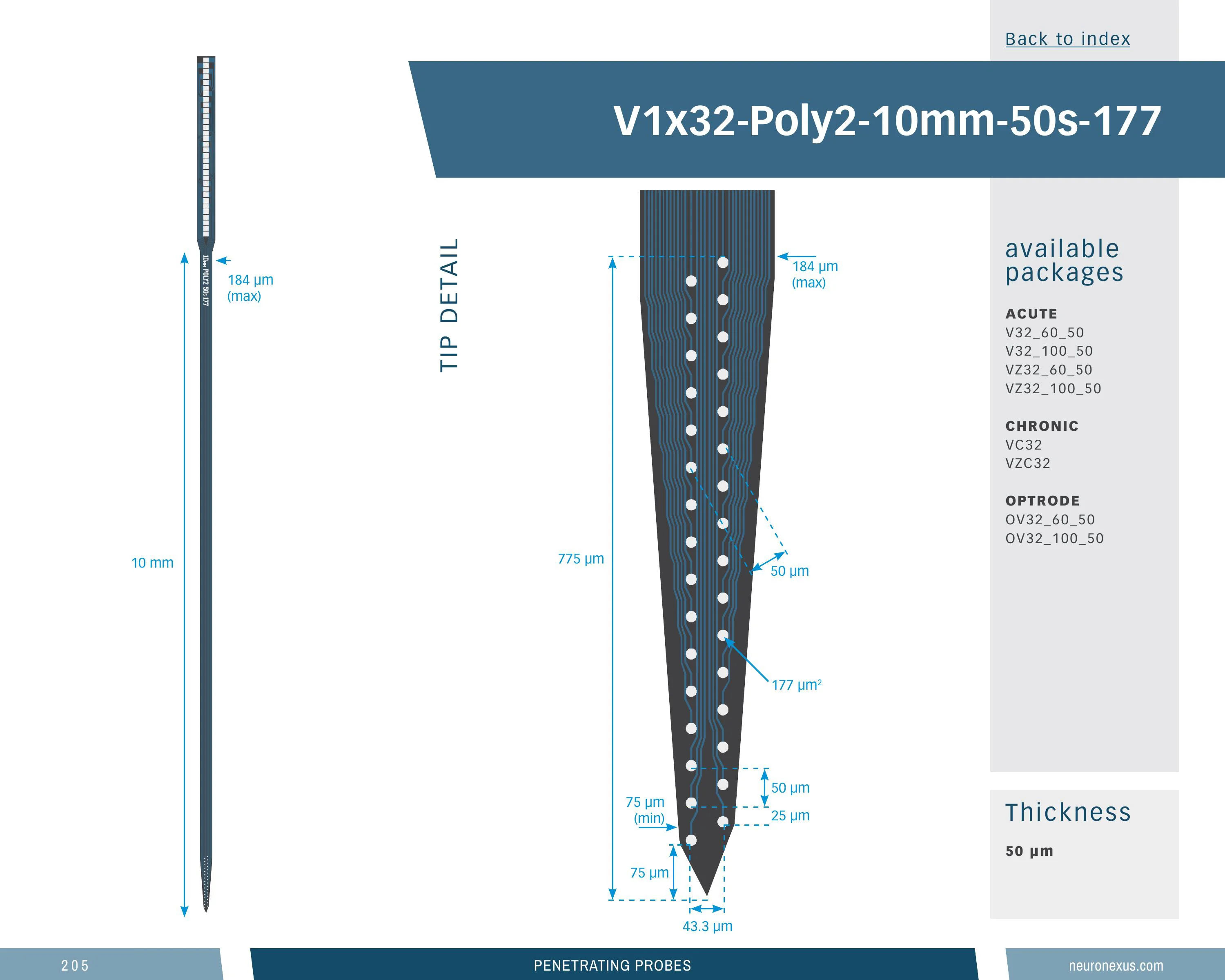

Vector Single-Shank 32-Channel Probe, 10 mm

32Sites
1Shanks
10mmShank Length
25µmSite Pitch
Part no.V1x32-Poly2-10mm-50s-177
Contents

32-site Vector probe, 10 mm, 25 µm pitch

A single long shank with sites staggered in two columns so neighbouring sites see the same units. Among the 369 probe designs in the design space it is mid-range: 32 sites (a common choice — 158 of 369), 10 mm shanks (a common choice — 80 of 366), a 0.79 mm-deep site array (50th percentile), 697 sites/mm² (74th percentile) and a 0.36 mm³ neural interface (20th percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, packed densely enough to track a unit across neighbouring sites. The long shank reaches deep targets.

Orders as a probe-plus-package assembly, in 13 package configurations, 3 of them microdrive-compatible. Silicon 50 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

v1x32_poly2_10mm_50s_177

Vector Single-Shank 32-Channel Probe, 10 mmSKU prb_vec--v1x32_poly2_10mm_50s_177

13 specs

Channels32
Shanks1
Shank length10 mm
Site layoutPoly2
Site area177 µm²
Site pitch25 µm
Vertical span790 µm
SubstrateSilicon
Site materialIridium
Thickness50 µm
Neural interface volume0.360 mm³ (higher than 20% of 369 designs)
Site coverage density696.7 sites/mm² (higher than 74% of 369 designs)
Brain coverage density88.9 sites/mm³ (higher than 82% of 369 designs)
Vector Single-Shank 32-Channel Probe, 10 mmSKU prb_vec--v1x32_poly2_10mm_50s_177

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

13 options

Configure

Compatible Package
All
H32 — 32-ch Omnetics
HZ32 — 32-ch Hirose
OV32LP_100_50 — 32-ch
OV32LP_115_50 — 32-ch
V32 — 32-ch Omnetics
V32_107_50 — 32-ch
V32_80_50
v32_cl100_50
v32_cl60_50
VC32 — 32-ch Omnetics
vz32_100_50
VZ32_60_50
VZC32 — 32-ch Hirose

Your selection

32-channel single-shank silicon probe, 10 mm — 50 μm, V32
V32
Compatible Package: V32 — 32-ch Omnetics
SKUprb_vec--v1x32_poly2_10mm_50s_177.50um.v32
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

13 of 13
Vector Single-Shank 32-Channel Probe, 10 mmSKU prb_vec--v1x32_poly2_10mm_50s_177

Loading the compatible products…

Vector Single-Shank 32-Channel Probe, 10 mmSKU prb_vec--v1x32_poly2_10mm_50s_177

13 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
32
41024

Top 26% of catalog designs

Sites 32 — higher than 74% of catalog designs and 70% of its family
Shanks
1
116

Top 58% of catalog designs · largest in its family

Shanks 1 — higher than 42% of catalog designs and 100% of its family (the largest in its family, 27 designs)
Shank length
10 mm
1 mm60 mm

Top 10% of catalog designs

Shank length 10 mm — higher than 90% of catalog designs and 70% of its family
Maximum site depth
9.93 mm
0.972 mm51.29 mm

Top 28% of catalog designs

Maximum site depth 9.93 mm — higher than 72% of catalog designs and 7% of its family
Minimum site depth
9.14 mm
0.067 mm44.74 mm

Top 17% of catalog designs

Minimum site depth 9.14 mm — higher than 83% of catalog designs and 70% of its family
Span, x
0.058 mm
0.01 mm6.03 mm

Top 64% of catalog designs

Span, x 0.058 mm — higher than 36% of catalog designs and 93% of its family
Span, y
0.79 mm
0.01 mm10.55 mm

Top 50% of catalog designs

Span, y 0.79 mm — higher than 50% of catalog designs and 19% of its family
Site pitch, x
0.043 µm
0.012 µm0.57 µm

Top 11% of catalog designs · largest in its family

Site pitch, x 0.043 µm — higher than 89% of catalog designs and 100% of its family (the largest in its family, 9 designs)
Site pitch, y
0.025 µm
0.01 µm1.5 µm

Top 68% of catalog designs

Site pitch, y 0.025 µm — higher than 32% of catalog designs and 26% of its family
Site outline area
0.046 mm²
0.002 mm²28.74 mm²

Top 69% of catalog designs

Site outline area 0.046 mm² — higher than 31% of catalog designs and 56% of its family
Neural interface volume
0.36 mm³
0.149 mm³17.19 mm³

Top 80% of catalog designs

Neural interface volume 0.36 mm³ — higher than 20% of catalog designs and 19% of its family
Site coverage density
696.7 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 26% of catalog designs

Site coverage density 696.7 sites/mm² — higher than 74% of catalog designs and 48% of its family
Brain coverage density
88.89 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 18% of catalog designs

Brain coverage density 88.89 sites/mm³ — higher than 82% of catalog designs and 93% of its family
Vector Single-Shank 32-Channel Probe, 10 mmSKU prb_vec--v1x32_poly2_10mm_50s_177

5 notes · The two things that decide a Vector implant · Builds and variants · Geometry …

Vector Single-Shank 32-Channel Probe, 10 mmSKU prb_vec--v1x32_poly2_10mm_50s_177

3 downloads · 17 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · Deep Brain Targets with Vector Arrays …

Vector Single-Shank 32-Channel Probe, 10 mmSKU prb_vec--v1x32_poly2_10mm_50s_177

Cited in 2,342 publications (product line)
