Neural Probes · Vector Array

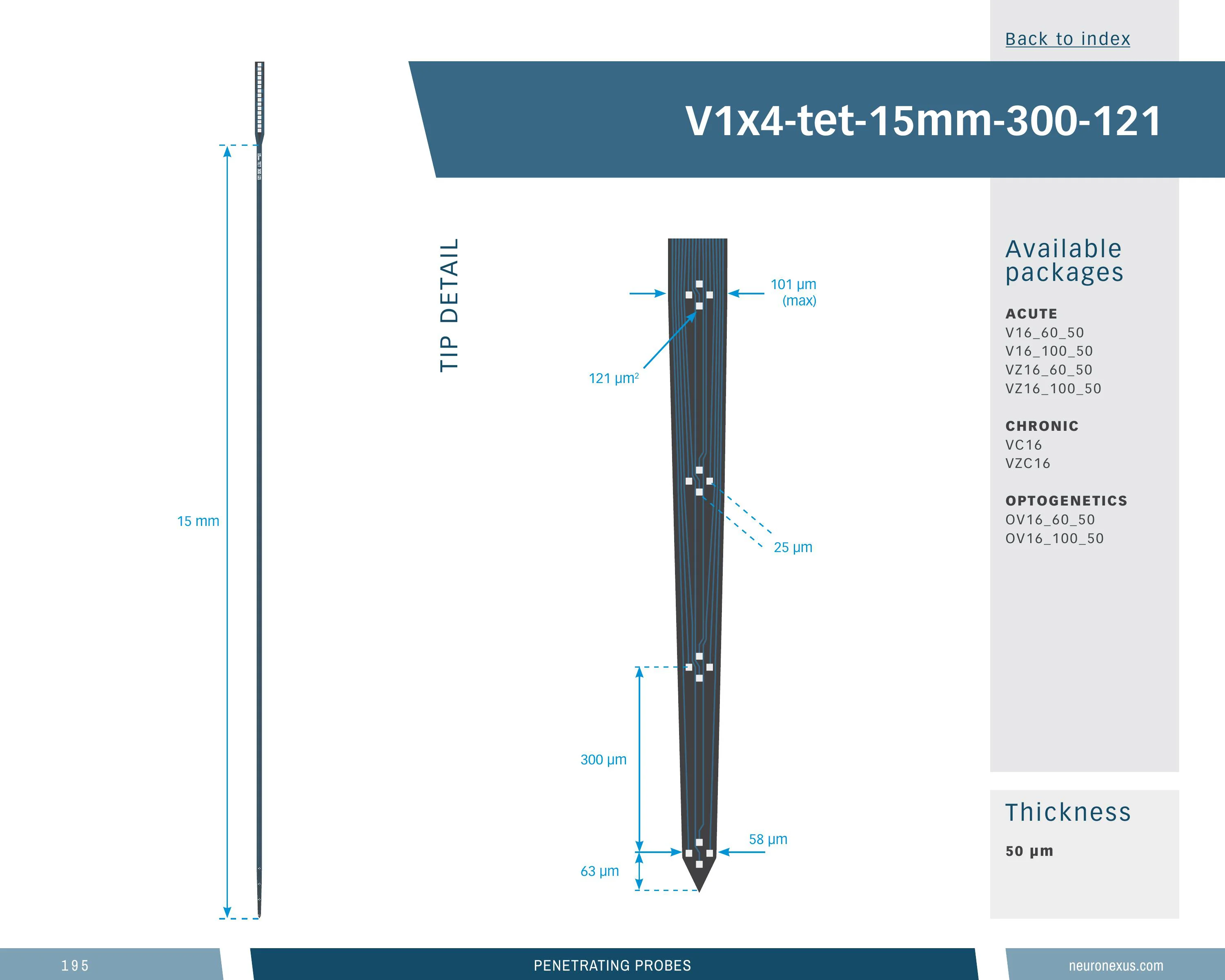

Vector Single-Shank 16-Channel Probe, 15 mm

16Sites
1Shanks
15mmShank Length
17.68µmSite Pitch
Part no.V1x4-tet-15mm-300-121
Contents

16-site Vector probe, 15 mm, 121 µm²

A single long shank with sites grouped in tetrodes at intervals, for unit isolation at set depths. Among the 369 probe designs in the design space it is mid-range: 16 sites (a common choice — 84 of 369), 15 mm shanks (98th percentile of the 366 measured), a 0.95 mm-deep site array (53rd percentile), 365 sites/mm² (60th percentile) and a 0.4 mm³ neural interface (24th percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, packed densely enough to track a unit across neighbouring sites. The long shank reaches deep targets.

Orders as a probe-plus-package assembly, in 5 package configurations, 1 of them microdrive-compatible. Silicon 50 µm thick. Z-coat available. Research use only.

Also known as

v1x4_tet_15mm_300_121 · v1x4_tet_15mm_300_12

Vector Single-Shank 16-Channel Probe, 15 mmSKU prb_vec--v1x4_tet_15mm_300_121

13 specs

Channels16
Shanks1
Shank length15 mm
Site layoutTetrode
Site area121 µm²
Site pitch17.68 µm
Vertical span946 µm
SubstrateSilicon
Site materialIridium
Thickness50 µm
Neural interface volume0.395 mm³ (higher than 24% of 369 designs)
Site coverage density364.7 sites/mm² (higher than 60% of 369 designs)
Brain coverage density40.5 sites/mm³ (higher than 43% of 369 designs)
Vector Single-Shank 16-Channel Probe, 15 mmSKU prb_vec--v1x4_tet_15mm_300_121

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

5 options

Configure

Compatible Package
All
v16_cl100_50
v16_cl60_50
VC16 — 16-ch Omnetics
VZ16 — 16-ch Hirose
VZC16 — 16-ch Hirose

Your selection

16-channel single-shank silicon probe, 15 mm — 50 μm, v16_cl100_50
V16_CL100_50
Compatible Package: v16_cl100_50
SKUprb_vec--v1x4_tet_15mm_300_121.50um.v16_cl100_50
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

5 of 5
Vector Single-Shank 16-Channel Probe, 15 mmSKU prb_vec--v1x4_tet_15mm_300_121

Loading the compatible products…

Vector Single-Shank 16-Channel Probe, 15 mmSKU prb_vec--v1x4_tet_15mm_300_121

13 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
16
41024

Top 70% of catalog designs

Sites 16 — higher than 30% of catalog designs and 26% of its family
Shanks
1
116

Top 58% of catalog designs · largest in its family

Shanks 1 — higher than 42% of catalog designs and 100% of its family (the largest in its family, 27 designs)
Shank length
15 mm
1 mm60 mm

Top 2% of catalog designs · largest in its family

Shank length 15 mm — higher than 98% of catalog designs and 100% of its family (the largest in its family, 27 designs)
Maximum site depth
14.96 mm
0.972 mm51.29 mm

Top 4% of catalog designs

Maximum site depth 14.96 mm — higher than 96% of catalog designs and 93% of its family
Minimum site depth
14.01 mm
0.067 mm44.74 mm

Top 3% of catalog designs

Minimum site depth 14.01 mm — higher than 97% of catalog designs and 93% of its family
Span, x
0.046 mm
0.01 mm6.03 mm

Top 68% of catalog designs

Span, x 0.046 mm — higher than 32% of catalog designs and 70% of its family
Span, y
0.946 mm
0.01 mm10.55 mm

Top 47% of catalog designs

Span, y 0.946 mm — higher than 53% of catalog designs and 22% of its family
Site pitch, x
0.018 µm
0.012 µm0.57 µm

Top 48% of catalog designs

Site pitch, x 0.018 µm — higher than 52% of catalog designs and 33% of its family
Site pitch, y
0.018 µm
0.01 µm1.5 µm

Top 85% of catalog designs

Site pitch, y 0.018 µm — higher than 15% of catalog designs and 11% of its family
Site outline area
0.044 mm²
0.002 mm²28.74 mm²

Top 73% of catalog designs

Site outline area 0.044 mm² — higher than 27% of catalog designs and 44% of its family
Neural interface volume
0.395 mm³
0.149 mm³17.19 mm³

Top 76% of catalog designs

Neural interface volume 0.395 mm³ — higher than 24% of catalog designs and 22% of its family
Site coverage density
364.7 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 40% of catalog designs

Site coverage density 364.7 sites/mm² — higher than 60% of catalog designs and 22% of its family
Brain coverage density
40.49 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 57% of catalog designs

Brain coverage density 40.49 sites/mm³ — higher than 43% of catalog designs and 56% of its family
Vector Single-Shank 16-Channel Probe, 15 mmSKU prb_vec--v1x4_tet_15mm_300_121

5 notes · The two things that decide a Vector implant · Builds and variants · Geometry …

Vector Single-Shank 16-Channel Probe, 15 mmSKU prb_vec--v1x4_tet_15mm_300_121

3 downloads · 17 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · Deep Brain Targets with Vector Arrays …

Vector Single-Shank 16-Channel Probe, 15 mmSKU prb_vec--v1x4_tet_15mm_300_121

Cited in 2,342 publications (product line)
