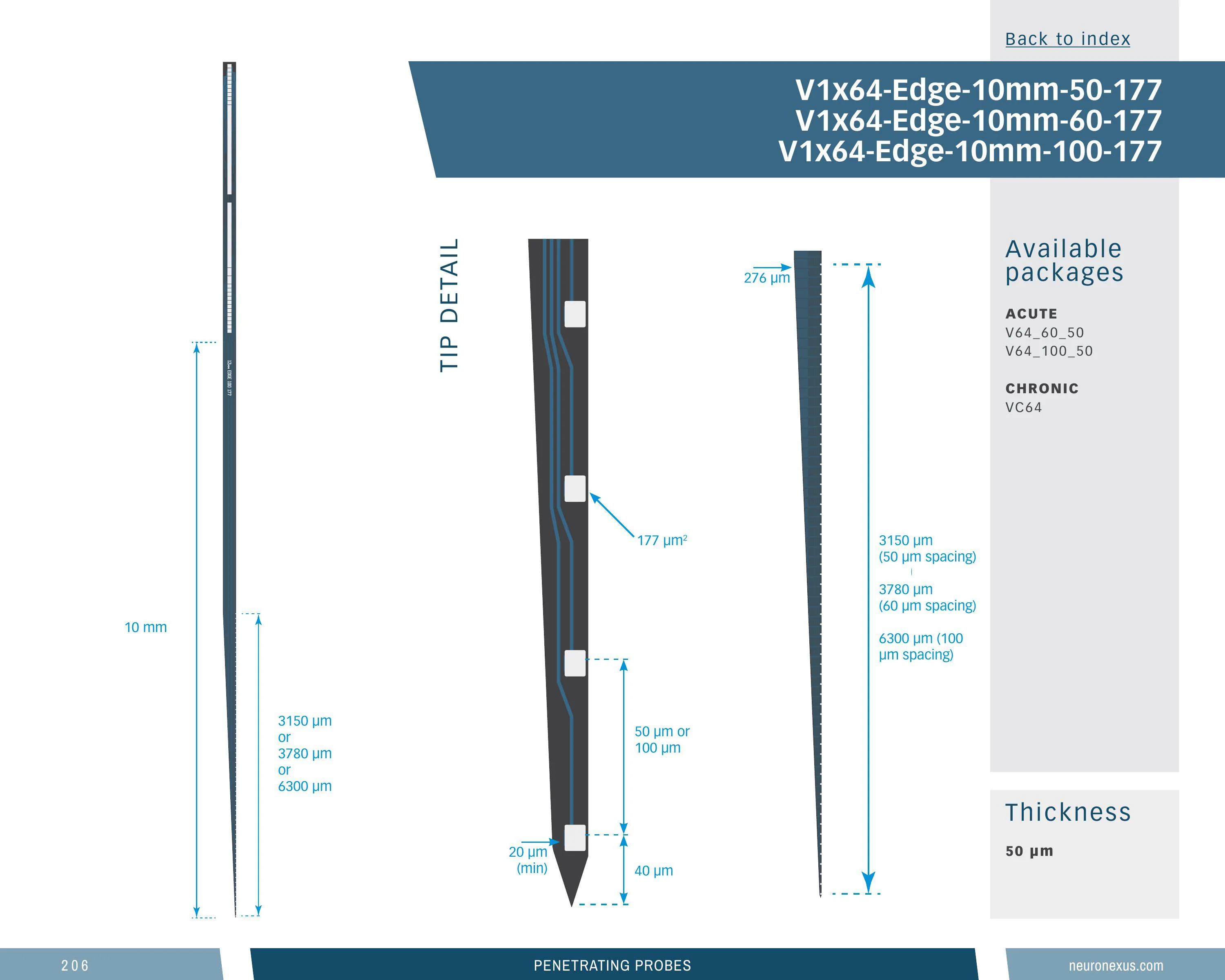

64-site Vector probe, 100 µm pitch
A single long shank with sites along the shank's edge, closest to the tissue the probe faces. Among the 369 probe designs in the design space it is in the upper quartile: 64 sites (a common choice — 65 of 369), 10 mm shanks (a common choice — 80 of 366), a 6.32 mm-deep site array (98th percentile), 845 sites/mm² (81st percentile) and a 1.74 mm³ neural interface (88th percentile).
Small sites read a local patch at higher impedance, sharpening single-unit isolation, spaced for a laminar profile. The long shank reaches deep targets.
Orders as a probe-plus-package assembly, in 3 package configurations. Silicon 50 µm thick. Z-coat available. Research use only.
v1x64_edge_10mm_100_177
13 specs
| Channels | 64 |
|---|---|
| Shanks | 1 |
| Shank length | 10 mm |
| Site layout | Edge |
| Site area | 177 µm² |
| Site pitch | 100 µm |
| Vertical span | 6315 µm |
| Substrate | Silicon |
|---|---|
| Site material | Iridium |
| Thickness | 50 µm |
| Neural interface volume | 1.745 mm³ (higher than 88% of 369 designs) |
| Site coverage density | 844.6 sites/mm² (higher than 81% of 369 designs) |
| Brain coverage density | 36.7 sites/mm³ (higher than 42% of 369 designs) |
Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.
3 options
Configure
Your selection
64-channel single-shank silicon probe, 10 mm — 50 μm, V64_CL100_50
V64_CL100_50Options
3 of 3V64 (110 mm cable) — 64-ch Omnetics
VC64 — 64-ch Omnetics
VNC64 — 64-ch
Loading the compatible products…
12 metrics
Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.
Top 8% of catalog designs · largest in its family
Sites 64 — higher than 92% of catalog designs and 100% of its family (the largest in its family, 27 designs)Top 58% of catalog designs · largest in its family
Shanks 1 — higher than 42% of catalog designs and 100% of its family (the largest in its family, 27 designs)Top 10% of catalog designs
Shank length 10 mm — higher than 90% of catalog designs and 70% of its familyTop 14% of catalog designs
Maximum site depth 9.97 mm — higher than 86% of catalog designs and 52% of its familyTop 63% of catalog designs
Minimum site depth 3.65 mm — higher than 37% of catalog designs and 11% of its familyTop 94% of catalog designs
Span, x 0.012 mm — higher than 6% of catalog designs and 52% of its familyTop 2% of catalog designs
Span, y 6.32 mm — higher than 98% of catalog designs and 96% of its familyTop 17% of catalog designs
Site pitch, y 0.1 µm — higher than 83% of catalog designs and 81% of its familyTop 59% of catalog designs
Site outline area 0.076 mm² — higher than 41% of catalog designs and 81% of its familyTop 12% of catalog designs
Neural interface volume 1.74 mm³ — higher than 88% of catalog designs and 93% of its familyTop 19% of catalog designs
Site coverage density 844.6 sites/mm² — higher than 81% of catalog designs and 63% of its familyTop 58% of catalog designs
Brain coverage density 36.68 sites/mm³ — higher than 42% of catalog designs and 52% of its family5 notes · The two things that decide a Vector implant · Builds and variants · Geometry …
3 downloads · 17 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · Deep Brain Targets with Vector Arrays …
Cited in 2,342 publications (product line)
