Neural Probes · Vector Array

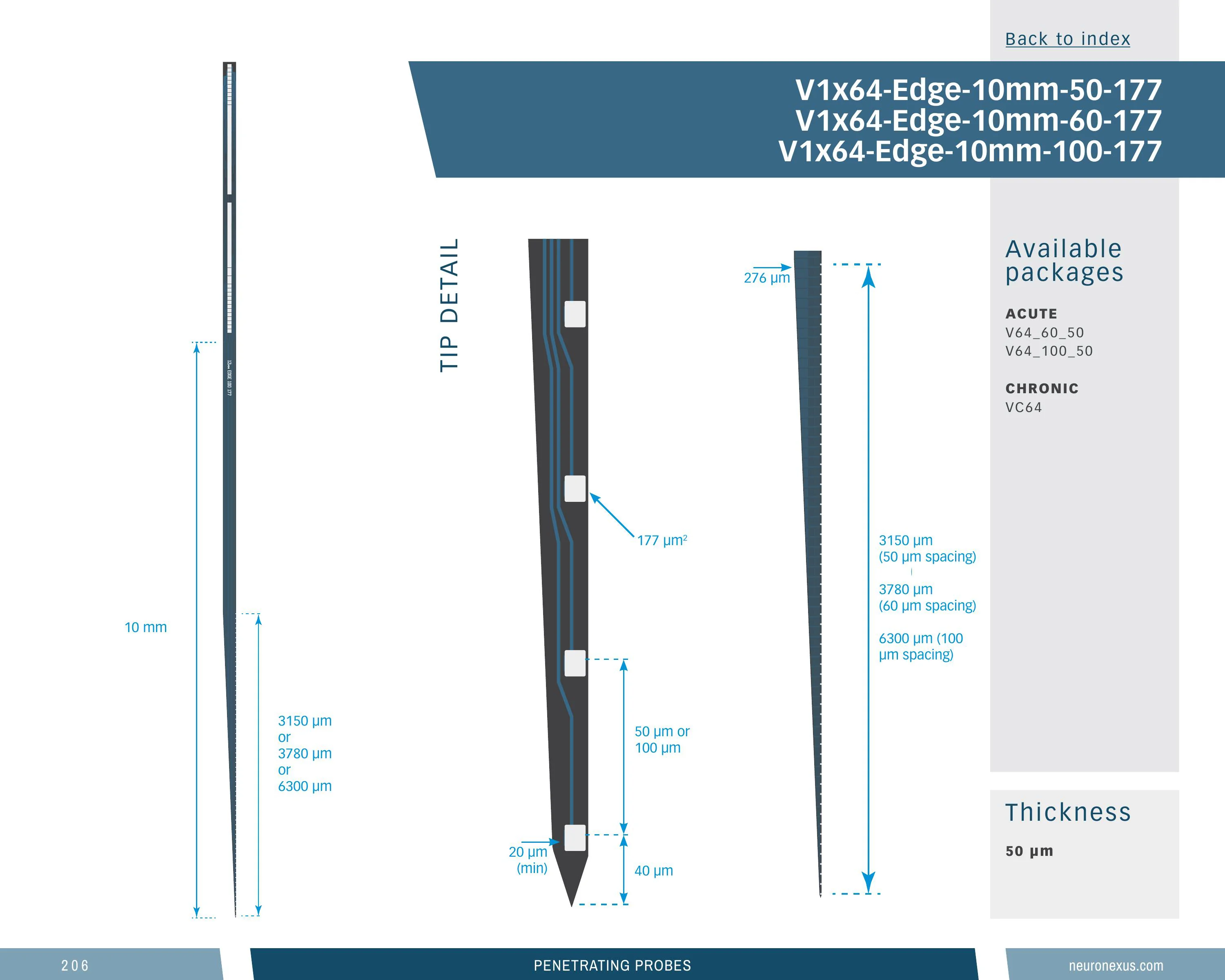

Vector Single-Shank 64-Channel Probe, 10 mm

64Sites
1Shanks
10mmShank Length
60µmSite Pitch
Part no.V1x64-Edge-10mm-60-177
Contents

64-site Vector probe, 60 µm pitch

A single long shank with sites along the shank's edge, closest to the tissue the probe faces. Among the 369 probe designs in the design space it sits at the top: 64 sites (a common choice — 65 of 369), 10 mm shanks (a common choice — 80 of 366), a 3.79 mm-deep site array (94th percentile), 1,405 sites/mm² (90th percentile) and a 1.1 mm³ neural interface (76th percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, spaced for a laminar profile. The long shank reaches deep targets.

Orders as a probe-plus-package assembly, in 4 package configurations. Silicon 50 µm thick. Z-coat available. Research use only.

Also known as

v1x64_edge_10mm_60_177

Vector Single-Shank 64-Channel Probe, 10 mmSKU prb_vec--v1x64_edge_10mm_60_177

13 specs

Channels64
Shanks1
Shank length10 mm
Site layoutEdge
Site area177 µm²
Site pitch60 µm
Vertical span3795 µm
SubstrateSilicon
Site materialIridium
Thickness50 µm
Neural interface volume1.100 mm³ (higher than 76% of 369 designs)
Site coverage density1,405.4 sites/mm² (higher than 90% of 369 designs)
Brain coverage density58.2 sites/mm³ (higher than 64% of 369 designs)
Vector Single-Shank 64-Channel Probe, 10 mmSKU prb_vec--v1x64_edge_10mm_60_177

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

4 options

Configure

Compatible Package
All
V64 (110 mm cable) — 64-ch Omnetics
V64 (70 mm cable) — 64-ch Omnetics
VC64 — 64-ch Omnetics
VNC64 — 64-ch

Your selection

64-channel single-shank silicon probe, 10 mm — 50 μm, V64_CL100_50
V64_CL100_50
Compatible Package: V64 (110 mm cable) — 64-ch Omnetics
SKUprb_vec--v1x64_edge_10mm_60_177.50um.v64_cl100_50
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

4 of 4
Vector Single-Shank 64-Channel Probe, 10 mmSKU prb_vec--v1x64_edge_10mm_60_177

Loading the compatible products…

Vector Single-Shank 64-Channel Probe, 10 mmSKU prb_vec--v1x64_edge_10mm_60_177

12 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
64
41024

Top 8% of catalog designs · largest in its family

Sites 64 — higher than 92% of catalog designs and 100% of its family (the largest in its family, 27 designs)
Shanks
1
116

Top 58% of catalog designs · largest in its family

Shanks 1 — higher than 42% of catalog designs and 100% of its family (the largest in its family, 27 designs)
Shank length
10 mm
1 mm60 mm

Top 10% of catalog designs

Shank length 10 mm — higher than 90% of catalog designs and 70% of its family
Maximum site depth
9.97 mm
0.972 mm51.29 mm

Top 14% of catalog designs

Maximum site depth 9.97 mm — higher than 86% of catalog designs and 52% of its family
Minimum site depth
6.17 mm
0.067 mm44.74 mm

Top 34% of catalog designs

Minimum site depth 6.17 mm — higher than 66% of catalog designs and 30% of its family
Span, x
0.012 mm
0.01 mm6.03 mm

Top 94% of catalog designs

Span, x 0.012 mm — higher than 6% of catalog designs and 52% of its family
Span, y
3.79 mm
0.01 mm10.55 mm

Top 6% of catalog designs

Span, y 3.79 mm — higher than 94% of catalog designs and 70% of its family
Site pitch, y
0.06 µm
0.01 µm1.5 µm

Top 43% of catalog designs

Site pitch, y 0.06 µm — higher than 57% of catalog designs and 52% of its family
Site outline area
0.046 mm²
0.002 mm²28.74 mm²

Top 71% of catalog designs

Site outline area 0.046 mm² — higher than 29% of catalog designs and 48% of its family
Neural interface volume
1.1 mm³
0.149 mm³17.19 mm³

Top 24% of catalog designs

Neural interface volume 1.1 mm³ — higher than 76% of catalog designs and 70% of its family
Site coverage density
1405.4 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 10% of catalog designs

Site coverage density 1405.4 sites/mm² — higher than 90% of catalog designs and 85% of its family
Brain coverage density
58.21 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 36% of catalog designs

Brain coverage density 58.21 sites/mm³ — higher than 64% of catalog designs and 74% of its family
Vector Single-Shank 64-Channel Probe, 10 mmSKU prb_vec--v1x64_edge_10mm_60_177

5 notes · The two things that decide a Vector implant · Builds and variants · Geometry …

Vector Single-Shank 64-Channel Probe, 10 mmSKU prb_vec--v1x64_edge_10mm_60_177

3 downloads · 17 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · Deep Brain Targets with Vector Arrays …

Vector Single-Shank 64-Channel Probe, 10 mmSKU prb_vec--v1x64_edge_10mm_60_177

Cited in 2,342 publications (product line)
