Neural Probes · Vector Array

Vector Single-Shank 64-Channel Probe, 10 mm

64Sites
1Shanks
10mmShank Length
25µmSite Pitch

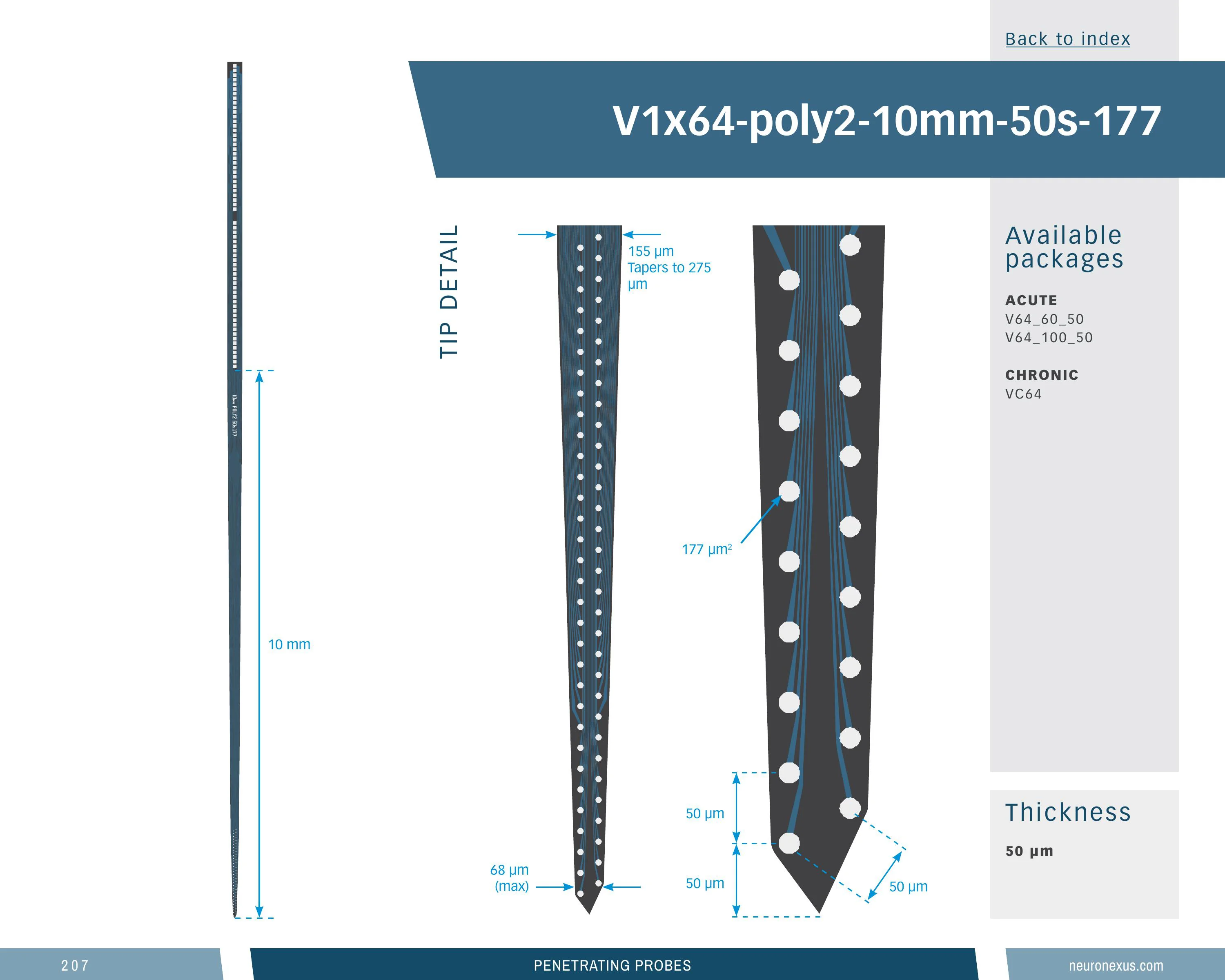

Part no.V1x64-Poly2-10mm-50s-177
Contents

64-site Vector probe, 25 µm pitch

A single long shank with sites staggered in two columns so neighbouring sites see the same units. Among the 369 probe designs in the design space it is mid-range: 64 sites (a common choice — 65 of 369), 10 mm shanks (a common choice — 80 of 366), a 1.59 mm-deep site array (78th percentile), 693 sites/mm² (73rd percentile) and a 0.58 mm³ neural interface (47th percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, packed densely enough to track a unit across neighbouring sites. The long shank reaches deep targets.

Orders as a probe-plus-package assembly, in 4 package configurations. Silicon 50 µm thick. Z-coat available. Research use only.

Also known as

v1x64_poly2_10mm_50s_177

Vector Single-Shank 64-Channel Probe, 10 mmSKU prb_vec--v1x64_poly2_10mm_50s_177

13 specs

Channels64
Shanks1
Shank length10 mm
Site layoutPoly2
Site area177 µm²
Site pitch25 µm
Vertical span1590 µm
SubstrateSilicon
Site materialIridium
Thickness50 µm
Neural interface volume0.583 mm³ (higher than 47% of 369 designs)
Site coverage density693.1 sites/mm² (higher than 73% of 369 designs)
Brain coverage density109.7 sites/mm³ (higher than 90% of 369 designs)
Vector Single-Shank 64-Channel Probe, 10 mmSKU prb_vec--v1x64_poly2_10mm_50s_177

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

4 options

Configure

Compatible Package
All
V64 (110 mm cable) — 64-ch Omnetics
V64 (70 mm cable) — 64-ch Omnetics
VC64 — 64-ch Omnetics
VNC64 — 64-ch

Your selection

64-channel single-shank silicon probe, 10 mm — 50 μm, V64_CL100_50
V64_CL100_50
Compatible Package: V64 (110 mm cable) — 64-ch Omnetics
SKUprb_vec--v1x64_poly2_10mm_50s_177.50um.v64_cl100_50
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

4 of 4
Vector Single-Shank 64-Channel Probe, 10 mmSKU prb_vec--v1x64_poly2_10mm_50s_177

Loading the compatible products…

Vector Single-Shank 64-Channel Probe, 10 mmSKU prb_vec--v1x64_poly2_10mm_50s_177

13 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
64
41024

Top 8% of catalog designs · largest in its family

Sites 64 — higher than 92% of catalog designs and 100% of its family (the largest in its family, 27 designs)
Shanks
1
116

Top 58% of catalog designs · largest in its family

Shanks 1 — higher than 42% of catalog designs and 100% of its family (the largest in its family, 27 designs)
Shank length
10 mm
1 mm60 mm

Top 10% of catalog designs

Shank length 10 mm — higher than 90% of catalog designs and 70% of its family
Maximum site depth
9.96 mm
0.972 mm51.29 mm

Top 24% of catalog designs

Maximum site depth 9.96 mm — higher than 76% of catalog designs and 22% of its family
Minimum site depth
8.37 mm
0.067 mm44.74 mm

Top 24% of catalog designs

Minimum site depth 8.37 mm — higher than 76% of catalog designs and 56% of its family
Span, x
0.058 mm
0.01 mm6.03 mm

Top 67% of catalog designs

Span, x 0.058 mm — higher than 33% of catalog designs and 81% of its family
Span, y
1.59 mm
0.01 mm10.55 mm

Top 22% of catalog designs

Span, y 1.59 mm — higher than 78% of catalog designs and 37% of its family
Site pitch, x
0.043 µm
0.012 µm0.57 µm

Top 23% of catalog designs

Site pitch, x 0.043 µm — higher than 77% of catalog designs and 67% of its family
Site pitch, y
0.025 µm
0.01 µm1.5 µm

Top 68% of catalog designs

Site pitch, y 0.025 µm — higher than 32% of catalog designs and 26% of its family
Site outline area
0.092 mm²
0.002 mm²28.74 mm²

Top 56% of catalog designs

Site outline area 0.092 mm² — higher than 44% of catalog designs and 85% of its family
Neural interface volume
0.583 mm³
0.149 mm³17.19 mm³

Top 53% of catalog designs

Neural interface volume 0.583 mm³ — higher than 47% of catalog designs and 37% of its family
Site coverage density
693.1 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 27% of catalog designs

Site coverage density 693.1 sites/mm² — higher than 73% of catalog designs and 41% of its family
Brain coverage density
109.7 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 10% of catalog designs

Brain coverage density 109.7 sites/mm³ — higher than 90% of catalog designs and 96% of its family
Vector Single-Shank 64-Channel Probe, 10 mmSKU prb_vec--v1x64_poly2_10mm_50s_177

5 notes · The two things that decide a Vector implant · Builds and variants · Geometry …

Vector Single-Shank 64-Channel Probe, 10 mmSKU prb_vec--v1x64_poly2_10mm_50s_177

3 downloads · 17 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · Deep Brain Targets with Vector Arrays …

Vector Single-Shank 64-Channel Probe, 10 mmSKU prb_vec--v1x64_poly2_10mm_50s_177

Cited in 2,342 publications (product line)
