Neural Probes · Vector Array

Vector Single-Shank 64-Channel Probe, 10 mm

64Sites
1Shanks
10mmShank Length
12.5µmSite Pitch

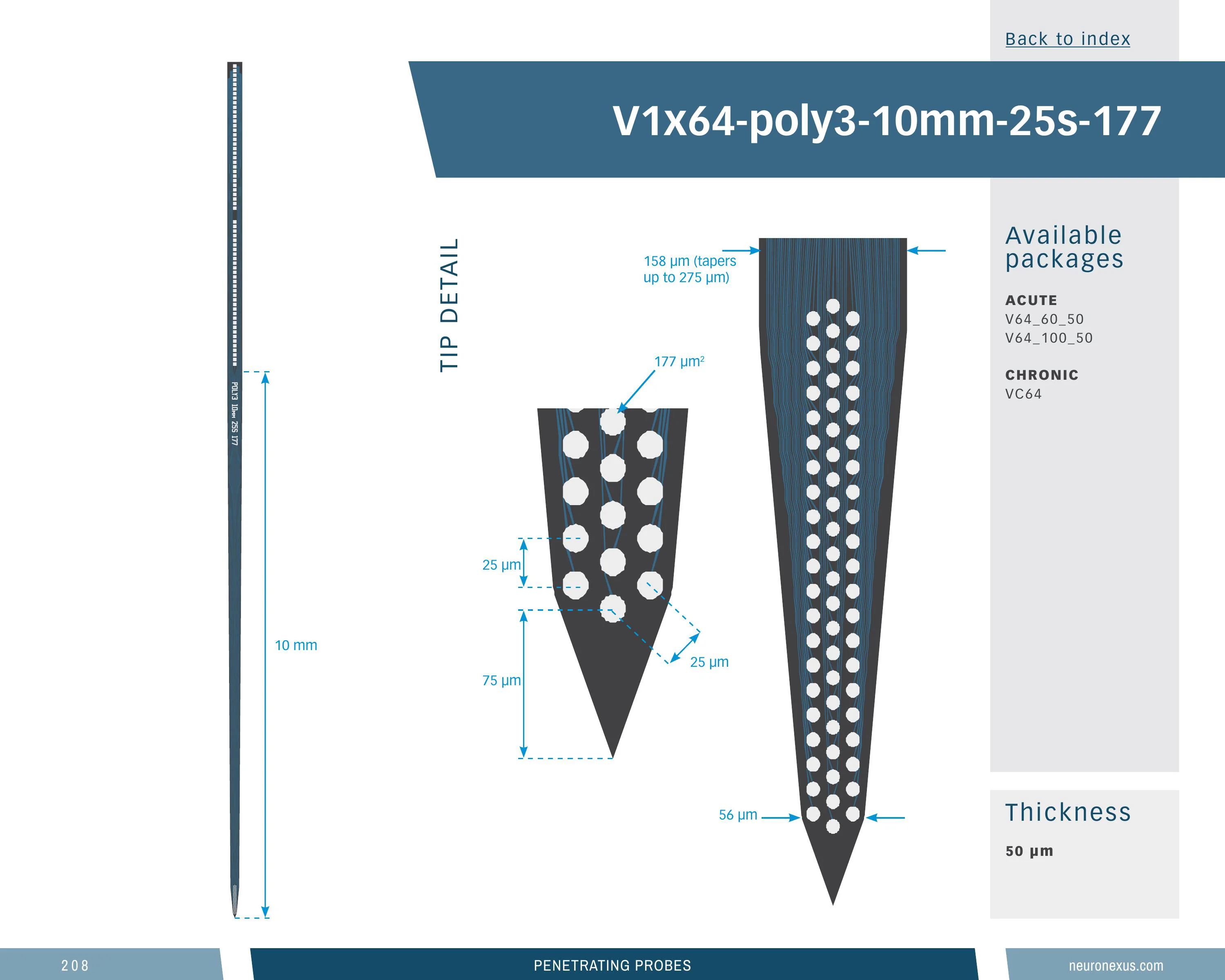

Part no.V1x64-Poly3-10mm-25s-177
Contents

64-site Vector probe, 12.5 µm pitch

A single long shank with sites staggered in three columns so neighbouring sites see the same units. Among the 369 probe designs in the design space it is mid-range: 64 sites (a common choice — 65 of 369), 10 mm shanks (a common choice — 80 of 366), a 0.54 mm-deep site array (29th percentile), 2,038 sites/mm² (96th percentile) and a 0.29 mm³ neural interface (10th percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, packed densely enough to track a unit across neighbouring sites. The long shank reaches deep targets.

Orders as a probe-plus-package assembly, in 4 package configurations. Silicon 50 µm thick. Z-coat not available on this close-spaced poly layout. Research use only.

Also known as

v1x64_poly3_10mm_25s_177

Vector Single-Shank 64-Channel Probe, 10 mmSKU prb_vec--v1x64_poly3_10mm_25s_177

13 specs

Channels64
Shanks1
Shank length10 mm
Site layoutPoly3
Site area177 µm²
Site pitch12.5 µm
Vertical span540 µm
SubstrateSilicon
Site materialIridium
Thickness50 µm
Neural interface volume0.290 mm³ (higher than 10% of 369 designs)
Site coverage density2,038.2 sites/mm² (higher than 96% of 369 designs)
Brain coverage density220.5 sites/mm³ (higher than 98% of 369 designs)
Vector Single-Shank 64-Channel Probe, 10 mmSKU prb_vec--v1x64_poly3_10mm_25s_177

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

4 options

Configure

Compatible Package
All
V64 — 64-ch Omnetics
V64 (110 mm cable) — 64-ch Omnetics
VC64 — 64-ch Omnetics
VNC64 — 64-ch

Your selection

64-channel single-shank silicon probe, 10 mm — 50 μm, V64
V64
Compatible Package: V64 — 64-ch Omnetics
SKUprb_vec--v1x64_poly3_10mm_25s_177.50um.v64
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

4 of 4
Vector Single-Shank 64-Channel Probe, 10 mmSKU prb_vec--v1x64_poly3_10mm_25s_177

Loading the compatible products…

Vector Single-Shank 64-Channel Probe, 10 mmSKU prb_vec--v1x64_poly3_10mm_25s_177

13 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
64
41024

Top 8% of catalog designs · largest in its family

Sites 64 — higher than 92% of catalog designs and 100% of its family (the largest in its family, 27 designs)
Shanks
1
116

Top 58% of catalog designs · largest in its family

Shanks 1 — higher than 42% of catalog designs and 100% of its family (the largest in its family, 27 designs)
Shank length
10 mm
1 mm60 mm

Top 10% of catalog designs

Shank length 10 mm — higher than 90% of catalog designs and 70% of its family
Maximum site depth
9.93 mm
0.972 mm51.29 mm

Top 29% of catalog designs

Maximum site depth 9.93 mm — higher than 71% of catalog designs and 4% of its family
Minimum site depth
9.39 mm
0.067 mm44.74 mm

Top 13% of catalog designs

Minimum site depth 9.39 mm — higher than 87% of catalog designs and 74% of its family
Span, x
0.058 mm
0.01 mm6.03 mm

Top 64% of catalog designs

Span, x 0.058 mm — higher than 36% of catalog designs and 96% of its family
Span, y
0.54 mm
0.01 mm10.55 mm

Top 71% of catalog designs

Span, y 0.54 mm — higher than 29% of catalog designs and 7% of its family
Site pitch, x
0.022 µm
0.012 µm0.57 µm

Top 42% of catalog designs

Site pitch, x 0.022 µm — higher than 58% of catalog designs and 44% of its family
Site pitch, y
0.013 µm
0.01 µm1.5 µm

Top 94% of catalog designs

Site pitch, y 0.013 µm — higher than 6% of catalog designs and 4% of its family
Site outline area
0.031 mm²
0.002 mm²28.74 mm²

Top 79% of catalog designs

Site outline area 0.031 mm² — higher than 21% of catalog designs and 26% of its family
Neural interface volume
0.29 mm³
0.149 mm³17.19 mm³

Top 90% of catalog designs

Neural interface volume 0.29 mm³ — higher than 10% of catalog designs and 7% of its family
Site coverage density
2038.2 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 4% of catalog designs · largest in its family

Site coverage density 2038.2 sites/mm² — higher than 96% of catalog designs and 100% of its family (the largest in its family, 27 designs)
Brain coverage density
220.5 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 2% of catalog designs · largest in its family

Brain coverage density 220.5 sites/mm³ — higher than 98% of catalog designs and 100% of its family (the largest in its family, 27 designs)
Vector Single-Shank 64-Channel Probe, 10 mmSKU prb_vec--v1x64_poly3_10mm_25s_177

5 notes · The two things that decide a Vector implant · Builds and variants · Geometry …

Vector Single-Shank 64-Channel Probe, 10 mmSKU prb_vec--v1x64_poly3_10mm_25s_177

3 downloads · 17 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · Deep Brain Targets with Vector Arrays …

Vector Single-Shank 64-Channel Probe, 10 mmSKU prb_vec--v1x64_poly3_10mm_25s_177

Cited in 2,342 publications (product line)
