Neural Probes · Vector Array

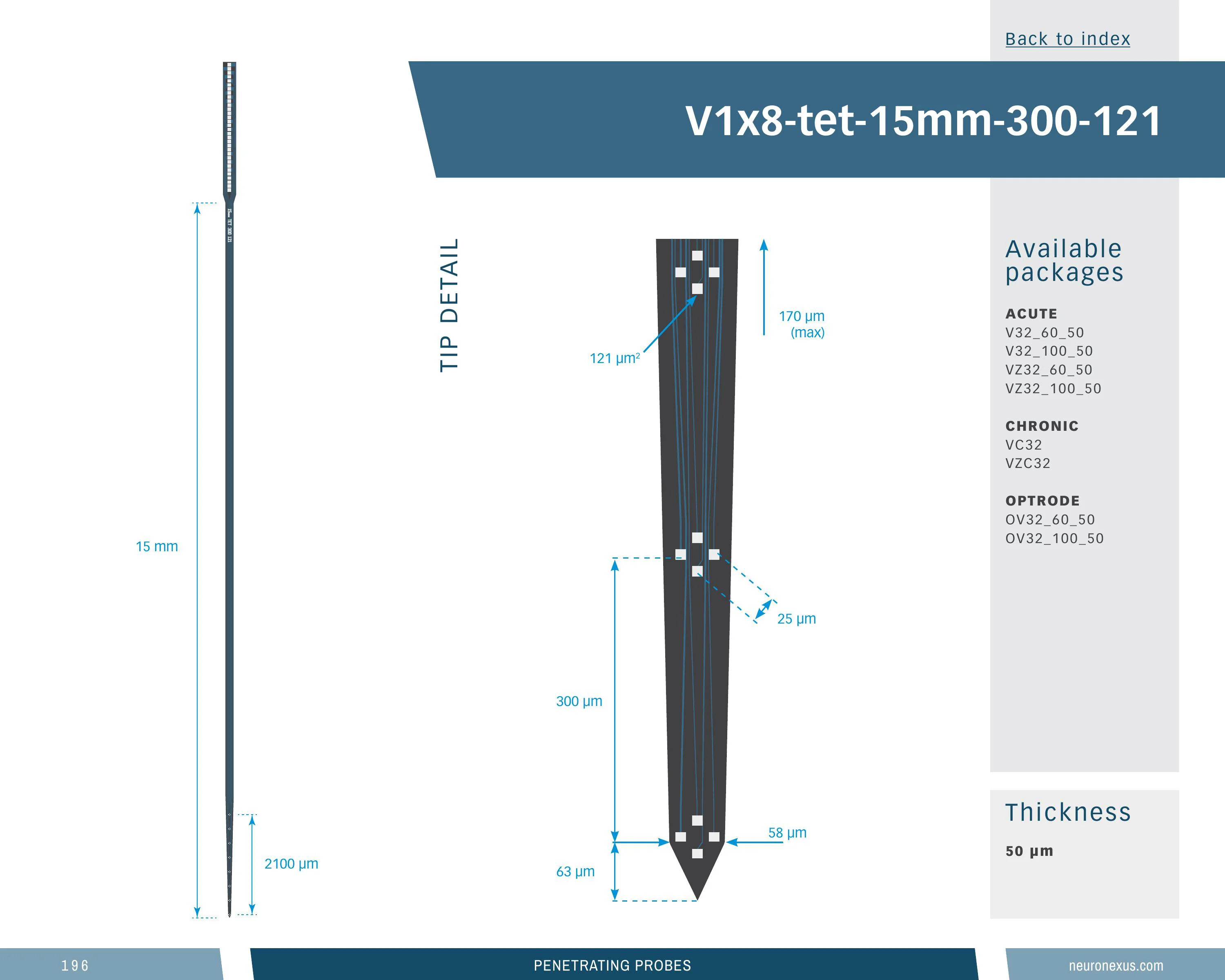

Vector Single-Shank 32-Channel Probe, 15 mm

32Sites
1Shanks
15mmShank Length
17.68µmSite Pitch
Part no.V1x8-tet-15mm-300-121
Contents

32-site Vector probe, 15 mm

A single long shank with sites grouped in tetrodes at intervals, for unit isolation at set depths. Among the 369 probe designs in the design space it is mid-range: 32 sites (a common choice — 158 of 369), 15 mm shanks (98th percentile of the 366 measured), a 2.15 mm-deep site array (82nd percentile), 322 sites/mm² (57th percentile) and a 0.72 mm³ neural interface (59th percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, packed densely enough to track a unit across neighbouring sites. The long shank reaches deep targets.

Orders as a probe-plus-package assembly, in 9 package configurations, 3 of them microdrive-compatible. Silicon 50 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

v1x8_tet_15mm_300_121

Vector Single-Shank 32-Channel Probe, 15 mmSKU prb_vec--v1x8_tet_15mm_300_121

13 specs

Channels32
Shanks1
Shank length15 mm
Site layoutTetrode
Site area121 µm²
Site pitch17.68 µm
Vertical span2146 µm
SubstrateSilicon
Site materialIridium
Thickness50 µm
Neural interface volume0.723 mm³ (higher than 59% of 369 designs)
Site coverage density321.6 sites/mm² (higher than 57% of 369 designs)
Brain coverage density44.3 sites/mm³ (higher than 47% of 369 designs)
Vector Single-Shank 32-Channel Probe, 15 mmSKU prb_vec--v1x8_tet_15mm_300_121

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

9 options

Configure

Compatible Package
All
H32 — 32-ch Omnetics
HZ32 — 32-ch Hirose
OV32LP_100_50 — 32-ch
OV32LP_115_50 — 32-ch
V32_107_50 — 32-ch
v32_cl100_50
VC32 — 32-ch Omnetics
VZ32 — 32-ch Hirose
VZC32 — 32-ch Hirose

Your selection

32-channel single-shank silicon probe, 15 mm — 50 μm, v32_cl100_50
V32_CL100_50
Compatible Package: v32_cl100_50
SKUprb_vec--v1x8_tet_15mm_300_121.50um.v32_cl100_50
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

9 of 9
Vector Single-Shank 32-Channel Probe, 15 mmSKU prb_vec--v1x8_tet_15mm_300_121

Loading the compatible products…

Vector Single-Shank 32-Channel Probe, 15 mmSKU prb_vec--v1x8_tet_15mm_300_121

13 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
32
41024

Top 26% of catalog designs

Sites 32 — higher than 74% of catalog designs and 70% of its family
Shanks
1
116

Top 58% of catalog designs · largest in its family

Shanks 1 — higher than 42% of catalog designs and 100% of its family (the largest in its family, 27 designs)
Shank length
15 mm
1 mm60 mm

Top 2% of catalog designs · largest in its family

Shank length 15 mm — higher than 98% of catalog designs and 100% of its family (the largest in its family, 27 designs)
Maximum site depth
14.96 mm
0.972 mm51.29 mm

Top 5% of catalog designs

Maximum site depth 14.96 mm — higher than 95% of catalog designs and 89% of its family
Minimum site depth
12.81 mm
0.067 mm44.74 mm

Top 4% of catalog designs

Minimum site depth 12.81 mm — higher than 96% of catalog designs and 89% of its family
Span, x
0.046 mm
0.01 mm6.03 mm

Top 68% of catalog designs

Span, x 0.046 mm — higher than 32% of catalog designs and 70% of its family
Span, y
2.15 mm
0.01 mm10.55 mm

Top 18% of catalog designs

Span, y 2.15 mm — higher than 82% of catalog designs and 48% of its family
Site pitch, x
0.018 µm
0.012 µm0.57 µm

Top 48% of catalog designs

Site pitch, x 0.018 µm — higher than 52% of catalog designs and 33% of its family
Site pitch, y
0.018 µm
0.01 µm1.5 µm

Top 85% of catalog designs

Site pitch, y 0.018 µm — higher than 15% of catalog designs and 11% of its family
Site outline area
0.1 mm²
0.002 mm²28.74 mm²

Top 54% of catalog designs

Site outline area 0.1 mm² — higher than 46% of catalog designs and 89% of its family
Neural interface volume
0.723 mm³
0.149 mm³17.19 mm³

Top 41% of catalog designs

Neural interface volume 0.723 mm³ — higher than 59% of catalog designs and 48% of its family
Site coverage density
321.6 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 43% of catalog designs

Site coverage density 321.6 sites/mm² — higher than 57% of catalog designs and 19% of its family
Brain coverage density
44.26 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 53% of catalog designs

Brain coverage density 44.26 sites/mm³ — higher than 47% of catalog designs and 59% of its family
Vector Single-Shank 32-Channel Probe, 15 mmSKU prb_vec--v1x8_tet_15mm_300_121

5 notes · The two things that decide a Vector implant · Builds and variants · Geometry …

Vector Single-Shank 32-Channel Probe, 15 mmSKU prb_vec--v1x8_tet_15mm_300_121

3 downloads · 17 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · Deep Brain Targets with Vector Arrays …

Vector Single-Shank 32-Channel Probe, 15 mmSKU prb_vec--v1x8_tet_15mm_300_121

Cited in 2,342 publications (product line)
