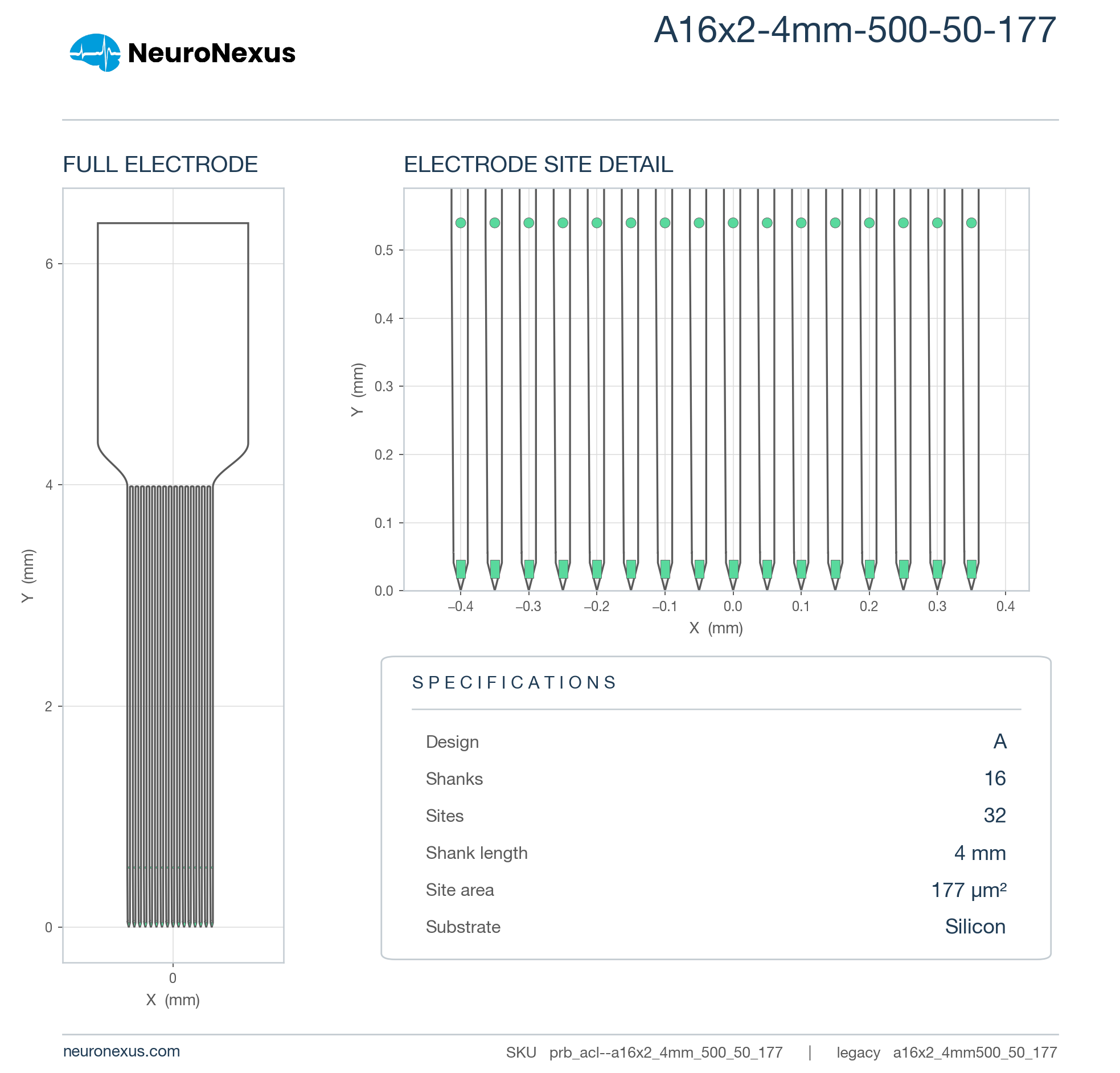

32-site A-Series probe, 16 shanks, 4 mm
Sixteen mid-length shanks side by side, closely spaced for coverage within one structure, with sites spread evenly down each, one per row, for a profile across depth. Among the 369 probe designs in the design space it is mid-range: 32 sites (a common choice — 158 of 369), 4 mm shanks (22nd percentile of the 366 measured), a 0.52 mm-deep site array (28th percentile), 81 sites/mm² (33rd percentile) and a 0.64 mm³ neural interface (50th percentile).
Small sites read a local patch at higher impedance, sharpening single-unit isolation, spaced widely to span a structure rather than resolve within it. The mid-length shanks reach structures a few millimetres down.
Orders as a probe-plus-package assembly, in 4 package configurations. Silicon 15 µm thick. Z-coat available. Research use only.
a16x2_4mm500_50_177
13 specs
| Channels | 32 |
|---|---|
| Shanks | 16 |
| Shank length | 4 mm |
| Shank separation | 50 µm |
| Site area | 177 µm² |
| Site pitch | 500 µm |
| Vertical span | 515 µm |
| Substrate | Silicon |
|---|---|
| Site material | Iridium |
| Thickness | 15 µm |
| Neural interface volume | 0.642 mm³ (higher than 50% of 369 designs) |
| Site coverage density | 81.2 sites/mm² (higher than 33% of 369 designs) |
| Brain coverage density | 49.8 sites/mm³ (higher than 57% of 369 designs) |
Narrow the options with the filters or pick a card, then contact us to order that configuration.
4 options
Configure
Your selection
32-channel 16-shank silicon probe, 4 mm — 15 μm, A32
A32Options
4 of 4A32 — 32-ch Samtec
H32 (21 mm cable) — 32-ch Omnetics
X3_32 — 32-ch Molex
X3_H32 (21 mm cable) — 32-ch Molex
Loading the compatible products…
13 metrics
Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.
Top 26% of catalog designs
Sites 32 — higher than 74% of catalog designs and 79% of its familyLargest among catalog designs · largest in its family
Shanks 16 — higher than 100% of catalog designs and 100% of its family (the largest in its family, 180 designs)Top 78% of catalog designs
Shank length 4 mm — higher than 22% of catalog designs and 27% of its familyTop 98% of catalog designs
Shank separation 0.05 mm — higher than 2% of catalog designs and 4% of its familyTop 78% of catalog designs
Maximum site depth 3.96 mm — higher than 22% of catalog designs and 27% of its familyTop 68% of catalog designs
Minimum site depth 3.44 mm — higher than 32% of catalog designs and 38% of its familyTop 28% of catalog designs
Span, x 0.765 mm — higher than 72% of catalog designs and 71% of its familyTop 72% of catalog designs
Span, y 0.515 mm — higher than 28% of catalog designs and 22% of its familyTop 1% of catalog designs · largest in its family
Site pitch, y 0.5 µm — higher than 99% of catalog designs and 100% of its family (the largest in its family, 171 designs)Top 37% of catalog designs
Site outline area 0.394 mm² — higher than 63% of catalog designs and 61% of its familyTop 50% of catalog designs
Neural interface volume 0.642 mm³ — higher than 50% of catalog designs and 47% of its familyTop 67% of catalog designs
Site coverage density 81.22 sites/mm² — higher than 33% of catalog designs and 35% of its familyTop 43% of catalog designs
Brain coverage density 49.84 sites/mm³ — higher than 57% of catalog designs and 65% of its family3 notes · Geometry · Construction · Packaging and connector options
