Neural Probes · A-Series

Linear 16-Shank 128-Channel Probe, 5 mm

128Sites
16Shanks
5mmShank Length
30µmSite Pitch

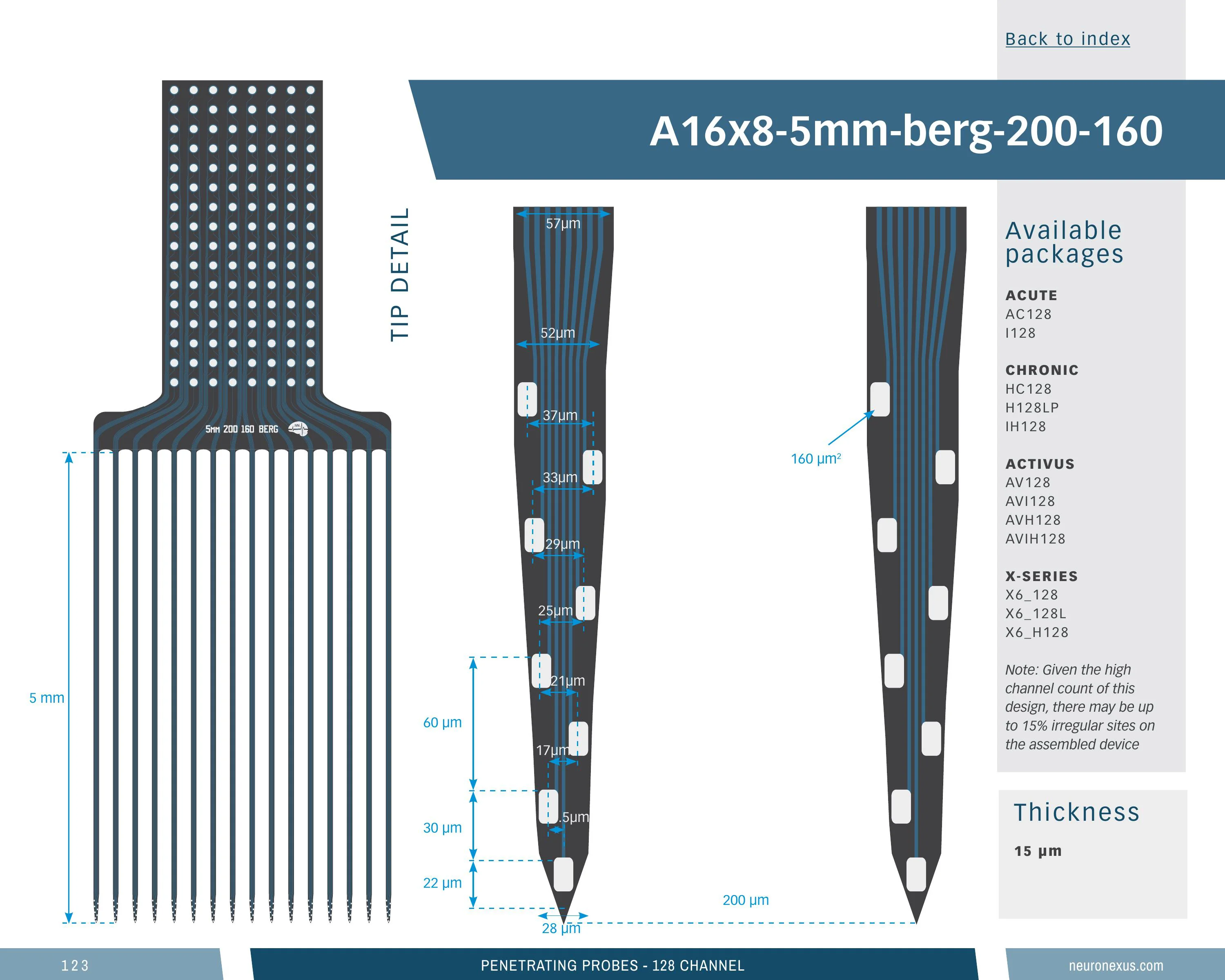

Part no.A16x8-5mm-berg-200-160
Contents

128-site A-Series probe, 16 shanks

Sixteen mid-length shanks side by side, closely spaced for coverage within one structure, with sites spread evenly down each, one per row, for a profile across depth. Among the 369 probe designs in the design space it is mid-range: 128 sites (96th percentile), 5 mm shanks (a common choice — 108 of 366), a 0.23 mm-deep site array (14th percentile), 187 sites/mm² (46th percentile) and a 1.29 mm³ neural interface (81st percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, packed densely enough to track a unit across neighbouring sites. The mid-length shanks reach structures a few millimetres down.

Orders as a probe-plus-package assembly, in 10 package configurations, 3 of them microdrive-compatible. Silicon 15 µm thick. Z-coat available. Research use only.

Also known as

A16x8-5mm-berg-200-160 · a16x8_5mm_berg_200_160

Linear 16-Shank 128-Channel Probe, 5 mmSKU prb_acl--a16x8_5mm_berg_200_160NetSuite 6944

13 specs

Channels128
Shanks16
Shank length5 mm
Shank separation200 µm
Site area160 µm²
Site pitch30 µm
Vertical span225 µm
SubstrateSilicon
Site materialIridium
Thickness15 µm
Neural interface volume1.286 mm³ (higher than 81% of 369 designs)
Site coverage density186.6 sites/mm² (higher than 46% of 369 designs)
Brain coverage density99.5 sites/mm³ (higher than 88% of 369 designs)
NetSuite ID

6944

Linear 16-Shank 128-Channel Probe, 5 mmSKU prb_acl--a16x8_5mm_berg_200_160NetSuite 6944

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

10 options

Configure

Compatible Package
All
AV128 — 128-ch
AVH128 — 128-ch
AVI128 — 128-ch Omnetics
AVIH128 — 128-ch Omnetics
H128LP — 128-ch Omnetics
I128 — 128-ch
IH128 — 128-ch
X6_128 — 128-ch Panasonic
X6_128L — 128-ch Panasonic
X6_H128 — 128-ch Panasonic

Your selection

128-channel 16-shank silicon probe, 5 mm — 15 μm, AVIH128
AVIH128
Compatible Package: AVIH128 — 128-ch Omnetics
SKUprb_acl--a16x8_5mm_berg_200_160.15um.avih128
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

10 of 10
Linear 16-Shank 128-Channel Probe, 5 mmSKU prb_acl--a16x8_5mm_berg_200_160NetSuite 6944

Loading the compatible products…

Linear 16-Shank 128-Channel Probe, 5 mmSKU prb_acl--a16x8_5mm_berg_200_160NetSuite 6944

13 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
128
41024

Top 4% of catalog designs

Sites 128 — higher than 96% of catalog designs and 98% of its family
Shanks
16
116

Largest among catalog designs · largest in its family

Shanks 16 — higher than 100% of catalog designs and 100% of its family (the largest in its family, 180 designs)
Shank length
5 mm
1 mm60 mm

Top 48% of catalog designs

Shank length 5 mm — higher than 52% of catalog designs and 61% of its family
Shank separation
0.2 mm
0.05 mm1.8 mm

Top 35% of catalog designs

Shank separation 0.2 mm — higher than 65% of catalog designs and 68% of its family
Maximum site depth
4.99 mm
0.972 mm51.29 mm

Top 50% of catalog designs

Maximum site depth 4.99 mm — higher than 50% of catalog designs and 61% of its family
Minimum site depth
4.76 mm
0.067 mm44.74 mm

Top 41% of catalog designs

Minimum site depth 4.76 mm — higher than 59% of catalog designs and 71% of its family
Span, x
3.05 mm
0.01 mm6.03 mm

Top 1% of catalog designs

Span, x 3.05 mm — higher than 99% of catalog designs and 98% of its family
Span, y
0.225 mm
0.01 mm10.55 mm

Top 86% of catalog designs

Span, y 0.225 mm — higher than 14% of catalog designs and 9% of its family
Site pitch, y
0.03 µm
0.01 µm1.5 µm

Top 65% of catalog designs

Site pitch, y 0.03 µm — higher than 35% of catalog designs and 11% of its family
Site outline area
0.686 mm²
0.002 mm²28.74 mm²

Top 25% of catalog designs

Site outline area 0.686 mm² — higher than 75% of catalog designs and 75% of its family
Neural interface volume
1.29 mm³
0.149 mm³17.19 mm³

Top 19% of catalog designs

Neural interface volume 1.29 mm³ — higher than 81% of catalog designs and 84% of its family
Site coverage density
186.6 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 54% of catalog designs

Site coverage density 186.6 sites/mm² — higher than 46% of catalog designs and 52% of its family
Brain coverage density
99.52 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 12% of catalog designs

Brain coverage density 99.52 sites/mm³ — higher than 88% of catalog designs and 93% of its family
Linear 16-Shank 128-Channel Probe, 5 mmSKU prb_acl--a16x8_5mm_berg_200_160NetSuite 6944

4 notes · Spending a fixed site budget · Geometry · Construction …

Linear 16-Shank 128-Channel Probe, 5 mmSKU prb_acl--a16x8_5mm_berg_200_160NetSuite 6944

22 links · A Brief History of Neural Electrode Technology · Care, Use and Handling · Choosing an Electrode for Your Experiment …

Linear 16-Shank 128-Channel Probe, 5 mmSKU prb_acl--a16x8_5mm_berg_200_160NetSuite 6944

Cited in 2,342 publications (product line)
