Neural Probes · A-Series

Linear Single-Shank 16-Channel Probe, 10 mm

16Sites
1Shanks
10mmShank Length
100µmSite Pitch
Part no.A1x16-10mm-100-177
Contents

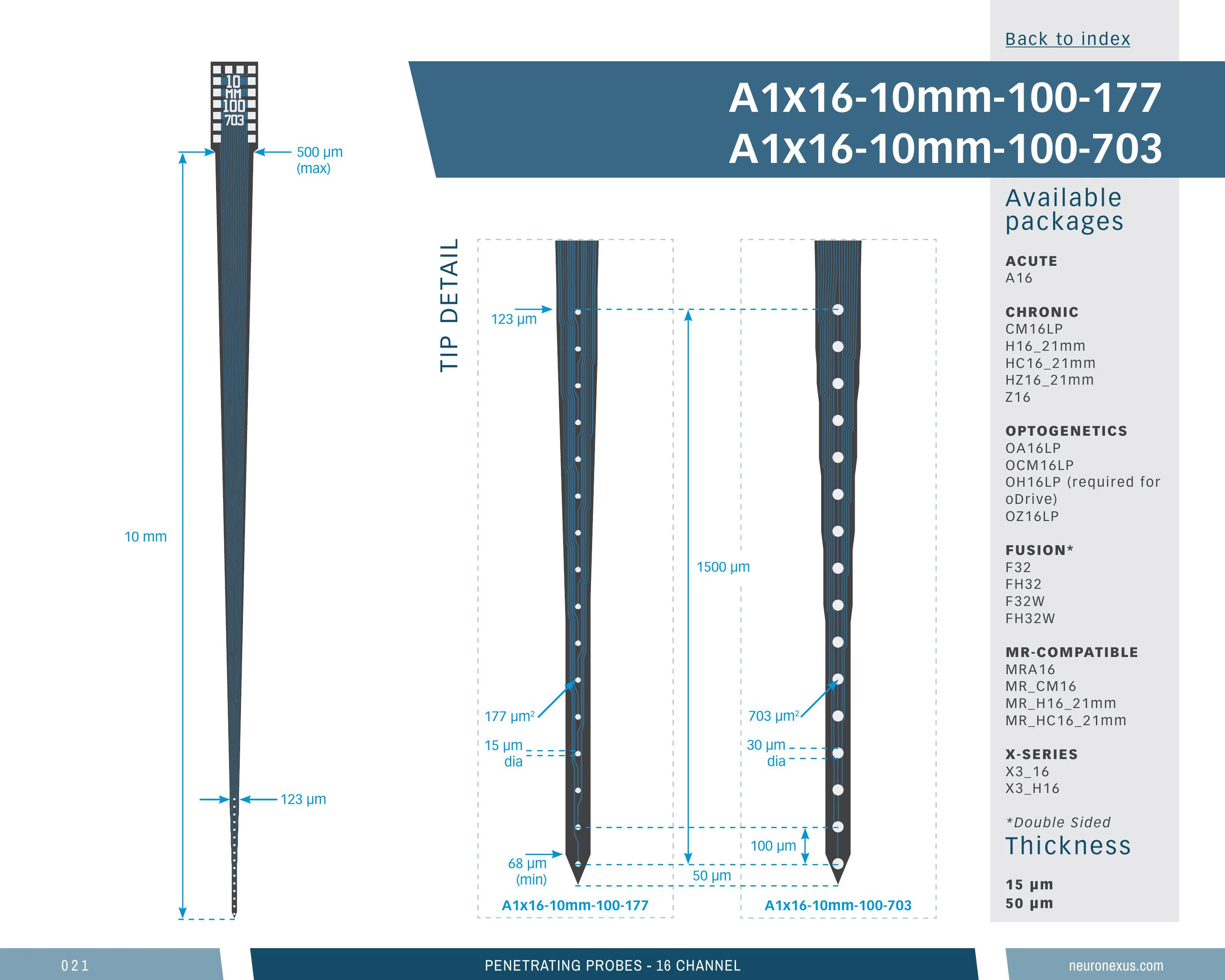

16-site A-Series probe, 1 shank, 10 mm, 177 µm², 100 µm pitch

A single long shank with sites spread evenly down the shank, one per row, for a profile across depth. Among the 369 probe designs in the design space it is mid-range: 16 sites (a common choice — 84 of 369), 10 mm shanks (a common choice — 80 of 366), a 1.51 mm-deep site array (69th percentile), 712 sites/mm² (78th percentile) and a 0.52 mm³ neural interface (34th percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, spaced for a laminar profile. The long shank reaches deep targets.

Orders as a probe-plus-package assembly, in 27 package configurations, 2 of them microdrive-compatible. Silicon 15 or 50 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

a1x16_10mm_100_177

Linear Single-Shank 16-Channel Probe, 10 mmSKU prb_acl--a1x16_10mm_100_177

12 specs

Channels16
Shanks1
Shank length10 mm
Site area177 µm²
Site pitch100 µm
Vertical span1515 µm
SubstrateSilicon
Site materialIridium
Thickness15, 50 µm
Neural interface volume0.519 mm³ (higher than 34% of 369 designs)
Site coverage density711.9 sites/mm² (higher than 78% of 369 designs)
Brain coverage density30.8 sites/mm³ (higher than 30% of 369 designs)
Linear Single-Shank 16-Channel Probe, 10 mmSKU prb_acl--a1x16_10mm_100_177

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

54 options

Configure

Substrate Thickness
All
15 μm
50 μm
Compatible Package
All
A16 — 16-ch
CM16_DUAL — 16-ch Omnetics
CM16LP — 16-ch Omnetics
CM32_DUAL16 — 32-ch Omnetics
D16 — 16-ch
DM16 — 16-ch Omnetics
F32 — 32-ch Omnetics
F32W — 32-ch Omnetics
FH32 — 32-ch Omnetics
FH32W — 32-ch Omnetics
H16 (21 mm cable) — 16-ch Omnetics
HC16 (21 mm cable) — 16-ch Omnetics
HZ16 (21 mm cable) — 16-ch Hirose
IVA16 — 16-ch
MRA16 — 16-ch
MRCM16LP — 16-ch Omnetics
MRH16 (21 mm cable) — 16-ch Omnetics
MROCM16LP — 16-ch Omnetics
MROCM16LP_V2 — 16-ch Omnetics
OA16LP — 16-ch
OCM16LP — 16-ch Omnetics
OH16LP — 16-ch Omnetics
OHZ16LP — 16-ch Hirose
OZ16LP — 16-ch Hirose
X3_16 — 16-ch Molex
X3_H16 (21 mm cable) — 16-ch Molex
Z16 — 16-ch Hirose

Your selection

16-channel single-shank silicon probe, 10 mm — 15 μm, A16
A16
Substrate Thickness: 15 μm
Compatible Package: A16 — 16-ch
SKUprb_acl--a1x16_10mm_100_177.15um.a16
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

54 of 54
Linear Single-Shank 16-Channel Probe, 10 mmSKU prb_acl--a1x16_10mm_100_177

Loading the compatible products…

Linear Single-Shank 16-Channel Probe, 10 mmSKU prb_acl--a1x16_10mm_100_177

12 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
16
41024

Top 70% of catalog designs

Sites 16 — higher than 30% of catalog designs and 34% of its family
Shanks
1
116

Top 58% of catalog designs

Shanks 1 — higher than 42% of catalog designs and 40% of its family
Shank length
10 mm
1 mm60 mm

Top 10% of catalog designs

Shank length 10 mm — higher than 90% of catalog designs and 94% of its family
Maximum site depth
9.95 mm
0.972 mm51.29 mm

Top 26% of catalog designs

Maximum site depth 9.95 mm — higher than 74% of catalog designs and 78% of its family
Minimum site depth
8.44 mm
0.067 mm44.74 mm

Top 21% of catalog designs

Minimum site depth 8.44 mm — higher than 79% of catalog designs and 86% of its family
Span, x
0.015 mm
0.01 mm6.03 mm

Top 86% of catalog designs

Span, x 0.015 mm — higher than 14% of catalog designs and 14% of its family
Span, y
1.51 mm
0.01 mm10.55 mm

Top 31% of catalog designs

Span, y 1.51 mm — higher than 69% of catalog designs and 69% of its family
Site pitch, y
0.1 µm
0.01 µm1.5 µm

Top 17% of catalog designs

Site pitch, y 0.1 µm — higher than 83% of catalog designs and 80% of its family
Site outline area
0.022 mm²
0.002 mm²28.74 mm²

Top 86% of catalog designs

Site outline area 0.022 mm² — higher than 14% of catalog designs and 14% of its family
Neural interface volume
0.519 mm³
0.149 mm³17.19 mm³

Top 66% of catalog designs

Neural interface volume 0.519 mm³ — higher than 34% of catalog designs and 26% of its family
Site coverage density
711.9 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 22% of catalog designs

Site coverage density 711.9 sites/mm² — higher than 78% of catalog designs and 81% of its family
Brain coverage density
30.85 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 70% of catalog designs

Brain coverage density 30.85 sites/mm³ — higher than 30% of catalog designs and 32% of its family
Linear Single-Shank 16-Channel Probe, 10 mmSKU prb_acl--a1x16_10mm_100_177

4 notes · Spending a fixed site budget · Geometry · Construction …

Linear Single-Shank 16-Channel Probe, 10 mmSKU prb_acl--a1x16_10mm_100_177

22 links · A Brief History of Neural Electrode Technology · Care, Use and Handling · Choosing an Electrode for Your Experiment …

Linear Single-Shank 16-Channel Probe, 10 mmSKU prb_acl--a1x16_10mm_100_177

Cited in 2,342 publications (product line)
