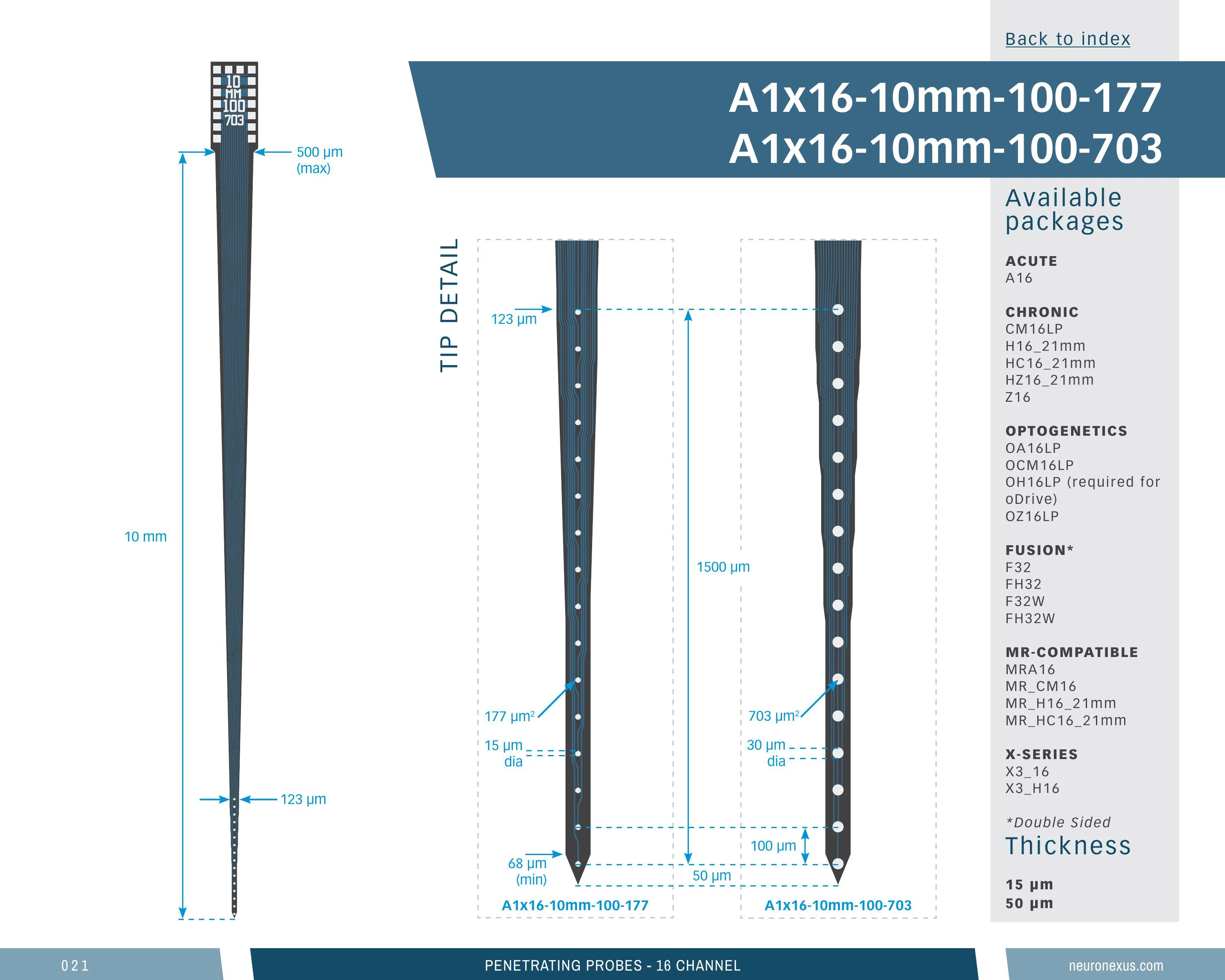

Linear Single-Shank 16-Channel Probe, 10 mm
16-site A-Series probe, 1 shank, 10 mm, 703 µm²
A single long shank with sites spread evenly down the shank, one per row, for a profile across depth. Among the 369 probe designs in the design space it is mid-range: 16 sites (a common choice — 84 of 369), 10 mm shanks (a common choice — 80 of 366), a 1.53 mm-deep site array (73rd percentile), 352 sites/mm² (59th percentile) and a 0.54 mm³ neural interface (41st percentile).
Large sites read a wider patch at lower impedance, suited to field potentials and multi-unit activity, spaced for a laminar profile. The long shank reaches deep targets.
Orders as a probe-plus-package assembly, in 27 package configurations, 2 of them microdrive-compatible. Silicon 15 or 50 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.
a1x16_10mm_100_703
12 specs
| Channels | 16 |
|---|---|
| Shanks | 1 |
| Shank length | 10 mm |
| Site area | 703 µm² |
| Site pitch | 100 µm |
| Vertical span | 1530 µm |
| Substrate | Silicon |
| Site material | Iridium |
| Thickness | 15, 50 µm |
| Neural interface volume | 0.538 mm³ (higher than 41% of 369 designs) |
| Site coverage density | 352.4 sites/mm² (higher than 59% of 369 designs) |
| Brain coverage density | 29.8 sites/mm³ (higher than 23% of 369 designs) |
Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.
54 options
Configure
Your selection
16-channel single-shank silicon probe, 10 mm — 15 μm, A16
A16Options
54 of 5415 μm · A16 — 16-ch
15 μm · CM16LP — 16-ch Omnetics
15 μm · D16 — 16-ch
15 μm · DM16 — 16-ch Omnetics
15 μm · H16 (21 mm cable) — 16-ch Omnetics
15 μm · HC16 (21 mm cable) — 16-ch Omnetics
15 μm · HZ16 (21 mm cable) — 16-ch Hirose
15 μm · MRA16 — 16-ch
15 μm · MRCM16LP — 16-ch Omnetics
15 μm · OA16LP — 16-ch
15 μm · OCM16LP — 16-ch Omnetics
15 μm · OH16LP — 16-ch Omnetics
15 μm · OZ16LP — 16-ch Hirose
15 μm · X3_16 — 16-ch Molex
15 μm · X3_H16 (21 mm cable) — 16-ch Molex
15 μm · Z16 — 16-ch Hirose
50 μm · A16 — 16-ch
50 μm · CM16LP — 16-ch Omnetics
50 μm · D16 — 16-ch
50 μm · DM16 — 16-ch Omnetics
50 μm · H16 (21 mm cable) — 16-ch Omnetics
50 μm · HC16 (21 mm cable) — 16-ch Omnetics
50 μm · HZ16 (21 mm cable) — 16-ch Hirose
50 μm · MRA16 — 16-ch
50 μm · MRCM16LP — 16-ch Omnetics
50 μm · OA16LP — 16-ch
50 μm · OCM16LP — 16-ch Omnetics
50 μm · OH16LP — 16-ch Omnetics
50 μm · OZ16LP — 16-ch Hirose
50 μm · X3_16 — 16-ch Molex
50 μm · X3_H16 (21 mm cable) — 16-ch Molex
50 μm · Z16 — 16-ch Hirose
15 μm · CM16_DUAL — 16-ch Omnetics
50 μm · CM16_DUAL — 16-ch Omnetics
15 μm · CM32_DUAL16 — 32-ch Omnetics
50 μm · CM32_DUAL16 — 32-ch Omnetics
15 μm · MROCM16LP — 16-ch Omnetics
50 μm · MROCM16LP — 16-ch Omnetics
15 μm · MROCM16LP_V2 — 16-ch Omnetics
50 μm · MROCM16LP_V2 — 16-ch Omnetics
15 μm · MRH16 — 16-ch Omnetics
50 μm · MRH16 — 16-ch Omnetics
15 μm · OHZ16LP — 16-ch Hirose
50 μm · OHZ16LP — 16-ch Hirose
15 μm · IVA16 — 16-ch
50 μm · IVA16 — 16-ch
15 μm · F32 — 32-ch Omnetics
50 μm · F32 — 32-ch Omnetics
15 μm · F32W — 32-ch Omnetics
50 μm · F32W — 32-ch Omnetics
15 μm · FH32 — 32-ch Omnetics
50 μm · FH32 — 32-ch Omnetics
15 μm · FH32W — 32-ch Omnetics
50 μm · FH32W — 32-ch Omnetics
Loading the compatible products…
12 metrics
Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.
Top 70% of catalog designs
Sites 16 — higher than 30% of catalog designs and 34% of its familyTop 58% of catalog designs
Shanks 1 — higher than 42% of catalog designs and 40% of its familyTop 10% of catalog designs
Shank length 10 mm — higher than 90% of catalog designs and 94% of its familyTop 21% of catalog designs
Maximum site depth 9.96 mm — higher than 79% of catalog designs and 85% of its familyTop 22% of catalog designs
Minimum site depth 8.43 mm — higher than 78% of catalog designs and 84% of its familyTop 72% of catalog designs
Span, x 0.03 mm — higher than 28% of catalog designs and 37% of its familyTop 27% of catalog designs
Span, y 1.53 mm — higher than 73% of catalog designs and 76% of its familyTop 17% of catalog designs
Site pitch, y 0.1 µm — higher than 83% of catalog designs and 80% of its familyTop 72% of catalog designs
Site outline area 0.045 mm² — higher than 28% of catalog designs and 31% of its familyTop 59% of catalog designs
Neural interface volume 0.538 mm³ — higher than 41% of catalog designs and 37% of its familyTop 41% of catalog designs
Site coverage density 352.4 sites/mm² — higher than 59% of catalog designs and 63% of its familyTop 77% of catalog designs
Brain coverage density 29.76 sites/mm³ — higher than 23% of catalog designs and 21% of its family4 notes · Spending a fixed site budget · Geometry · Construction …
22 links · A Brief History of Neural Electrode Technology · Care, Use and Handling · Choosing an Electrode for Your Experiment …
Cited in 2,342 publications (product line)
