Neural Probes · A-Series

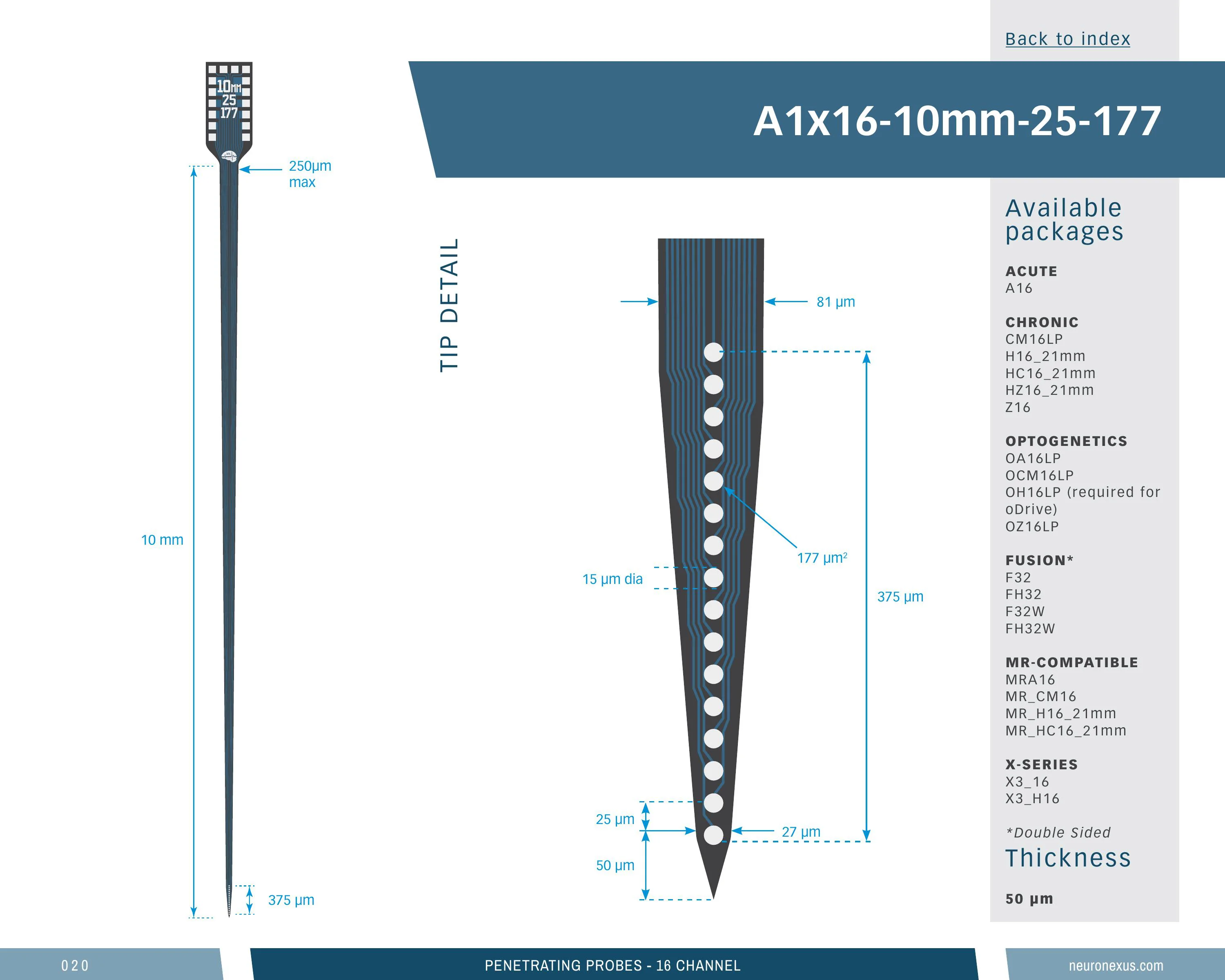

Linear Single-Shank 16-Channel Probe, 10 mm

16Sites
1Shanks
10mmShank Length
25µmSite Pitch
Part no.A1x16-10mm-25-177
Contents

16-site A-Series probe, 1 shank, 10 mm, 177 µm², 25 µm pitch

A single long shank with sites spread evenly down the shank, one per row, for a profile across depth. Among the 369 probe designs in the design space it is mid-range: 16 sites (a common choice — 84 of 369), 10 mm shanks (a common choice — 80 of 366), a 0.39 mm-deep site array (25th percentile), 2,766 sites/mm² (98th percentile) and a 0.23 mm³ neural interface (6th percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, packed densely enough to track a unit across neighbouring sites. The long shank reaches deep targets.

Orders as a probe-plus-package assembly, in 25 package configurations, 4 of them microdrive-compatible. Silicon 50 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

a1x16_10mm_25_177

Linear Single-Shank 16-Channel Probe, 10 mmSKU prb_acl--a1x16_10mm_25_177

12 specs

Channels16
Shanks1
Shank length10 mm
Site area177 µm²
Site pitch25 µm
Vertical span390 µm
SubstrateSilicon
Site materialIridium
Thickness50 µm
Neural interface volume0.229 mm³ (higher than 6% of 369 designs)
Site coverage density2,765.8 sites/mm² (higher than 98% of 369 designs)
Brain coverage density69.8 sites/mm³ (higher than 76% of 369 designs)
Linear Single-Shank 16-Channel Probe, 10 mmSKU prb_acl--a1x16_10mm_25_177

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

25 options

Configure

Compatible Package
All
A16 — 16-ch
CM16_DUAL — 16-ch Omnetics
CM16LP — 16-ch Omnetics
CM32_DUAL16 — 32-ch Omnetics
F32 — 32-ch Omnetics
F32W — 32-ch Omnetics
FH32 — 32-ch Omnetics
FH32W — 32-ch Omnetics
H16 — 16-ch Omnetics
HC16 — 16-ch Omnetics
HZ16 — 16-ch Hirose
IVA16 — 16-ch
MRA16 — 16-ch
MRCM16LP — 16-ch Omnetics
MRH16 — 16-ch Omnetics
MROCM16LP — 16-ch Omnetics
MROCM16LP_V2 — 16-ch Omnetics
OA16LP — 16-ch
OCM16LP — 16-ch Omnetics
OH16LP — 16-ch Omnetics
OHZ16LP — 16-ch Hirose
OZ16LP — 16-ch Hirose
X3_16 — 16-ch Molex
X3_H16 (21 mm cable) — 16-ch Molex
Z16 — 16-ch Hirose

Your selection

16-channel single-shank silicon probe, 10 mm — 50 μm, A16
A16
Compatible Package: A16 — 16-ch
SKUprb_acl--a1x16_10mm_25_177.50um.a16
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

25 of 25
Linear Single-Shank 16-Channel Probe, 10 mmSKU prb_acl--a1x16_10mm_25_177

Loading the compatible products…

Linear Single-Shank 16-Channel Probe, 10 mmSKU prb_acl--a1x16_10mm_25_177

12 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
16
41024

Top 70% of catalog designs

Sites 16 — higher than 30% of catalog designs and 34% of its family
Shanks
1
116

Top 58% of catalog designs

Shanks 1 — higher than 42% of catalog designs and 40% of its family
Shank length
10 mm
1 mm60 mm

Top 10% of catalog designs

Shank length 10 mm — higher than 90% of catalog designs and 94% of its family
Maximum site depth
9.96 mm
0.972 mm51.29 mm

Top 23% of catalog designs

Maximum site depth 9.96 mm — higher than 77% of catalog designs and 82% of its family
Minimum site depth
9.57 mm
0.067 mm44.74 mm

Top 12% of catalog designs

Minimum site depth 9.57 mm — higher than 88% of catalog designs and 94% of its family
Span, x
0.015 mm
0.01 mm6.03 mm

Top 86% of catalog designs

Span, x 0.015 mm — higher than 14% of catalog designs and 14% of its family
Span, y
0.39 mm
0.01 mm10.55 mm

Top 75% of catalog designs

Span, y 0.39 mm — higher than 25% of catalog designs and 20% of its family
Site pitch, y
0.025 µm
0.01 µm1.5 µm

Top 68% of catalog designs

Site pitch, y 0.025 µm — higher than 32% of catalog designs and 9% of its family
Site outline area
0.006 mm²
0.002 mm²28.74 mm²

Top 95% of catalog designs

Site outline area 0.006 mm² — higher than 5% of catalog designs and 2% of its family
Neural interface volume
0.229 mm³
0.149 mm³17.19 mm³

Top 94% of catalog designs

Neural interface volume 0.229 mm³ — higher than 6% of catalog designs and 2% of its family
Site coverage density
2765.8 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 2% of catalog designs

Site coverage density 2765.8 sites/mm² — higher than 98% of catalog designs and 96% of its family
Brain coverage density
69.84 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 24% of catalog designs

Brain coverage density 69.84 sites/mm³ — higher than 76% of catalog designs and 85% of its family
