Neural Probes · A-Series

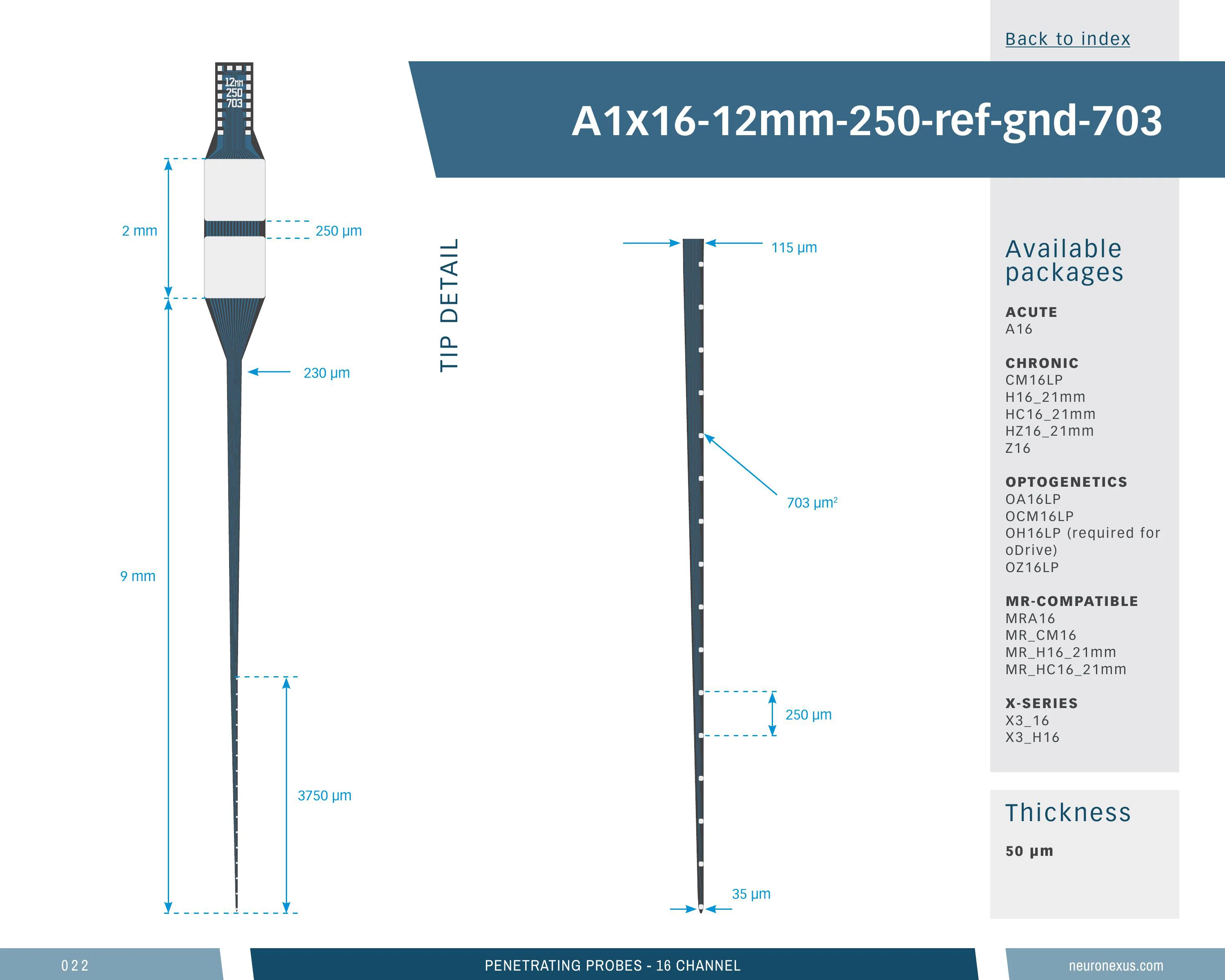

Linear Single-Shank 16-Channel Probe, 12 mm

16Sites
1Shanks
12mmShank Length
250µmSite Pitch
Part no.A1x16-12mm-250-R-G-703
Contents

16-site A-Series probe, 1 shank, 12 mm

A single long shank with sites spread evenly down the shank, one per row, for a profile across depth. Among the 369 probe designs in the design space it is in the upper quartile: 16 sites (a common choice — 84 of 369), 12 mm shanks (93rd percentile of the 366 measured), a 3.78 mm-deep site array (93rd percentile), 163 sites/mm² (44th percentile) and a 1.13 mm³ neural interface (77th percentile).

Large sites read a wider patch at lower impedance, suited to field potentials and multi-unit activity, spaced widely to span a structure rather than resolve within it. The long shank reaches deep targets.

Orders as a probe-plus-package assembly, in 28 package configurations, 5 of them microdrive-compatible. Silicon 50 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

a1x16_12mm_250_ref_gnd_703

Linear Single-Shank 16-Channel Probe, 12 mmSKU prb_acl--a1x16_12mm_250_r_g_703

12 specs

Channels16
Shanks1
Shank length12 mm
Site area703 µm²
Site pitch250 µm
Vertical span3779 µm
SubstrateSilicon
Site materialIridium
Thickness50 µm
Neural interface volume1.125 mm³ (higher than 77% of 369 designs)
Site coverage density162.8 sites/mm² (higher than 44% of 369 designs)
Brain coverage density14.2 sites/mm³ (higher than 7% of 369 designs)
Linear Single-Shank 16-Channel Probe, 12 mmSKU prb_acl--a1x16_12mm_250_r_g_703

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

28 options

Configure

Compatible Package
All
A16 — 16-ch
CM16_DUAL — 16-ch Omnetics
CM16LP — 16-ch Omnetics
CM32_DUAL16 — 32-ch Omnetics
F32 — 32-ch Omnetics
F32W — 32-ch Omnetics
FH32 — 32-ch Omnetics
FH32W — 32-ch Omnetics
H16 — 16-ch Omnetics
H16 (10 mm cable) — 16-ch Omnetics
H16 (21 mm cable) — 16-ch Omnetics
H16 (30 mm cable) — 16-ch Omnetics
HC16 — 16-ch Omnetics
HZ16 — 16-ch Hirose
IVA16 — 16-ch
MRA16 — 16-ch
MRCM16LP — 16-ch Omnetics
MRH16 — 16-ch Omnetics
MROCM16LP — 16-ch Omnetics
MROCM16LP_V2 — 16-ch Omnetics
OA16LP — 16-ch
OCM16LP — 16-ch Omnetics
OH16LP — 16-ch Omnetics
OHZ16LP — 16-ch Hirose
OZ16LP — 16-ch Hirose
X3_16 — 16-ch Molex
X3_H16 — 16-ch Molex
Z16 — 16-ch Hirose

Your selection

16-channel single-shank silicon probe, 12 mm — 50 μm, MROCM16LP
MROCM16LP
Compatible Package: MROCM16LP — 16-ch Omnetics
SKUprb_acl--a1x16_12mm_250_r_g_703.50um.mrocm16lp
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

28 of 28
Linear Single-Shank 16-Channel Probe, 12 mmSKU prb_acl--a1x16_12mm_250_r_g_703

Loading the compatible products…

Linear Single-Shank 16-Channel Probe, 12 mmSKU prb_acl--a1x16_12mm_250_r_g_703

12 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
16
41024

Top 70% of catalog designs

Sites 16 — higher than 30% of catalog designs and 34% of its family
Shanks
1
116

Top 58% of catalog designs

Shanks 1 — higher than 42% of catalog designs and 40% of its family
Shank length
12 mm
1 mm60 mm

Top 7% of catalog designs

Shank length 12 mm — higher than 93% of catalog designs and 96% of its family
Maximum site depth
11.96 mm
0.972 mm51.29 mm

Top 8% of catalog designs

Maximum site depth 11.96 mm — higher than 92% of catalog designs and 96% of its family
Minimum site depth
8.18 mm
0.067 mm44.74 mm

Top 24% of catalog designs

Minimum site depth 8.18 mm — higher than 76% of catalog designs and 81% of its family
Span, x
0.026 mm
0.01 mm6.03 mm

Top 76% of catalog designs

Span, x 0.026 mm — higher than 24% of catalog designs and 31% of its family
Span, y
3.78 mm
0.01 mm10.55 mm

Top 7% of catalog designs

Span, y 3.78 mm — higher than 93% of catalog designs and 99% of its family
Site pitch, y
0.25 µm
0.01 µm1.5 µm

Top 3% of catalog designs

Site pitch, y 0.25 µm — higher than 97% of catalog designs and 98% of its family
Site outline area
0.098 mm²
0.002 mm²28.74 mm²

Top 55% of catalog designs

Site outline area 0.098 mm² — higher than 45% of catalog designs and 46% of its family
Neural interface volume
1.13 mm³
0.149 mm³17.19 mm³

Top 23% of catalog designs

Neural interface volume 1.13 mm³ — higher than 77% of catalog designs and 81% of its family
Site coverage density
162.8 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 56% of catalog designs

Site coverage density 162.8 sites/mm² — higher than 44% of catalog designs and 50% of its family
Brain coverage density
14.22 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 93% of catalog designs

Brain coverage density 14.22 sites/mm³ — higher than 7% of catalog designs and 4% of its family
Linear Single-Shank 16-Channel Probe, 12 mmSKU prb_acl--a1x16_12mm_250_r_g_703

4 notes · Spending a fixed site budget · Geometry · Construction …

Linear Single-Shank 16-Channel Probe, 12 mmSKU prb_acl--a1x16_12mm_250_r_g_703

22 links · A Brief History of Neural Electrode Technology · Care, Use and Handling · Choosing an Electrode for Your Experiment …

Linear Single-Shank 16-Channel Probe, 12 mmSKU prb_acl--a1x16_12mm_250_r_g_703

Cited in 2,342 publications (product line)
