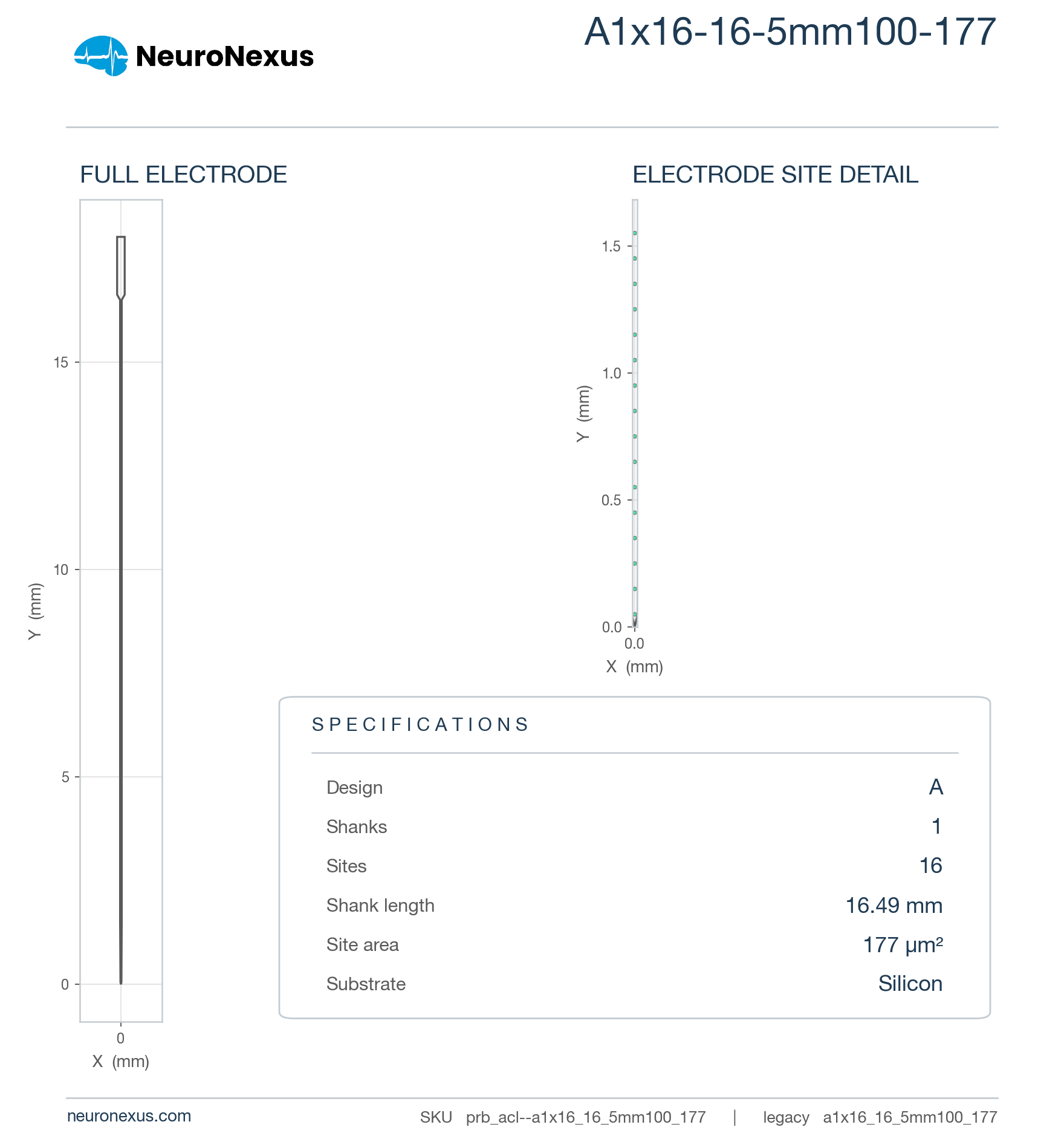

16-site A-Series probe, 1 shank, 16.5 mm
A single long shank with sites spread evenly down the shank, one per row, for a profile across depth. Among the 369 probe designs in the design space it is mid-range: 16 sites (a common choice — 84 of 369), 16.5 mm shanks (98th percentile of the 366 measured), a 1.51 mm-deep site array (69th percentile), 712 sites/mm² (78th percentile) and a 0.52 mm³ neural interface (34th percentile).
Small sites read a local patch at higher impedance, sharpening single-unit isolation, spaced for a laminar profile. The long shank reaches deep targets.
Orders as a probe-plus-package assembly, in 6 package configurations. Silicon 15 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.
a1x16_16_5mm100_177
12 specs
| Channels | 16 |
|---|---|
| Shanks | 1 |
| Shank length | 16.4943 mm |
| Site area | 177 µm² |
| Site pitch | 100 µm |
| Vertical span | 1515 µm |
| Substrate | Silicon |
| Site material | Iridium |
| Thickness | 15 µm |
| Neural interface volume | 0.519 mm³ (higher than 34% of 369 designs) |
| Site coverage density | 711.9 sites/mm² (higher than 78% of 369 designs) |
| Brain coverage density | 30.8 sites/mm³ (higher than 30% of 369 designs) |
Narrow the options with the filters or pick a card, then contact us to order that configuration.
8 options
Configure
Your selection
16-channel single-shank silicon probe, 16.49425 mm — 15 μm, H16_21MM
H16_21MMOptions
8 of 815 μm · H16 (21 mm cable) — 16-ch Omnetics
15 μm · H16 (30 mm cable) — 16-ch Omnetics
15 μm · OV16 — 16-ch Omnetics
15 μm · X3_16 — 16-ch Molex
15 μm · X3_H16 (21 mm cable) — 16-ch Molex
15 μm · Z16 — 16-ch Hirose
50 μm · H16 (21 mm cable) — 16-ch Omnetics
50 μm · H16 (30 mm cable) — 16-ch Omnetics
Loading the compatible products…
12 metrics
Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.
Top 70% of catalog designs
Sites 16 — higher than 30% of catalog designs and 34% of its familyTop 58% of catalog designs
Shanks 1 — higher than 42% of catalog designs and 40% of its familyTop 2% of catalog designs · largest in its family
Shank length 16.49 mm — higher than 98% of catalog designs and 100% of its family (the largest in its family, 180 designs)Top 2% of catalog designs · largest in its family
Maximum site depth 16.45 mm — higher than 98% of catalog designs and 100% of its family (the largest in its family, 180 designs)Top 2% of catalog designs · largest in its family
Minimum site depth 14.94 mm — higher than 98% of catalog designs and 100% of its family (the largest in its family, 180 designs)Top 86% of catalog designs
Span, x 0.015 mm — higher than 14% of catalog designs and 14% of its familyTop 31% of catalog designs
Span, y 1.51 mm — higher than 69% of catalog designs and 69% of its familyTop 17% of catalog designs
Site pitch, y 0.1 µm — higher than 83% of catalog designs and 80% of its familyTop 86% of catalog designs
Site outline area 0.022 mm² — higher than 14% of catalog designs and 14% of its familyTop 66% of catalog designs
Neural interface volume 0.519 mm³ — higher than 34% of catalog designs and 26% of its familyTop 22% of catalog designs
Site coverage density 711.9 sites/mm² — higher than 78% of catalog designs and 81% of its familyTop 70% of catalog designs
Brain coverage density 30.85 sites/mm³ — higher than 30% of catalog designs and 32% of its family3 notes · Geometry · Construction · Packaging and connector options
