Neural Probes · A-Series

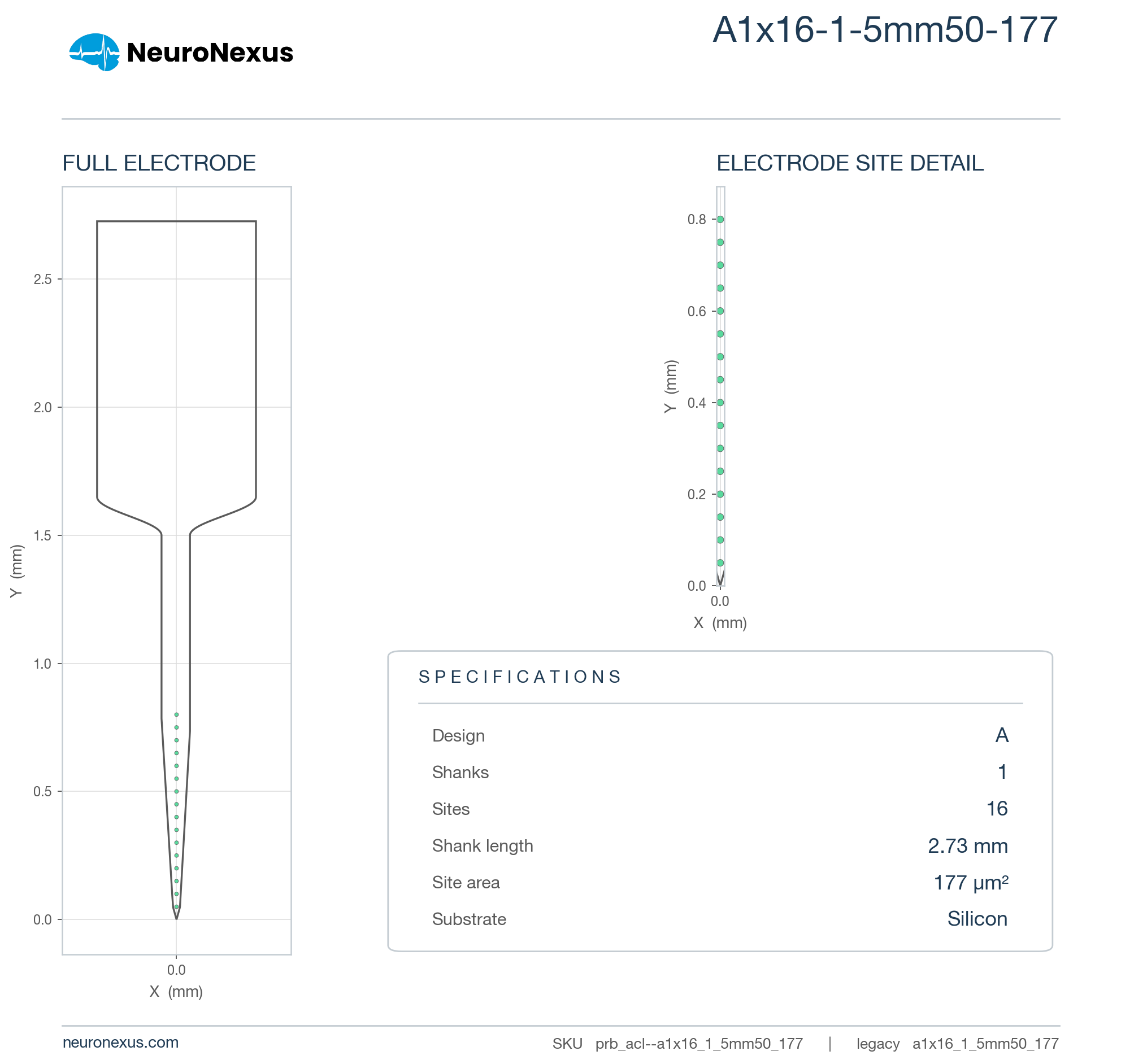

Linear Single-Shank 16-Channel Probe, 1.5 mm

16Sites
1Shanks
1.5mmShank Length
50µmSite Pitch
Part no.A1x16-1-5mm50-177
Contact us to order
Contents

16-site A-Series probe, 1 shank, 1.5 mm

A single short shank with sites spread evenly down the shank, one per row, for a profile across depth. Among the 369 probe designs in the design space it is mid-range: 16 sites (a common choice — 84 of 369), 1.5 mm shanks (1st percentile of the 366 measured), a 0.76 mm-deep site array (44th percentile), 1,410 sites/mm² (91st percentile) and a 0.33 mm³ neural interface (15th percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, spaced for a laminar profile. The short shank suits superficial targets.

Orders as a probe-plus-package assembly, in 6 package configurations. Silicon 15 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

a1x16_1_5mm50_177

Linear Single-Shank 16-Channel Probe, 1.5 mmSKU prb_acl--a1x16_1_5mm50_177

12 specs

Channels16
Shanks1
Shank length1.5 mm
Site area177 µm²
Site pitch50 µm
Vertical span765 µm
SubstrateSilicon
Site materialIridium
Thickness15 µm
Neural interface volume0.326 mm³ (higher than 15% of 369 designs)
Site coverage density1,409.9 sites/mm² (higher than 91% of 369 designs)
Brain coverage density49.1 sites/mm³ (higher than 54% of 369 designs)
Linear Single-Shank 16-Channel Probe, 1.5 mmSKU prb_acl--a1x16_1_5mm50_177

Narrow the options with the filters or pick a card, then contact us to order that configuration.

9 options

Configure

Substrate Thickness
All
15 μm
50 μm
Compatible Package
All
A16 — 16-ch
CM16LP — 16-ch Omnetics
IVA16 — 16-ch
OA16LP — 16-ch
X3_16 — 16-ch Molex
X3_H16 (21 mm cable) — 16-ch Molex

Your selection

16-channel single-shank silicon probe, 1.5 mm — 15 μm, A16
A16
Substrate Thickness: 15 μm
Compatible Package: A16 — 16-ch
SKUprb_acl--a1x16_1_5mm50_177.15um.a16

Options

9 of 9
Linear Single-Shank 16-Channel Probe, 1.5 mmSKU prb_acl--a1x16_1_5mm50_177

Loading the compatible products…

Linear Single-Shank 16-Channel Probe, 1.5 mmSKU prb_acl--a1x16_1_5mm50_177

12 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
16
41024

Top 70% of catalog designs

Sites 16 — higher than 30% of catalog designs and 34% of its family
Shanks
1
116

Top 58% of catalog designs

Shanks 1 — higher than 42% of catalog designs and 40% of its family
Shank length
1.5 mm
1 mm60 mm

Top 99% of catalog designs

Shank length 1.5 mm — higher than 1% of catalog designs and 1% of its family
Maximum site depth
1.46 mm
0.972 mm51.29 mm

Top 99% of catalog designs

Maximum site depth 1.46 mm — higher than 1% of catalog designs and 1% of its family
Minimum site depth
0.693 mm
0.067 mm44.74 mm

Top 96% of catalog designs

Minimum site depth 0.693 mm — higher than 4% of catalog designs and 2% of its family
Span, x
0.015 mm
0.01 mm6.03 mm

Top 86% of catalog designs

Span, x 0.015 mm — higher than 14% of catalog designs and 14% of its family
Span, y
0.765 mm
0.01 mm10.55 mm

Top 56% of catalog designs

Span, y 0.765 mm — higher than 44% of catalog designs and 38% of its family
Site pitch, y
0.05 µm
0.01 µm1.5 µm

Top 44% of catalog designs

Site pitch, y 0.05 µm — higher than 56% of catalog designs and 42% of its family
Site outline area
0.011 mm²
0.002 mm²28.74 mm²

Top 92% of catalog designs

Site outline area 0.011 mm² — higher than 8% of catalog designs and 6% of its family
Neural interface volume
0.326 mm³
0.149 mm³17.19 mm³

Top 85% of catalog designs

Neural interface volume 0.326 mm³ — higher than 15% of catalog designs and 8% of its family
Site coverage density
1409.9 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 9% of catalog designs

Site coverage density 1409.9 sites/mm² — higher than 91% of catalog designs and 91% of its family
Brain coverage density
49.14 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 46% of catalog designs

Brain coverage density 49.14 sites/mm³ — higher than 54% of catalog designs and 61% of its family
Linear Single-Shank 16-Channel Probe, 1.5 mmSKU prb_acl--a1x16_1_5mm50_177

3 notes · Geometry · Construction · Packaging and connector options

Linear Single-Shank 16-Channel Probe, 1.5 mmSKU prb_acl--a1x16_1_5mm50_177

22 links · A Brief History of Neural Electrode Technology · Care, Use and Handling · Choosing an Electrode for Your Experiment …

Linear Single-Shank 16-Channel Probe, 1.5 mmSKU prb_acl--a1x16_1_5mm50_177

Cited in 2,342 publications (product line)
