Neural Probes · A-Series

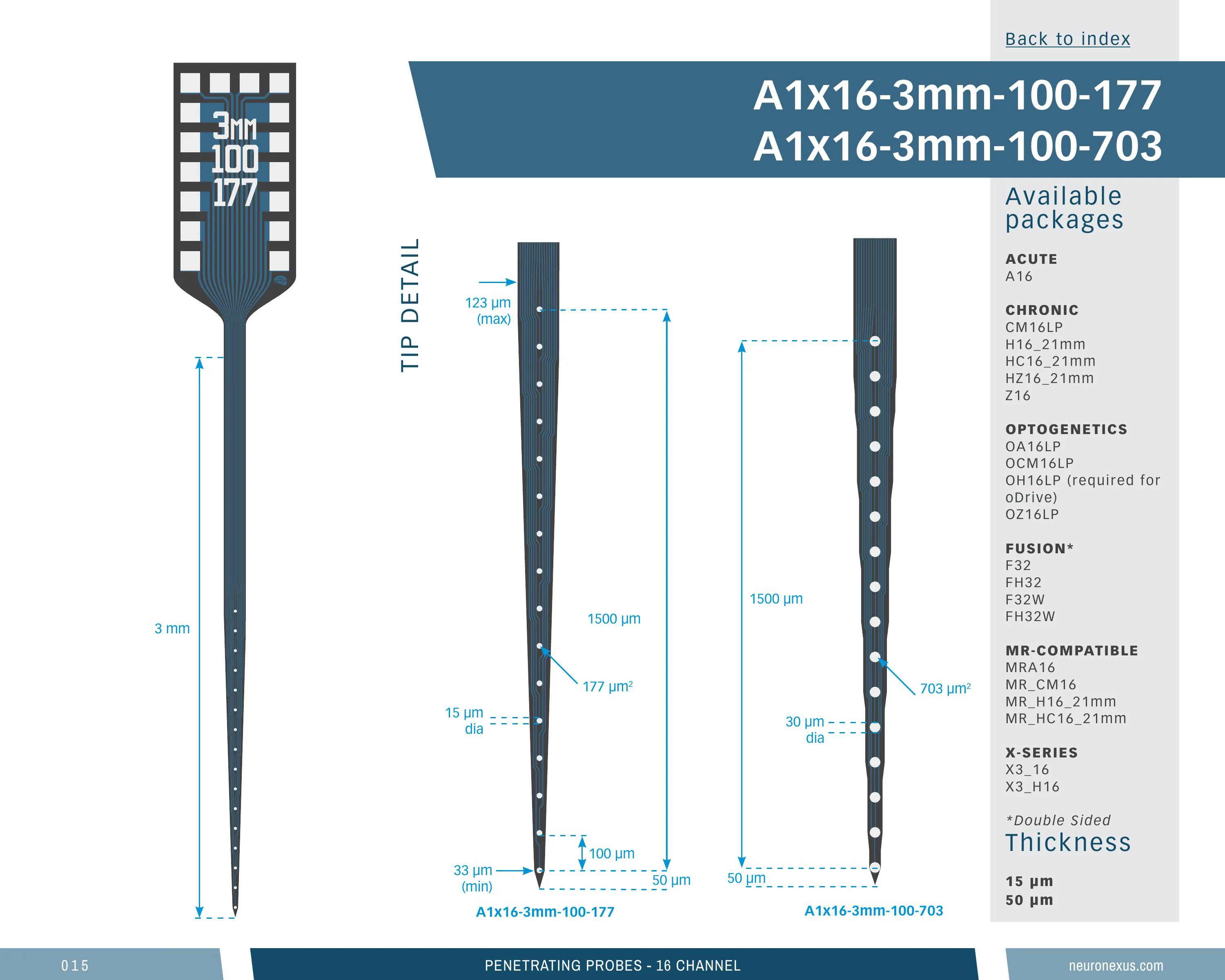

Linear Single-Shank 16-Channel Probe, 3 mm
Sites spread along the shank — linear and edge layouts for depth profiling
A single short shank with sites spread evenly down the shank, one per row, for a profile across depth. Among the 371 probe designs in the design space it is mid-range: 16 sites (a common choice — 84 of 369), 3 mm shanks (a common choice — 37 of 363), a 1.51 mm-deep site array (69th percentile), 712 sites/mm² (77th percentile) and a 0.52 mm³ neural interface (34th percentile).
Small sites read a local patch at higher impedance, sharpening single-unit isolation, spaced for a laminar profile. The short shank suits superficial targets.
Orders as a probe-plus-package assembly, in 25 package configurations, 2 of them microdrive-compatible. Silicon 15 or 50 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.
SKU prb_acl--a1x16_3mm_100_177 · Neural Probes in the webstore
Specifications
| Channels | 16 |
|---|---|
| Shanks | 1 |
| Shank length | 3 mm |
| Site area | 177 µm² |
| Site pitch | 100 µm |
| Vertical span | 1515 µm |
| Substrate | Silicon |
| Site material | Iridium |
| Thickness | 15, 50 µm |
| Neural interface volume | 0.519 mm³ (higher than 34% of 371 designs) |
| Site coverage density | 711.9 sites/mm² (higher than 77% of 371 designs) |
| Brain coverage density | 30.8 sites/mm³ (higher than 29% of 371 designs) |
