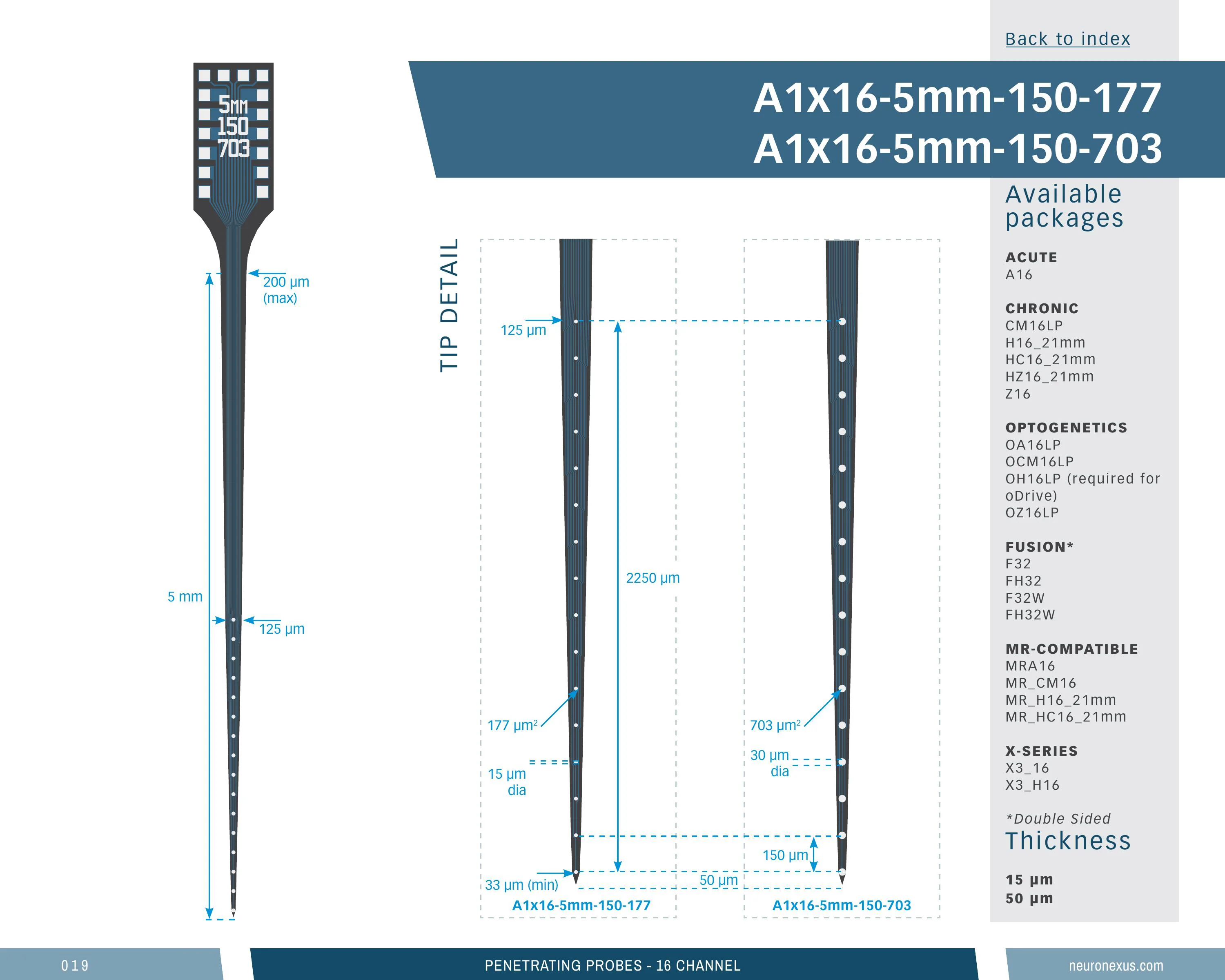

16-site A-Series probe, 1 shank, 5 mm, 177 µm², 150 µm pitch
A single mid-length shank with sites spread evenly down the shank, one per row, for a profile across depth. Among the 369 probe designs in the design space it is mid-range: 16 sites (a common choice — 84 of 369), 5 mm shanks (a common choice — 108 of 366), a 2.26 mm-deep site array (83rd percentile), 476 sites/mm² (68th percentile) and a 0.71 mm³ neural interface (58th percentile).
Small sites read a local patch at higher impedance, sharpening single-unit isolation, spaced widely to span a structure rather than resolve within it. The mid-length shank reaches structures a few millimetres down.
Orders as a probe-plus-package assembly, in 25 package configurations, 2 of them microdrive-compatible. Silicon 15 or 50 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.
a1x16_5mm_150_177
12 specs
| Channels | 16 |
|---|---|
| Shanks | 1 |
| Shank length | 5 mm |
| Site area | 177 µm² |
| Site pitch | 150 µm |
| Vertical span | 2265 µm |
| Substrate | Silicon |
| Site material | Iridium |
| Thickness | 15, 50 µm |
| Neural interface volume | 0.712 mm³ (higher than 58% of 369 designs) |
| Site coverage density | 476.2 sites/mm² (higher than 68% of 369 designs) |
| Brain coverage density | 22.5 sites/mm³ (higher than 16% of 369 designs) |
Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.
50 options
Configure
Your selection
16-channel single-shank silicon probe, 5 mm — 15 μm, A16
A16Options
50 of 5015 μm · A16 — 16-ch
15 μm · CM16LP — 16-ch Omnetics
15 μm · H16 (21 mm cable) — 16-ch Omnetics
15 μm · HC16 (21 mm cable) — 16-ch Omnetics
15 μm · HZ16 (21 mm cable) — 16-ch Hirose
15 μm · MRA16 — 16-ch
15 μm · MRCM16LP — 16-ch Omnetics
15 μm · MRH16 (21 mm cable) — 16-ch Omnetics
15 μm · OA16LP — 16-ch
15 μm · OCM16LP — 16-ch Omnetics
15 μm · OH16LP — 16-ch Omnetics
15 μm · OZ16LP — 16-ch Hirose
15 μm · X3_16 — 16-ch Molex
15 μm · X3_H16 (21 mm cable) — 16-ch Molex
15 μm · Z16 — 16-ch Hirose
50 μm · A16 — 16-ch
50 μm · CM16LP — 16-ch Omnetics
50 μm · H16 (21 mm cable) — 16-ch Omnetics
50 μm · HC16 (21 mm cable) — 16-ch Omnetics
50 μm · HZ16 (21 mm cable) — 16-ch Hirose
50 μm · MRA16 — 16-ch
50 μm · MRCM16LP — 16-ch Omnetics
50 μm · MRH16 (21 mm cable) — 16-ch Omnetics
50 μm · OA16LP — 16-ch
50 μm · OCM16LP — 16-ch Omnetics
50 μm · OH16LP — 16-ch Omnetics
50 μm · OZ16LP — 16-ch Hirose
50 μm · X3_16 — 16-ch Molex
50 μm · X3_H16 (21 mm cable) — 16-ch Molex
50 μm · Z16 — 16-ch Hirose
15 μm · CM16_DUAL — 16-ch Omnetics
50 μm · CM16_DUAL — 16-ch Omnetics
15 μm · CM32_DUAL16 — 32-ch Omnetics
50 μm · CM32_DUAL16 — 32-ch Omnetics
15 μm · MROCM16LP — 16-ch Omnetics
50 μm · MROCM16LP — 16-ch Omnetics
15 μm · MROCM16LP_V2 — 16-ch Omnetics
50 μm · MROCM16LP_V2 — 16-ch Omnetics
15 μm · OHZ16LP — 16-ch Hirose
50 μm · OHZ16LP — 16-ch Hirose
15 μm · IVA16 — 16-ch
50 μm · IVA16 — 16-ch
15 μm · F32 — 32-ch Omnetics
50 μm · F32 — 32-ch Omnetics
15 μm · F32W — 32-ch Omnetics
50 μm · F32W — 32-ch Omnetics
15 μm · FH32 — 32-ch Omnetics
50 μm · FH32 — 32-ch Omnetics
15 μm · FH32W — 32-ch Omnetics
50 μm · FH32W — 32-ch Omnetics
Loading the compatible products…
12 metrics
Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.
Top 70% of catalog designs
Sites 16 — higher than 30% of catalog designs and 34% of its familyTop 58% of catalog designs
Shanks 1 — higher than 42% of catalog designs and 40% of its familyTop 48% of catalog designs
Shank length 5 mm — higher than 52% of catalog designs and 61% of its familyTop 71% of catalog designs
Maximum site depth 4.95 mm — higher than 29% of catalog designs and 29% of its familyTop 77% of catalog designs
Minimum site depth 2.69 mm — higher than 23% of catalog designs and 26% of its familyTop 86% of catalog designs
Span, x 0.015 mm — higher than 14% of catalog designs and 14% of its familyTop 17% of catalog designs
Span, y 2.26 mm — higher than 83% of catalog designs and 86% of its familyTop 14% of catalog designs
Site pitch, y 0.15 µm — higher than 86% of catalog designs and 84% of its familyTop 79% of catalog designs
Site outline area 0.034 mm² — higher than 21% of catalog designs and 23% of its familyTop 42% of catalog designs
Neural interface volume 0.712 mm³ — higher than 58% of catalog designs and 56% of its familyTop 32% of catalog designs
Site coverage density 476.2 sites/mm² — higher than 68% of catalog designs and 72% of its familyTop 84% of catalog designs
Brain coverage density 22.48 sites/mm³ — higher than 16% of catalog designs and 11% of its family4 notes · Spending a fixed site budget · Geometry · Construction …
22 links · A Brief History of Neural Electrode Technology · Care, Use and Handling · Choosing an Electrode for Your Experiment …
Cited in 2,342 publications (product line)
