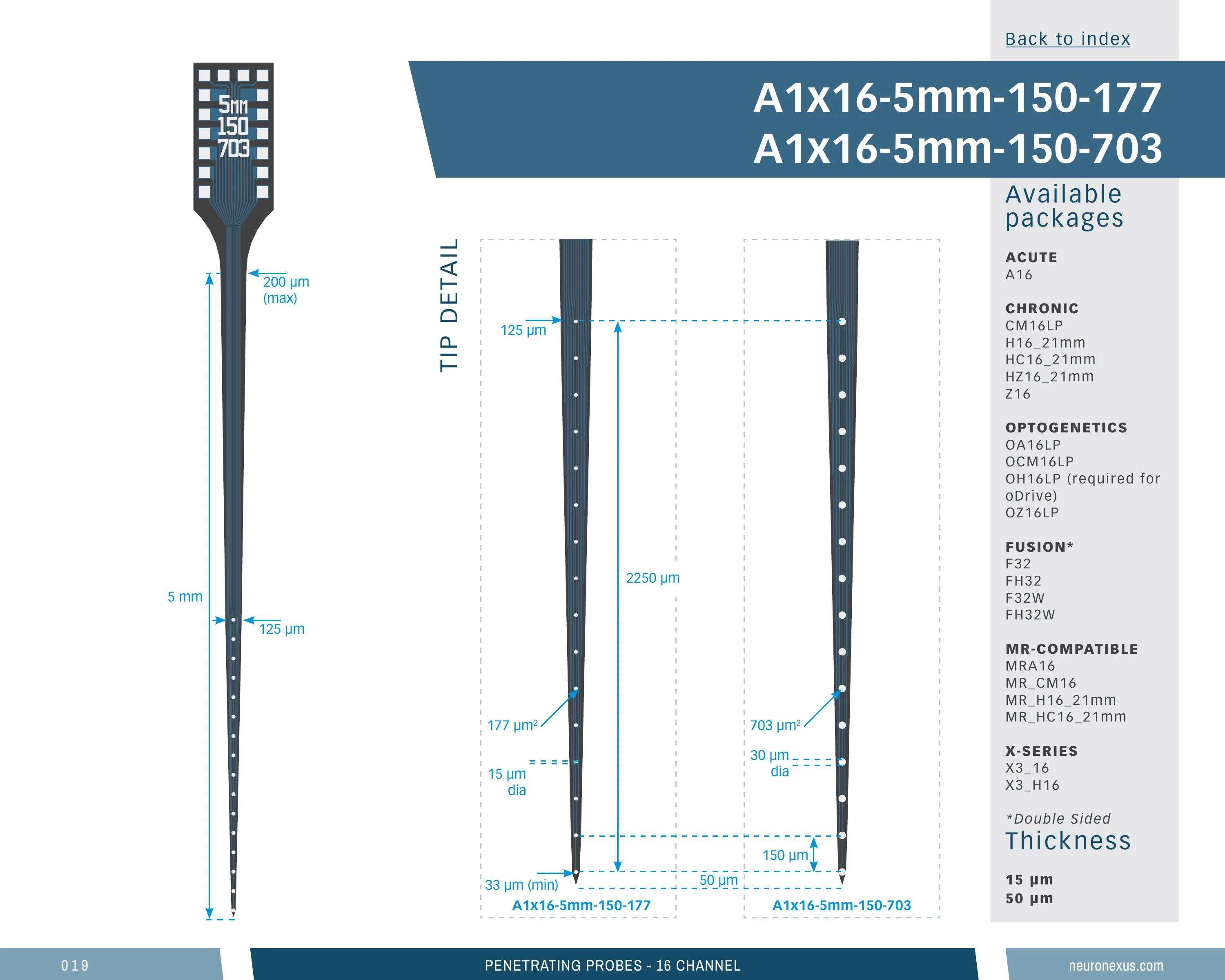

Linear Single-Shank 16-Channel Probe, 5 mm
16-site A-Series probe, 1 shank, 5 mm, 703 µm², 150 µm pitch
A single mid-length shank with sites spread evenly down the shank, one per row, for a profile across depth. Among the 369 probe designs in the design space it is mid-range: 16 sites (a common choice — 84 of 369), 5 mm shanks (a common choice — 108 of 366), a 2.28 mm-deep site array (83rd percentile), 237 sites/mm² (50th percentile) and a 0.74 mm³ neural interface (60th percentile).
Large sites read a wider patch at lower impedance, suited to field potentials and multi-unit activity, spaced widely to span a structure rather than resolve within it. The mid-length shank reaches structures a few millimetres down.
Orders as a probe-plus-package assembly, in 25 package configurations, 2 of them microdrive-compatible. Silicon 15 or 50 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.
a1x16_5mm_150_703
12 specs
| Channels | 16 |
|---|---|
| Shanks | 1 |
| Shank length | 5 mm |
| Site area | 703 µm² |
| Site pitch | 150 µm |
| Vertical span | 2280 µm |
| Substrate | Silicon |
| Site material | Iridium |
| Thickness | 15, 50 µm |
| Neural interface volume | 0.736 mm³ (higher than 60% of 369 designs) |
| Site coverage density | 236.5 sites/mm² (higher than 50% of 369 designs) |
| Brain coverage density | 21.7 sites/mm³ (higher than 14% of 369 designs) |
Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.
50 options
Configure
Your selection
16-channel single-shank silicon probe, 5 mm — 15 μm, A16
A16Options
50 of 5015 μm · A16 — 16-ch
15 μm · CM16LP — 16-ch Omnetics
15 μm · CM32_DUAL16 — 32-ch Omnetics
15 μm · H16 (21 mm cable) — 16-ch Omnetics
15 μm · HC16 (21 mm cable) — 16-ch Omnetics
15 μm · HZ16 (21 mm cable) — 16-ch Hirose
15 μm · MRCM16LP — 16-ch Omnetics
15 μm · MRH16 (21 mm cable) — 16-ch Omnetics
15 μm · OA16LP — 16-ch
15 μm · OCM16LP — 16-ch Omnetics
15 μm · OH16LP — 16-ch Omnetics
15 μm · OZ16LP — 16-ch Hirose
15 μm · X3_16 — 16-ch Molex
15 μm · X3_H16 (21 mm cable) — 16-ch Molex
15 μm · Z16 — 16-ch Hirose
50 μm · A16 — 16-ch
50 μm · CM16LP — 16-ch Omnetics
50 μm · CM32_DUAL16 — 32-ch Omnetics
50 μm · H16 (21 mm cable) — 16-ch Omnetics
50 μm · HC16 (21 mm cable) — 16-ch Omnetics
50 μm · HZ16 (21 mm cable) — 16-ch Hirose
50 μm · MRCM16LP — 16-ch Omnetics
50 μm · MRH16 (21 mm cable) — 16-ch Omnetics
50 μm · OA16LP — 16-ch
50 μm · OCM16LP — 16-ch Omnetics
50 μm · OH16LP — 16-ch Omnetics
50 μm · OZ16LP — 16-ch Hirose
50 μm · X3_16 — 16-ch Molex
50 μm · X3_H16 (21 mm cable) — 16-ch Molex
50 μm · Z16 — 16-ch Hirose
15 μm · CM16_DUAL — 16-ch Omnetics
50 μm · CM16_DUAL — 16-ch Omnetics
15 μm · MROCM16LP — 16-ch Omnetics
50 μm · MROCM16LP — 16-ch Omnetics
15 μm · MROCM16LP_V2 — 16-ch Omnetics
50 μm · MROCM16LP_V2 — 16-ch Omnetics
15 μm · OHZ16LP — 16-ch Hirose
50 μm · OHZ16LP — 16-ch Hirose
15 μm · IVA16 — 16-ch
50 μm · IVA16 — 16-ch
15 μm · MRA16 — 16-ch
50 μm · MRA16 — 16-ch
15 μm · F32 — 32-ch Omnetics
50 μm · F32 — 32-ch Omnetics
15 μm · F32W — 32-ch Omnetics
50 μm · F32W — 32-ch Omnetics
15 μm · FH32 — 32-ch Omnetics
50 μm · FH32 — 32-ch Omnetics
15 μm · FH32W — 32-ch Omnetics
50 μm · FH32W — 32-ch Omnetics
Loading the compatible products…
12 metrics
Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.
Top 70% of catalog designs
Sites 16 — higher than 30% of catalog designs and 34% of its familyTop 58% of catalog designs
Shanks 1 — higher than 42% of catalog designs and 40% of its familyTop 48% of catalog designs
Shank length 5 mm — higher than 52% of catalog designs and 61% of its familyTop 58% of catalog designs
Maximum site depth 4.96 mm — higher than 42% of catalog designs and 51% of its familyTop 78% of catalog designs
Minimum site depth 2.68 mm — higher than 22% of catalog designs and 25% of its familyTop 73% of catalog designs
Span, x 0.03 mm — higher than 27% of catalog designs and 36% of its familyTop 17% of catalog designs
Span, y 2.28 mm — higher than 83% of catalog designs and 87% of its familyTop 14% of catalog designs
Site pitch, y 0.15 µm — higher than 86% of catalog designs and 84% of its familyTop 63% of catalog designs
Site outline area 0.068 mm² — higher than 37% of catalog designs and 38% of its familyTop 40% of catalog designs
Neural interface volume 0.736 mm³ — higher than 60% of catalog designs and 58% of its familyTop 50% of catalog designs
Site coverage density 236.5 sites/mm² — higher than 50% of catalog designs and 54% of its familyTop 86% of catalog designs
Brain coverage density 21.73 sites/mm³ — higher than 14% of catalog designs and 9% of its family4 notes · Spending a fixed site budget · Geometry · Construction …
22 links · A Brief History of Neural Electrode Technology · Care, Use and Handling · Choosing an Electrode for Your Experiment …
Cited in 2,342 publications (product line)
