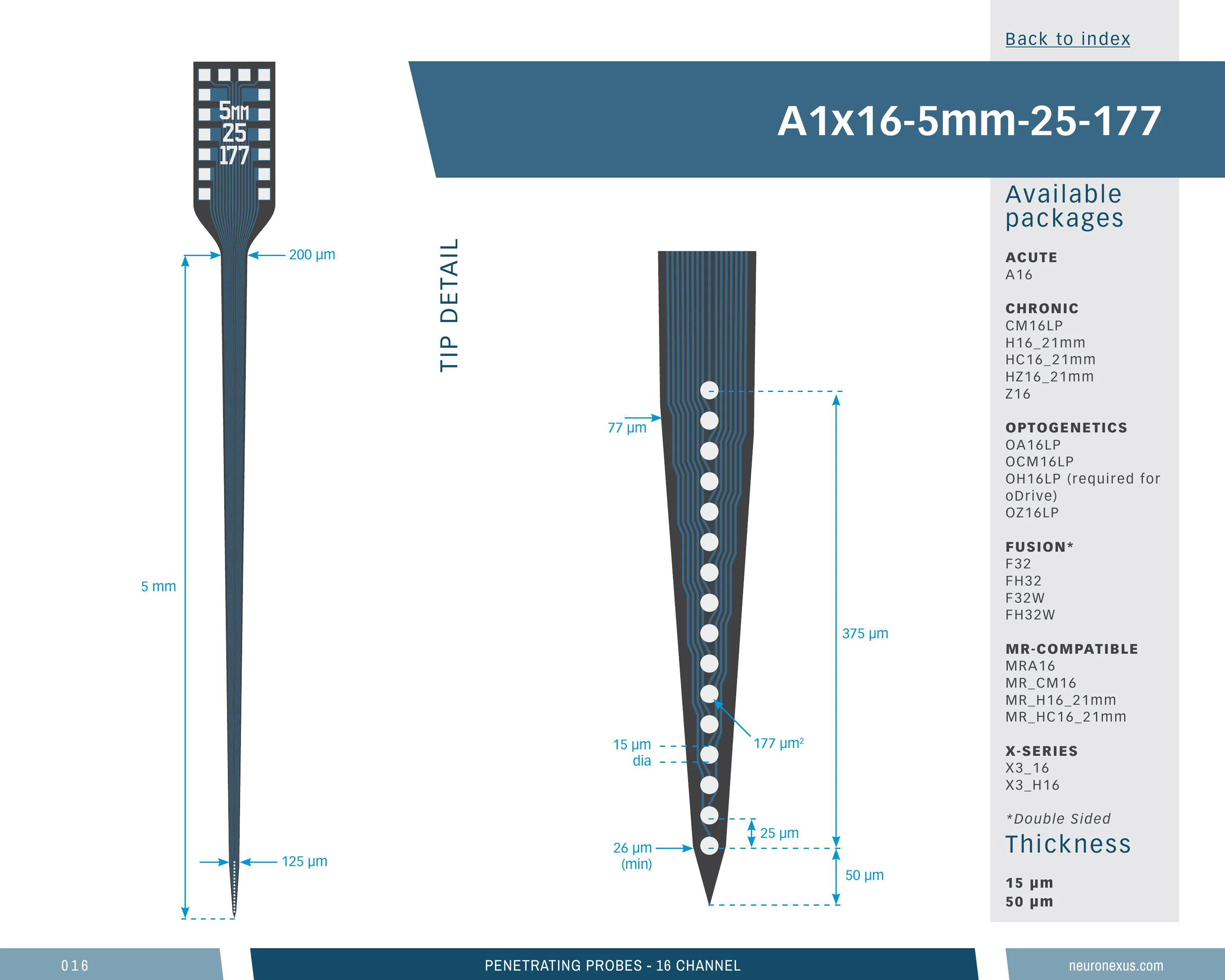

16-site A-Series probe, 1 shank, 5 mm, 177 µm², 25 µm pitch
A single mid-length shank with sites spread evenly down the shank, one per row, for a profile across depth. Among the 369 probe designs in the design space it is in the lower quartile: 16 sites (a common choice — 84 of 369), 5 mm shanks (a common choice — 108 of 366), a 0.39 mm-deep site array (24th percentile), 2,770 sites/mm² (99th percentile) and a 0.23 mm³ neural interface (6th percentile).
Small sites read a local patch at higher impedance, sharpening single-unit isolation, packed densely enough to track a unit across neighbouring sites. The mid-length shank reaches structures a few millimetres down.
Orders as a probe-plus-package assembly, in 25 package configurations, 2 of them microdrive-compatible. Silicon 15 or 50 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.
a1x16_5mm_25_177
12 specs
| Channels | 16 |
|---|---|
| Shanks | 1 |
| Shank length | 5 mm |
| Site area | 177 µm² |
| Site pitch | 25 µm |
| Vertical span | 390 µm |
| Substrate | Silicon |
| Site material | Iridium |
| Thickness | 15, 50 µm |
| Neural interface volume | 0.229 mm³ (higher than 6% of 369 designs) |
| Site coverage density | 2,769.7 sites/mm² (higher than 99% of 369 designs) |
| Brain coverage density | 69.8 sites/mm³ (higher than 76% of 369 designs) |
Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.
50 options
Configure
Your selection
16-channel single-shank silicon probe, 5 mm — 15 μm, A16
A16Options
50 of 5015 μm · A16 — 16-ch
15 μm · CM16LP — 16-ch Omnetics
15 μm · H16 (21 mm cable) — 16-ch Omnetics
15 μm · HC16 (21 mm cable) — 16-ch Omnetics
15 μm · HZ16 (21 mm cable) — 16-ch Hirose
15 μm · MRCM16LP — 16-ch Omnetics
15 μm · MRH16 (21 mm cable) — 16-ch Omnetics
15 μm · OA16LP — 16-ch
15 μm · OCM16LP — 16-ch Omnetics
15 μm · OH16LP — 16-ch Omnetics
15 μm · OZ16LP — 16-ch Hirose
15 μm · X3_16 — 16-ch Molex
15 μm · X3_H16 (21 mm cable) — 16-ch Molex
15 μm · Z16 — 16-ch Hirose
50 μm · A16 — 16-ch
50 μm · CM16LP — 16-ch Omnetics
50 μm · H16 (21 mm cable) — 16-ch Omnetics
50 μm · HC16 (21 mm cable) — 16-ch Omnetics
50 μm · HZ16 (21 mm cable) — 16-ch Hirose
50 μm · MRCM16LP — 16-ch Omnetics
50 μm · MRH16 (21 mm cable) — 16-ch Omnetics
50 μm · OA16LP — 16-ch
50 μm · OCM16LP — 16-ch Omnetics
50 μm · OH16LP — 16-ch Omnetics
50 μm · OZ16LP — 16-ch Hirose
50 μm · X3_16 — 16-ch Molex
50 μm · X3_H16 (21 mm cable) — 16-ch Molex
50 μm · Z16 — 16-ch Hirose
15 μm · CM16_DUAL — 16-ch Omnetics
50 μm · CM16_DUAL — 16-ch Omnetics
15 μm · CM32_DUAL16 — 32-ch Omnetics
50 μm · CM32_DUAL16 — 32-ch Omnetics
15 μm · MROCM16LP — 16-ch Omnetics
50 μm · MROCM16LP — 16-ch Omnetics
15 μm · MROCM16LP_V2 — 16-ch Omnetics
50 μm · MROCM16LP_V2 — 16-ch Omnetics
15 μm · OHZ16LP — 16-ch Hirose
50 μm · OHZ16LP — 16-ch Hirose
15 μm · IVA16 — 16-ch
50 μm · IVA16 — 16-ch
15 μm · MRA16 — 16-ch
50 μm · MRA16 — 16-ch
15 μm · F32 — 32-ch Omnetics
50 μm · F32 — 32-ch Omnetics
15 μm · F32W — 32-ch Omnetics
50 μm · F32W — 32-ch Omnetics
15 μm · FH32 — 32-ch Omnetics
50 μm · FH32 — 32-ch Omnetics
15 μm · FH32W — 32-ch Omnetics
50 μm · FH32W — 32-ch Omnetics
Loading the compatible products…
12 metrics
Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.
Top 70% of catalog designs
Sites 16 — higher than 30% of catalog designs and 34% of its familyTop 58% of catalog designs
Shanks 1 — higher than 42% of catalog designs and 40% of its familyTop 48% of catalog designs
Shank length 5 mm — higher than 52% of catalog designs and 61% of its familyTop 69% of catalog designs
Maximum site depth 4.96 mm — higher than 31% of catalog designs and 33% of its familyTop 47% of catalog designs
Minimum site depth 4.57 mm — higher than 53% of catalog designs and 64% of its familyTop 90% of catalog designs
Span, x 0.015 mm — higher than 10% of catalog designs and 6% of its familyTop 76% of catalog designs
Span, y 0.39 mm — higher than 24% of catalog designs and 19% of its familyTop 68% of catalog designs
Site pitch, y 0.025 µm — higher than 32% of catalog designs and 9% of its familyTop 95% of catalog designs
Site outline area 0.006 mm² — higher than 5% of catalog designs and 1% of its familyTop 94% of catalog designs
Neural interface volume 0.229 mm³ — higher than 6% of catalog designs and 1% of its familyTop 1% of catalog designs
Site coverage density 2769.7 sites/mm² — higher than 99% of catalog designs and 97% of its familyTop 24% of catalog designs
Brain coverage density 69.85 sites/mm³ — higher than 76% of catalog designs and 86% of its family4 notes · Spending a fixed site budget · Geometry · Construction …
22 links · A Brief History of Neural Electrode Technology · Care, Use and Handling · Choosing an Electrode for Your Experiment …
Cited in 2,342 publications (product line)
