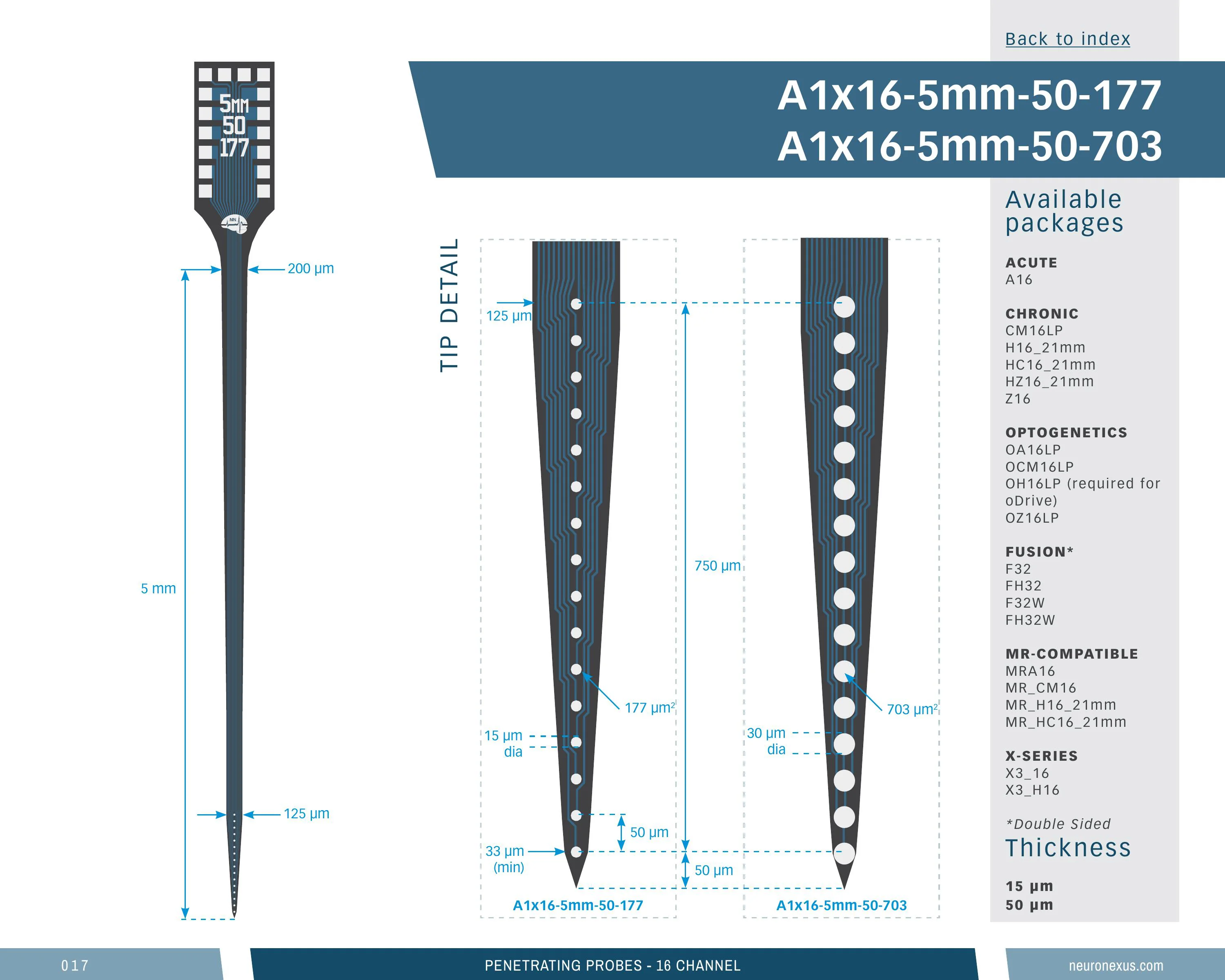

Linear Single-Shank 16-Channel Probe, 5 mm
16-site A-Series probe, 1 shank, 5 mm, 703 µm², 50 µm pitch
A single mid-length shank with sites spread evenly down the shank, one per row, for a profile across depth. Among the 369 probe designs in the design space it is mid-range: 16 sites (a common choice — 84 of 369), 5 mm shanks (a common choice — 108 of 366), a 0.78 mm-deep site array (47th percentile), 691 sites/mm² (72nd percentile) and a 0.34 mm³ neural interface (19th percentile).
Large sites read a wider patch at lower impedance, suited to field potentials and multi-unit activity, spaced for a laminar profile. The mid-length shank reaches structures a few millimetres down.
Orders as a probe-plus-package assembly, in 25 package configurations, 2 of them microdrive-compatible. Silicon 15 or 50 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.
a1x16_5mm_50_703
12 specs
| Channels | 16 |
|---|---|
| Shanks | 1 |
| Shank length | 5 mm |
| Site area | 703 µm² |
| Site pitch | 50 µm |
| Vertical span | 780 µm |
| Substrate | Silicon |
| Site material | Iridium |
| Thickness | 15, 50 µm |
| Neural interface volume | 0.339 mm³ (higher than 19% of 369 designs) |
| Site coverage density | 691.5 sites/mm² (higher than 72% of 369 designs) |
| Brain coverage density | 47.2 sites/mm³ (higher than 50% of 369 designs) |
Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.
50 options
Configure
Your selection
16-channel single-shank silicon probe, 5 mm — 15 μm, A16
A16Options
50 of 5015 μm · A16 — 16-ch
15 μm · CM16LP — 16-ch Omnetics
15 μm · H16 (21 mm cable) — 16-ch Omnetics
15 μm · HC16 (21 mm cable) — 16-ch Omnetics
15 μm · HZ16 (21 mm cable) — 16-ch Hirose
15 μm · MRA16 — 16-ch
15 μm · MRH16 (21 mm cable) — 16-ch Omnetics
15 μm · OA16LP — 16-ch
15 μm · OCM16LP — 16-ch Omnetics
15 μm · OH16LP — 16-ch Omnetics
15 μm · OZ16LP — 16-ch Hirose
15 μm · X3_16 — 16-ch Molex
15 μm · X3_H16 (21 mm cable) — 16-ch Molex
15 μm · Z16 — 16-ch Hirose
50 μm · A16 — 16-ch
50 μm · CM16LP — 16-ch Omnetics
50 μm · H16 (21 mm cable) — 16-ch Omnetics
50 μm · HC16 (21 mm cable) — 16-ch Omnetics
50 μm · HZ16 (21 mm cable) — 16-ch Hirose
50 μm · MRA16 — 16-ch
50 μm · MRH16 (21 mm cable) — 16-ch Omnetics
50 μm · OA16LP — 16-ch
50 μm · OCM16LP — 16-ch Omnetics
50 μm · OH16LP — 16-ch Omnetics
50 μm · OZ16LP — 16-ch Hirose
50 μm · X3_16 — 16-ch Molex
50 μm · X3_H16 (21 mm cable) — 16-ch Molex
50 μm · Z16 — 16-ch Hirose
15 μm · CM16_DUAL — 16-ch Omnetics
50 μm · CM16_DUAL — 16-ch Omnetics
15 μm · CM32_DUAL16 — 32-ch Omnetics
50 μm · CM32_DUAL16 — 32-ch Omnetics
15 μm · MRCM16LP — 16-ch Omnetics
50 μm · MRCM16LP — 16-ch Omnetics
15 μm · MROCM16LP — 16-ch Omnetics
50 μm · MROCM16LP — 16-ch Omnetics
15 μm · MROCM16LP_V2 — 16-ch Omnetics
50 μm · MROCM16LP_V2 — 16-ch Omnetics
15 μm · OHZ16LP — 16-ch Hirose
50 μm · OHZ16LP — 16-ch Hirose
15 μm · IVA16 — 16-ch
50 μm · IVA16 — 16-ch
15 μm · F32 — 32-ch Omnetics
50 μm · F32 — 32-ch Omnetics
15 μm · F32W — 32-ch Omnetics
50 μm · F32W — 32-ch Omnetics
15 μm · FH32 — 32-ch Omnetics
50 μm · FH32 — 32-ch Omnetics
15 μm · FH32W — 32-ch Omnetics
50 μm · FH32W — 32-ch Omnetics
Loading the compatible products…
12 metrics
Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.
Top 70% of catalog designs
Sites 16 — higher than 30% of catalog designs and 34% of its familyTop 58% of catalog designs
Shanks 1 — higher than 42% of catalog designs and 40% of its familyTop 48% of catalog designs
Shank length 5 mm — higher than 52% of catalog designs and 61% of its familyTop 55% of catalog designs
Maximum site depth 4.96 mm — higher than 45% of catalog designs and 57% of its familyTop 57% of catalog designs
Minimum site depth 4.19 mm — higher than 43% of catalog designs and 52% of its familyTop 73% of catalog designs
Span, x 0.03 mm — higher than 27% of catalog designs and 36% of its familyTop 53% of catalog designs
Span, y 0.78 mm — higher than 47% of catalog designs and 43% of its familyTop 44% of catalog designs
Site pitch, y 0.05 µm — higher than 56% of catalog designs and 42% of its familyTop 82% of catalog designs
Site outline area 0.023 mm² — higher than 18% of catalog designs and 17% of its familyTop 81% of catalog designs
Neural interface volume 0.339 mm³ — higher than 19% of catalog designs and 13% of its familyTop 28% of catalog designs
Site coverage density 691.5 sites/mm² — higher than 72% of catalog designs and 75% of its familyTop 50% of catalog designs
Brain coverage density 47.21 sites/mm³ — higher than 50% of catalog designs and 55% of its family4 notes · Spending a fixed site budget · Geometry · Construction …
