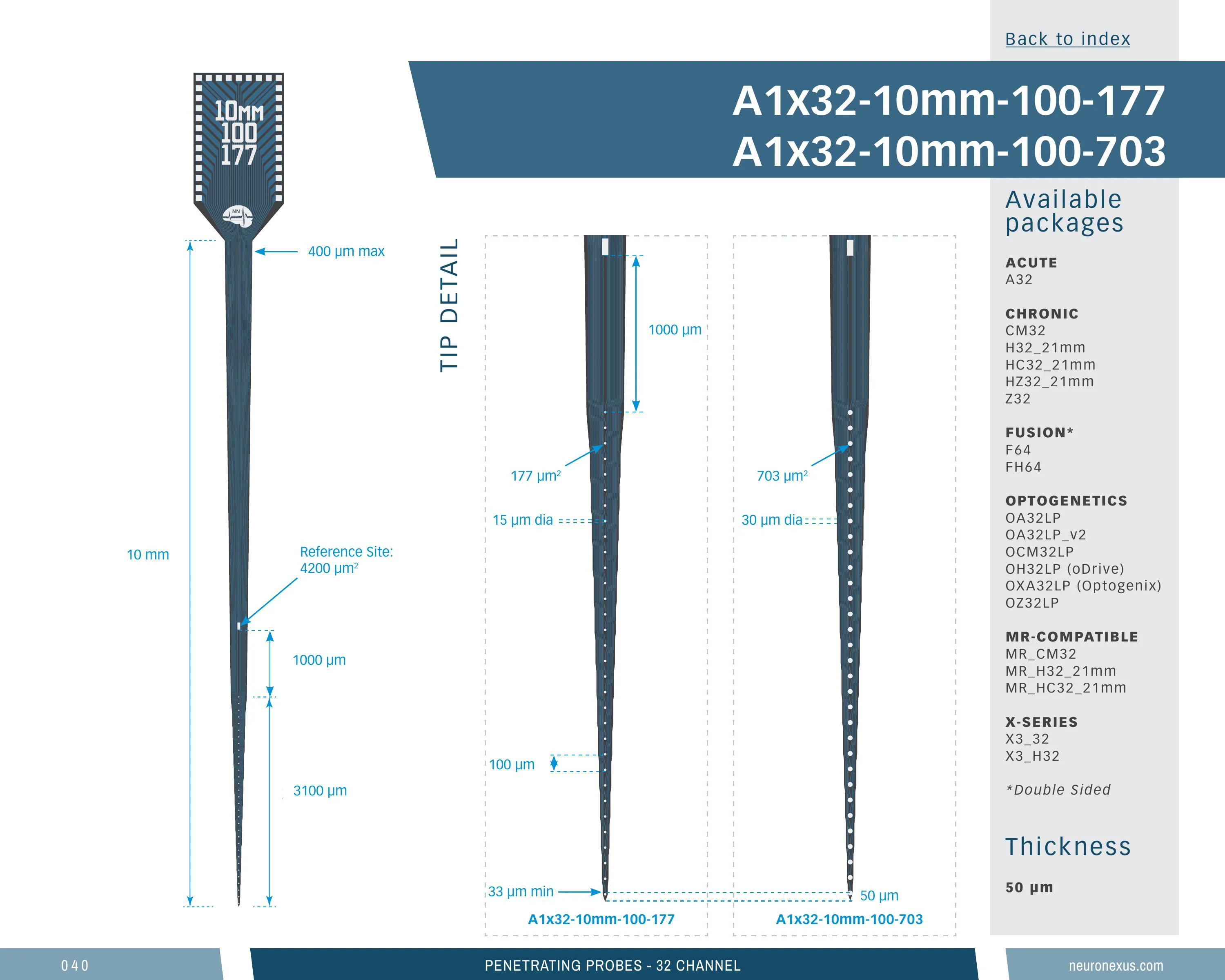

32-site A-Series probe, 1 shank, 10 mm, 177 µm², 100 µm pitch, linear
A single long shank with sites spread evenly down the shank, one per row, for a profile across depth. Among the 369 probe designs in the design space it is mid-range: 32 sites (a common choice — 158 of 369), 10 mm shanks (a common choice — 80 of 366), a 3.11 mm-deep site array (86th percentile), 693 sites/mm² (73rd percentile) and a 0.93 mm³ neural interface (66th percentile).
Small sites read a local patch at higher impedance, sharpening single-unit isolation, spaced for a laminar profile. The long shank reaches deep targets.
Orders as a probe-plus-package assembly, in 24 package configurations, 2 of them microdrive-compatible. Silicon 15 or 50 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.
a1x32_10mm_100_177
12 specs
| Channels | 32 |
|---|---|
| Shanks | 1 |
| Shank length | 10 mm |
| Site area | 177 µm² |
| Site pitch | 100 µm |
| Vertical span | 3115 µm |
| Substrate | Silicon |
| Site material | Iridium |
| Thickness | 15, 50 µm |
| Neural interface volume | 0.931 mm³ (higher than 66% of 369 designs) |
| Site coverage density | 692.8 sites/mm² (higher than 73% of 369 designs) |
| Brain coverage density | 34.4 sites/mm³ (higher than 37% of 369 designs) |
Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.
48 options
Configure
Your selection
32-channel single-shank silicon probe, 10 mm — 15 μm, A32
A32Options
48 of 4815 μm · A32 — 32-ch Samtec
15 μm · CM32 — 32-ch Omnetics
15 μm · H32 (21 mm cable) — 32-ch Omnetics
15 μm · HC32 (21 mm cable) — 32-ch Omnetics
15 μm · HZ32 (21 mm cable) — 32-ch Hirose
15 μm · MRCM32 — 32-ch
15 μm · OA32LP — 32-ch Samtec
15 μm · X3_32 — 32-ch Molex
15 μm · X3_H32 (21 mm cable) — 32-ch Molex
15 μm · Z32 — 32-ch Hirose
50 μm · A32 — 32-ch Samtec
50 μm · CM32 — 32-ch Omnetics
50 μm · H32 (21 mm cable) — 32-ch Omnetics
50 μm · HC32 (21 mm cable) — 32-ch Omnetics
50 μm · HZ32 (21 mm cable) — 32-ch Hirose
50 μm · MRCM32 — 32-ch
50 μm · OA32LP — 32-ch Samtec
50 μm · X3_32 — 32-ch Molex
50 μm · X3_H32 (21 mm cable) — 32-ch Molex
50 μm · Z32 — 32-ch Hirose
15 μm · MRH32 — 32-ch Omnetics
50 μm · MRH32 — 32-ch Omnetics
15 μm · MRHC32 — 32-ch Omnetics
50 μm · MRHC32 — 32-ch Omnetics
15 μm · OH32LP — 32-ch Omnetics
50 μm · OH32LP — 32-ch Omnetics
15 μm · OHZ32LP — 32-ch Hirose
50 μm · OHZ32LP — 32-ch Hirose
15 μm · OA32LP_V2 — 32-ch Samtec
50 μm · OA32LP_V2 — 32-ch Samtec
15 μm · OXA32LP — 32-ch Samtec
50 μm · OXA32LP — 32-ch Samtec
15 μm · MROCM32LP — 32-ch Omnetics
50 μm · MROCM32LP — 32-ch Omnetics
15 μm · OCM32LP — 32-ch Omnetics
50 μm · OCM32LP — 32-ch Omnetics
15 μm · OXCM32LP — 32-ch Omnetics
50 μm · OXCM32LP — 32-ch Omnetics
15 μm · F64 — 64-ch Omnetics
50 μm · F64 — 64-ch Omnetics
15 μm · FH64 — 64-ch Omnetics
50 μm · FH64 — 64-ch Omnetics
15 μm · MRCM16PB32 — 16-ch
50 μm · MRCM16PB32 — 16-ch
15 μm · OXH32LP_21MM — 32-ch
50 μm · OXH32LP_21MM — 32-ch
15 μm · OZ32LP — 32-ch Hirose
50 μm · OZ32LP — 32-ch Hirose
Loading the compatible products…
12 metrics
Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.
Top 26% of catalog designs
Sites 32 — higher than 74% of catalog designs and 79% of its familyTop 58% of catalog designs
Shanks 1 — higher than 42% of catalog designs and 40% of its familyTop 10% of catalog designs
Shank length 10 mm — higher than 90% of catalog designs and 94% of its familyTop 24% of catalog designs
Maximum site depth 9.96 mm — higher than 76% of catalog designs and 80% of its familyTop 29% of catalog designs
Minimum site depth 6.84 mm — higher than 71% of catalog designs and 78% of its familyTop 90% of catalog designs
Span, x 0.015 mm — higher than 10% of catalog designs and 7% of its familyTop 14% of catalog designs
Span, y 3.11 mm — higher than 86% of catalog designs and 88% of its familyTop 17% of catalog designs
Site pitch, y 0.1 µm — higher than 83% of catalog designs and 80% of its familyTop 69% of catalog designs
Site outline area 0.046 mm² — higher than 31% of catalog designs and 33% of its familyTop 34% of catalog designs
Neural interface volume 0.931 mm³ — higher than 66% of catalog designs and 64% of its familyTop 27% of catalog designs
Site coverage density 692.8 sites/mm² — higher than 73% of catalog designs and 77% of its familyTop 63% of catalog designs
Brain coverage density 34.39 sites/mm³ — higher than 37% of catalog designs and 42% of its family4 notes · Spending a fixed site budget · Geometry · Construction …
22 links · Choosing an Electrode for Your Experiment · A Brief History of Neural Electrode Technology · Care, Use and Handling …
Cited in 2,342 publications (product line)
