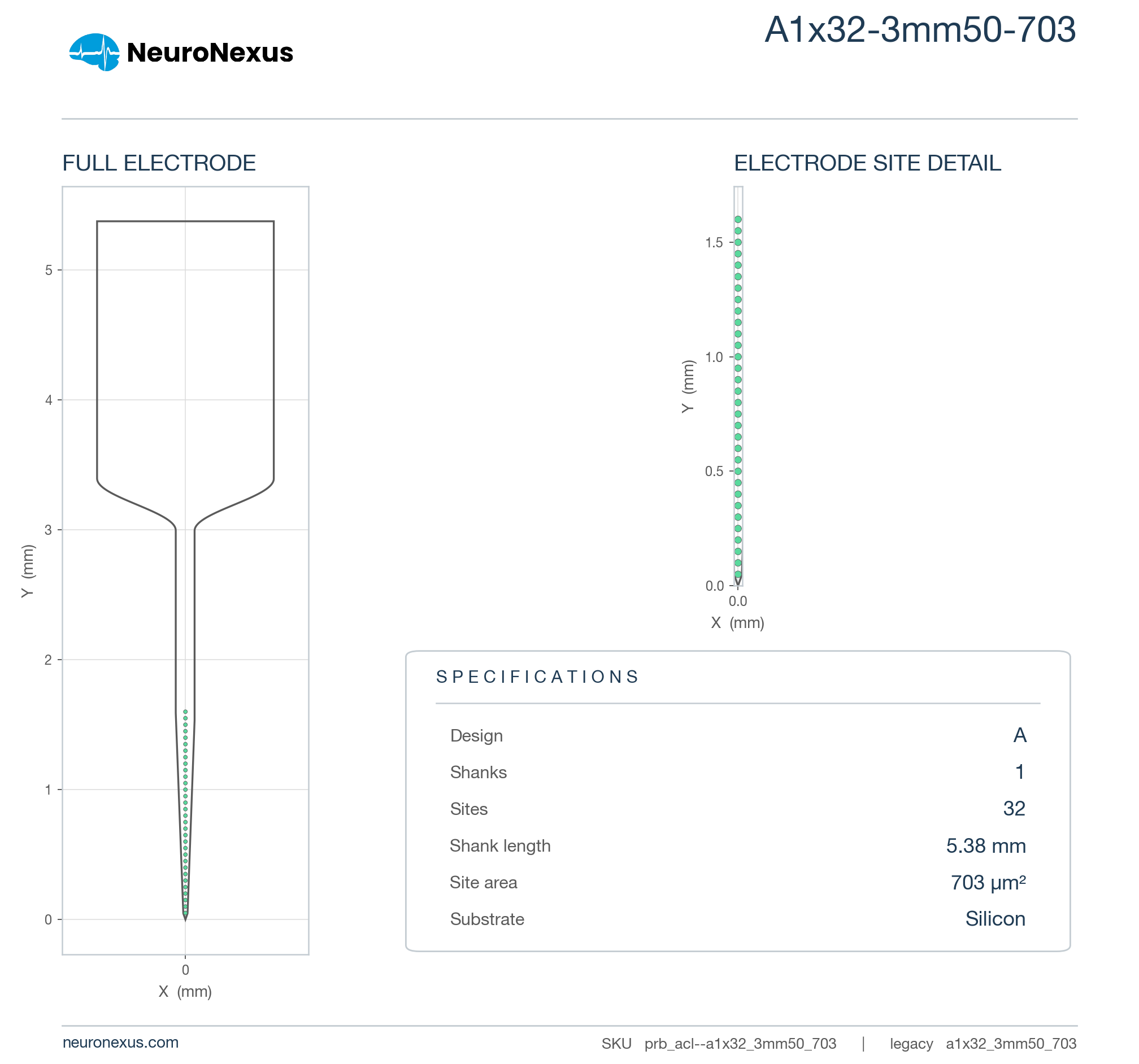

32-site A-Series probe, 1 shank, 3 mm, 703 µm²
A single short shank with sites spread evenly down the shank, one per row, for a profile across depth. Among the 369 probe designs in the design space it is mid-range: 32 sites (a common choice — 158 of 369), 3 mm shanks (a common choice — 39 of 366), a 1.58 mm-deep site array (78th percentile), 682 sites/mm² (71st percentile) and a 0.55 mm³ neural interface (43rd percentile).
Large sites read a wider patch at lower impedance, suited to field potentials and multi-unit activity, spaced for a laminar profile. The short shank suits superficial targets.
Orders as a probe-plus-package assembly, in 6 package configurations. Silicon 15 µm thick. Z-coat available. Research use only.
a1x32_3mm50_703
12 specs
| Channels | 32 |
|---|---|
| Shanks | 1 |
| Shank length | 3 mm |
| Site area | 703 µm² |
| Site pitch | 50 µm |
| Vertical span | 1580 µm |
| Substrate | Silicon |
| Site material | Iridium |
| Thickness | 15 µm |
| Neural interface volume | 0.551 mm³ (higher than 43% of 369 designs) |
| Site coverage density | 682.5 sites/mm² (higher than 71% of 369 designs) |
| Brain coverage density | 58.1 sites/mm³ (higher than 63% of 369 designs) |
Narrow the options with the filters or pick a card, then contact us to order that configuration.
6 options
Configure
Your selection
32-channel single-shank silicon probe, 3 mm — 15 μm, CM32
CM32Options
6 of 6CM32 — 32-ch Omnetics
MRCM32 — 32-ch
MRH32 (21 mm cable) — 32-ch Omnetics
X3_32 — 32-ch Molex
X3_H32 (21 mm cable) — 32-ch Molex
Z32 — 32-ch Hirose
Loading the compatible products…
12 metrics
Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.
Top 26% of catalog designs
Sites 32 — higher than 74% of catalog designs and 79% of its familyTop 58% of catalog designs
Shanks 1 — higher than 42% of catalog designs and 40% of its familyTop 80% of catalog designs
Shank length 3 mm — higher than 20% of catalog designs and 24% of its familyTop 82% of catalog designs
Maximum site depth 2.96 mm — higher than 18% of catalog designs and 21% of its familyTop 93% of catalog designs
Minimum site depth 1.39 mm — higher than 7% of catalog designs and 5% of its familyTop 72% of catalog designs
Span, x 0.03 mm — higher than 28% of catalog designs and 37% of its familyTop 22% of catalog designs
Span, y 1.58 mm — higher than 78% of catalog designs and 82% of its familyTop 44% of catalog designs
Site pitch, y 0.05 µm — higher than 56% of catalog designs and 42% of its familyTop 68% of catalog designs
Site outline area 0.047 mm² — higher than 32% of catalog designs and 35% of its familyTop 57% of catalog designs
Neural interface volume 0.551 mm³ — higher than 43% of catalog designs and 41% of its familyTop 29% of catalog designs
Site coverage density 682.5 sites/mm² — higher than 71% of catalog designs and 73% of its familyTop 37% of catalog designs
Brain coverage density 58.09 sites/mm³ — higher than 63% of catalog designs and 73% of its family3 notes · Geometry · Construction · Packaging and connector options
