Neural Probes · A-Series

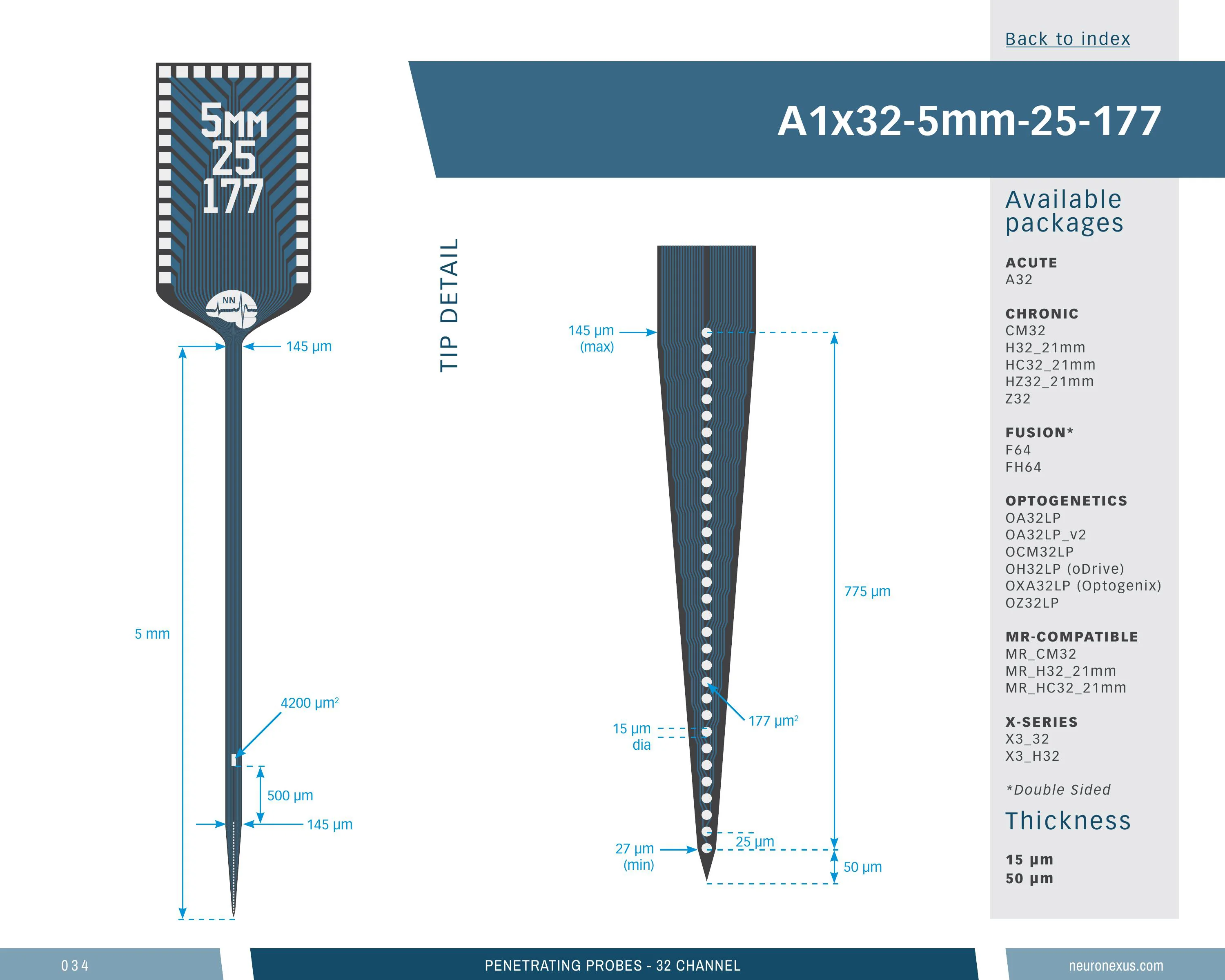

Linear Single-Shank 32-Channel Probe, 5 mm

32Sites
1Shanks
5mmShank Length
25µmSite Pitch
Part no.A1x32-5mm-25-177
Contents

32-site A-Series probe, 1 shank, 5 mm, 25 µm pitch

A single mid-length shank with sites spread evenly down the shank, one per row, for a profile across depth. Among the 369 probe designs in the design space it is mid-range: 32 sites (a common choice — 158 of 369), 5 mm shanks (a common choice — 108 of 366), a 0.79 mm-deep site array (50th percentile), 2,721 sites/mm² (97th percentile) and a 0.33 mm³ neural interface (17th percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, packed densely enough to track a unit across neighbouring sites. The mid-length shank reaches structures a few millimetres down.

Orders as a probe-plus-package assembly, in 24 package configurations, 1 of them microdrive-compatible. Silicon 15 or 50 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

a1x32_5mm_25_177

Linear Single-Shank 32-Channel Probe, 5 mmSKU prb_acl--a1x32_5mm_25_177

12 specs

Channels32
Shanks1
Shank length5 mm
Site area177 µm²
Site pitch25 µm
Vertical span790 µm
SubstrateSilicon
Site materialIridium
Thickness15, 50 µm
Neural interface volume0.332 mm³ (higher than 17% of 369 designs)
Site coverage density2,720.9 sites/mm² (higher than 97% of 369 designs)
Brain coverage density96.4 sites/mm³ (higher than 86% of 369 designs)
Linear Single-Shank 32-Channel Probe, 5 mmSKU prb_acl--a1x32_5mm_25_177

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

48 options

Configure

Substrate Thickness
All
15 μm
50 μm
Compatible Package
All
A32 — 32-ch Samtec
CM32 — 32-ch Omnetics
F64 — 64-ch Omnetics
FH64 — 64-ch Omnetics
H32 (21 mm cable) — 32-ch Omnetics
HC32 (21 mm cable) — 32-ch Omnetics
HZ32 (21 mm cable) — 32-ch Hirose
MRCM16PB32 — 16-ch
MRCM32 — 32-ch
MRH32 (21 mm cable) — 32-ch Omnetics
MRHC32 — 32-ch Omnetics
MROCM32LP — 32-ch Omnetics
OA32LP — 32-ch Samtec
OA32LP_V2 — 32-ch Samtec
OCM32LP — 32-ch Omnetics
OH32LP (21 mm cable) — 32-ch Omnetics
OHZ32LP — 32-ch Hirose
OXA32LP — 32-ch Samtec
OXCM32LP — 32-ch Omnetics
OXH32LP_21MM — 32-ch
OZ32LP — 32-ch Hirose
X3_32 — 32-ch Molex
X3_H32 (21 mm cable) — 32-ch Molex
Z32 — 32-ch Hirose

Your selection

32-channel single-shank silicon probe, 5 mm — 15 μm, A32
A32
Substrate Thickness: 15 μm
Compatible Package: A32 — 32-ch Samtec
SKUprb_acl--a1x32_5mm_25_177.15um.a32
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

48 of 48
Linear Single-Shank 32-Channel Probe, 5 mmSKU prb_acl--a1x32_5mm_25_177

Loading the compatible products…

Linear Single-Shank 32-Channel Probe, 5 mmSKU prb_acl--a1x32_5mm_25_177

12 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
32
41024

Top 26% of catalog designs

Sites 32 — higher than 74% of catalog designs and 79% of its family
Shanks
1
116

Top 58% of catalog designs

Shanks 1 — higher than 42% of catalog designs and 40% of its family
Shank length
5 mm
1 mm60 mm

Top 48% of catalog designs

Shank length 5 mm — higher than 52% of catalog designs and 61% of its family
Maximum site depth
4.96 mm
0.972 mm51.29 mm

Top 70% of catalog designs

Maximum site depth 4.96 mm — higher than 30% of catalog designs and 32% of its family
Minimum site depth
4.17 mm
0.067 mm44.74 mm

Top 58% of catalog designs

Minimum site depth 4.17 mm — higher than 42% of catalog designs and 50% of its family
Span, x
0.015 mm
0.01 mm6.03 mm

Top 85% of catalog designs

Span, x 0.015 mm — higher than 15% of catalog designs and 16% of its family
Span, y
0.79 mm
0.01 mm10.55 mm

Top 50% of catalog designs

Span, y 0.79 mm — higher than 50% of catalog designs and 47% of its family
Site pitch, y
0.025 µm
0.01 µm1.5 µm

Top 68% of catalog designs

Site pitch, y 0.025 µm — higher than 32% of catalog designs and 9% of its family
Site outline area
0.012 mm²
0.002 mm²28.74 mm²

Top 91% of catalog designs

Site outline area 0.012 mm² — higher than 9% of catalog designs and 7% of its family
Neural interface volume
0.332 mm³
0.149 mm³17.19 mm³

Top 83% of catalog designs

Neural interface volume 0.332 mm³ — higher than 17% of catalog designs and 10% of its family
Site coverage density
2720.9 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 3% of catalog designs

Site coverage density 2720.9 sites/mm² — higher than 97% of catalog designs and 95% of its family
Brain coverage density
96.36 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 14% of catalog designs

Brain coverage density 96.36 sites/mm³ — higher than 86% of catalog designs and 92% of its family
