Linear Single-Shank 32-Channel Probe, 6 mm

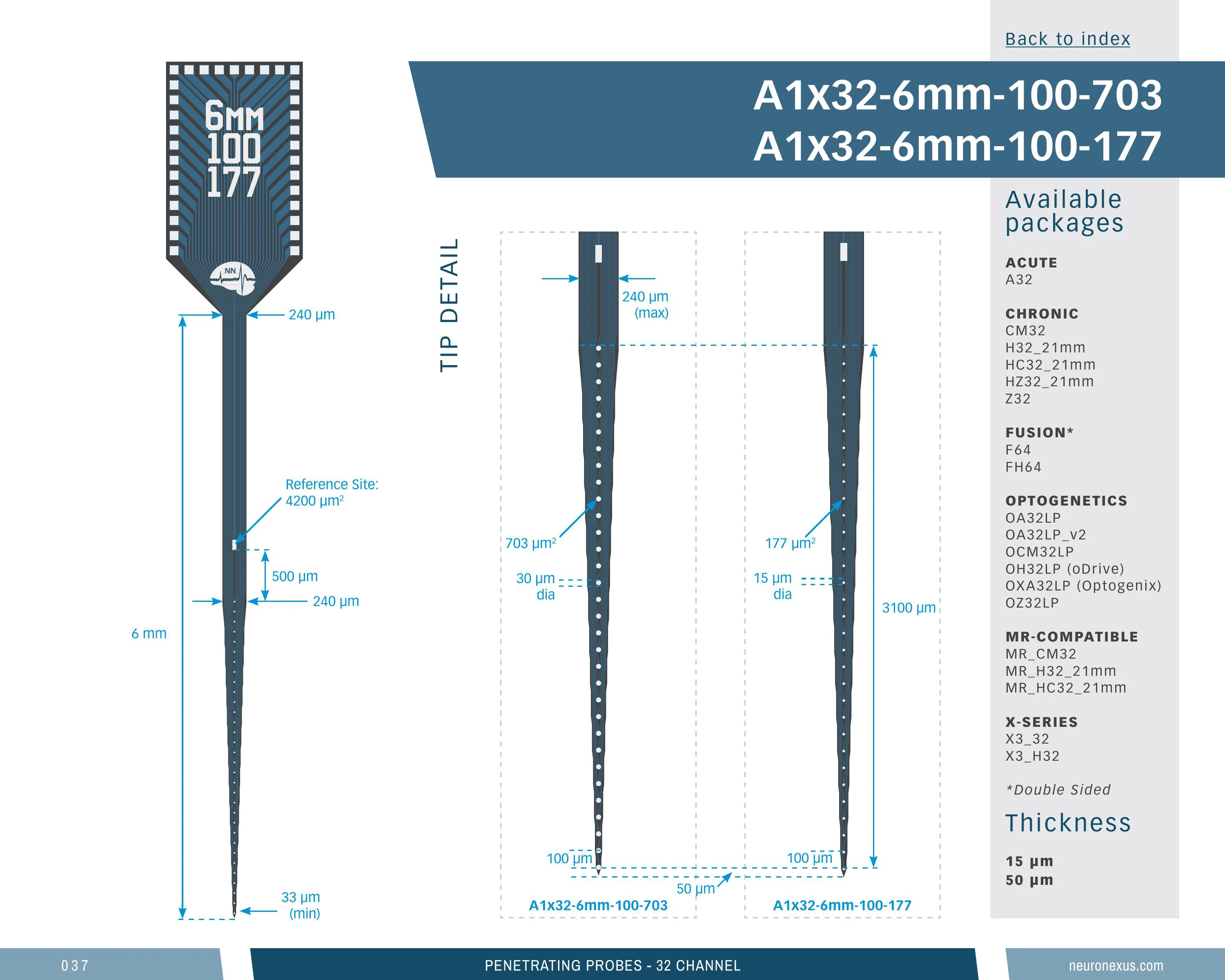

32-site A-Series probe, 1 shank, 6 mm, 703 µm², 100 µm pitch
A single mid-length shank with sites spread evenly down the shank, one per row, for a profile across depth. Among the 369 probe designs in the design space it is mid-range: 32 sites (a common choice — 158 of 369), 6 mm shanks (61st percentile of the 366 measured), a 3.13 mm-deep site array (91st percentile), 345 sites/mm² (58th percentile) and a 0.96 mm³ neural interface (70th percentile).
Large sites read a wider patch at lower impedance, suited to field potentials and multi-unit activity, spaced for a laminar profile. The mid-length shank reaches structures a few millimetres down.
Orders as a probe-plus-package assembly, in 24 package configurations, 2 of them microdrive-compatible. Silicon 15 or 50 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.
a1x32_6mm_100_703
12 specs
| Channels | 32 |
|---|---|
| Shanks | 1 |
| Shank length | 6 mm |
| Site area | 703 µm² |
| Site pitch | 100 µm |
| Vertical span | 3130 µm |
| Substrate | Silicon |
| Site material | Iridium |
| Thickness | 15, 50 µm |
| Neural interface volume | 0.961 mm³ (higher than 70% of 369 designs) |
| Site coverage density | 344.6 sites/mm² (higher than 58% of 369 designs) |
| Brain coverage density | 33.3 sites/mm³ (higher than 33% of 369 designs) |
Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.
48 options
Configure
Your selection
32-channel single-shank silicon probe, 6 mm — 15 μm, A32
A32Options
48 of 4815 μm · A32 — 32-ch Samtec
15 μm · CM32 — 32-ch Omnetics
15 μm · H32 (21 mm cable) — 32-ch Omnetics
15 μm · HC32 (21 mm cable) — 32-ch Omnetics
15 μm · HZ32 (21 mm cable) — 32-ch Hirose
15 μm · MRCM32 — 32-ch
15 μm · MRH32 (21 mm cable) — 32-ch Omnetics
15 μm · OCM32LP — 32-ch Omnetics
15 μm · X3_32 — 32-ch Molex
15 μm · X3_H32 (21 mm cable) — 32-ch Molex
15 μm · Z32 — 32-ch Hirose
50 μm · A32 — 32-ch Samtec
50 μm · CM32 — 32-ch Omnetics
50 μm · H32 (21 mm cable) — 32-ch Omnetics
50 μm · HC32 (21 mm cable) — 32-ch Omnetics
50 μm · HZ32 (21 mm cable) — 32-ch Hirose
50 μm · MRCM32 — 32-ch
50 μm · MRH32 (21 mm cable) — 32-ch Omnetics
50 μm · OCM32LP — 32-ch Omnetics
50 μm · X3_32 — 32-ch Molex
50 μm · X3_H32 (21 mm cable) — 32-ch Molex
50 μm · Z32 — 32-ch Hirose
15 μm · MRHC32 — 32-ch Omnetics
50 μm · MRHC32 — 32-ch Omnetics
15 μm · OH32LP — 32-ch Omnetics
50 μm · OH32LP — 32-ch Omnetics
15 μm · OHZ32LP — 32-ch Hirose
50 μm · OHZ32LP — 32-ch Hirose
15 μm · OA32LP — 32-ch Samtec
50 μm · OA32LP — 32-ch Samtec
15 μm · OA32LP_V2 — 32-ch Samtec
50 μm · OA32LP_V2 — 32-ch Samtec
15 μm · OXA32LP — 32-ch Samtec
50 μm · OXA32LP — 32-ch Samtec
15 μm · MROCM32LP — 32-ch Omnetics
50 μm · MROCM32LP — 32-ch Omnetics
15 μm · OXCM32LP — 32-ch Omnetics
50 μm · OXCM32LP — 32-ch Omnetics
15 μm · F64 — 64-ch Omnetics
50 μm · F64 — 64-ch Omnetics
15 μm · FH64 — 64-ch Omnetics
50 μm · FH64 — 64-ch Omnetics
15 μm · MRCM16PB32 — 16-ch
50 μm · MRCM16PB32 — 16-ch
15 μm · OXH32LP_21MM — 32-ch
50 μm · OXH32LP_21MM — 32-ch
15 μm · OZ32LP — 32-ch Hirose
50 μm · OZ32LP — 32-ch Hirose
Loading the compatible products…
12 metrics
Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.
Top 26% of catalog designs
Sites 32 — higher than 74% of catalog designs and 79% of its familyTop 58% of catalog designs
Shanks 1 — higher than 42% of catalog designs and 40% of its familyTop 39% of catalog designs
Shank length 6 mm — higher than 61% of catalog designs and 72% of its familyTop 41% of catalog designs
Maximum site depth 5.96 mm — higher than 59% of catalog designs and 71% of its familyTop 75% of catalog designs
Minimum site depth 2.84 mm — higher than 25% of catalog designs and 29% of its familyTop 73% of catalog designs
Span, x 0.03 mm — higher than 27% of catalog designs and 36% of its familyTop 9% of catalog designs
Span, y 3.13 mm — higher than 91% of catalog designs and 96% of its familyTop 17% of catalog designs
Site pitch, y 0.1 µm — higher than 83% of catalog designs and 80% of its familyTop 56% of catalog designs
Site outline area 0.093 mm² — higher than 44% of catalog designs and 45% of its familyTop 30% of catalog designs
Neural interface volume 0.961 mm³ — higher than 70% of catalog designs and 71% of its familyTop 42% of catalog designs
Site coverage density 344.6 sites/mm² — higher than 58% of catalog designs and 61% of its familyTop 67% of catalog designs
Brain coverage density 33.29 sites/mm³ — higher than 33% of catalog designs and 36% of its family4 notes · Spending a fixed site budget · Geometry · Construction …
22 links · A Brief History of Neural Electrode Technology · Care, Use and Handling · Choosing an Electrode for Your Experiment …
Cited in 2,342 publications (product line)
