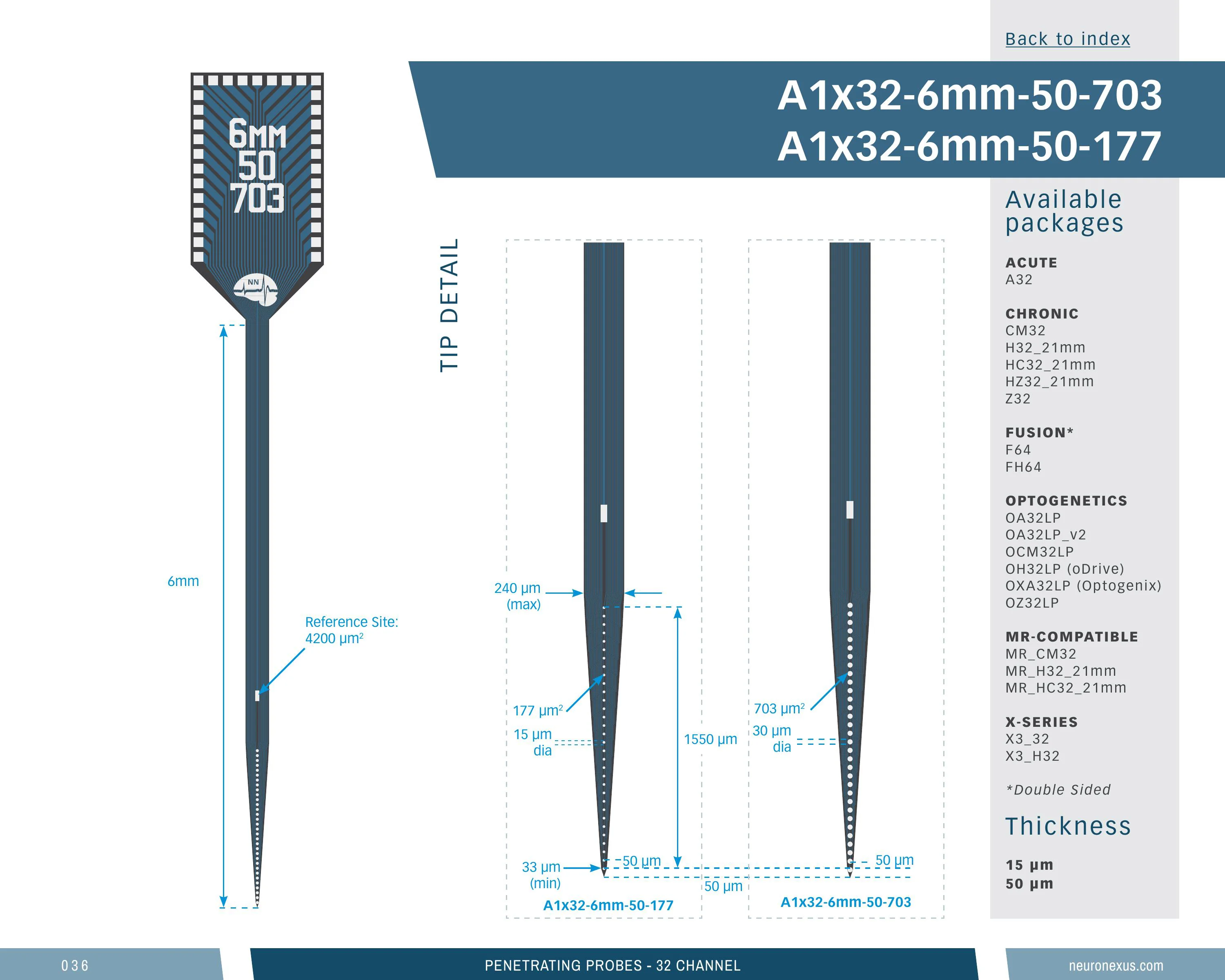

32-site A-Series probe, 1 shank, 6 mm, 177 µm², 50 µm pitch
A single mid-length shank with sites spread evenly down the shank, one per row, for a profile across depth. Among the 369 probe designs in the design space it is mid-range: 32 sites (a common choice — 158 of 369), 6 mm shanks (61st percentile of the 366 measured), a 1.56 mm-deep site array (74th percentile), 1,378 sites/mm² (89th percentile) and a 0.53 mm³ neural interface (39th percentile).
Small sites read a local patch at higher impedance, sharpening single-unit isolation, spaced for a laminar profile. The mid-length shank reaches structures a few millimetres down.
Orders as a probe-plus-package assembly, in 24 package configurations, 2 of them microdrive-compatible. Silicon 15 or 50 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.
a1x32_6mm_50_177
12 specs
| Channels | 32 |
|---|---|
| Shanks | 1 |
| Shank length | 6 mm |
| Site area | 177 µm² |
| Site pitch | 50 µm |
| Vertical span | 1565 µm |
| Substrate | Silicon |
| Site material | Iridium |
| Thickness | 15, 50 µm |
| Neural interface volume | 0.532 mm³ (higher than 39% of 369 designs) |
| Site coverage density | 1,378.3 sites/mm² (higher than 89% of 369 designs) |
| Brain coverage density | 60.2 sites/mm³ (higher than 67% of 369 designs) |
Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.
48 options
Configure
Your selection
32-channel single-shank silicon probe, 6 mm — 15 μm, A32
A32Options
48 of 4815 μm · A32 — 32-ch Samtec
15 μm · CM32 — 32-ch Omnetics
15 μm · H32 (21 mm cable) — 32-ch Omnetics
15 μm · HC32 (21 mm cable) — 32-ch Omnetics
15 μm · HZ32 (21 mm cable) — 32-ch Hirose
15 μm · MRCM32 — 32-ch
15 μm · MRH32 (21 mm cable) — 32-ch Omnetics
15 μm · OA32LP — 32-ch Samtec
15 μm · OCM32LP — 32-ch Omnetics
15 μm · OH32LP (21 mm cable) — 32-ch Omnetics
15 μm · OZ32LP — 32-ch Hirose
15 μm · X3_32 — 32-ch Molex
15 μm · Z32 — 32-ch Hirose
50 μm · A32 — 32-ch Samtec
50 μm · CM32 — 32-ch Omnetics
50 μm · H32 (21 mm cable) — 32-ch Omnetics
50 μm · HC32 (21 mm cable) — 32-ch Omnetics
50 μm · HZ32 (21 mm cable) — 32-ch Hirose
50 μm · MRCM32 — 32-ch
50 μm · MRH32 (21 mm cable) — 32-ch Omnetics
50 μm · OA32LP — 32-ch Samtec
50 μm · OCM32LP — 32-ch Omnetics
50 μm · OH32LP (21 mm cable) — 32-ch Omnetics
50 μm · OZ32LP — 32-ch Hirose
50 μm · X3_32 — 32-ch Molex
50 μm · Z32 — 32-ch Hirose
15 μm · MRHC32 — 32-ch Omnetics
50 μm · MRHC32 — 32-ch Omnetics
15 μm · OHZ32LP — 32-ch Hirose
50 μm · OHZ32LP — 32-ch Hirose
15 μm · OA32LP_V2 — 32-ch Samtec
50 μm · OA32LP_V2 — 32-ch Samtec
15 μm · OXA32LP — 32-ch Samtec
50 μm · OXA32LP — 32-ch Samtec
15 μm · MROCM32LP — 32-ch Omnetics
50 μm · MROCM32LP — 32-ch Omnetics
15 μm · OXCM32LP — 32-ch Omnetics
50 μm · OXCM32LP — 32-ch Omnetics
15 μm · F64 — 64-ch Omnetics
50 μm · F64 — 64-ch Omnetics
15 μm · FH64 — 64-ch Omnetics
50 μm · FH64 — 64-ch Omnetics
15 μm · MRCM16PB32 — 16-ch
50 μm · MRCM16PB32 — 16-ch
15 μm · OXH32LP_21MM — 32-ch
50 μm · OXH32LP_21MM — 32-ch
15 μm · X3_H32 — 32-ch Molex
50 μm · X3_H32 — 32-ch Molex
Loading the compatible products…
12 metrics
Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.
Top 26% of catalog designs
Sites 32 — higher than 74% of catalog designs and 79% of its familyTop 58% of catalog designs
Shanks 1 — higher than 42% of catalog designs and 40% of its familyTop 39% of catalog designs
Shank length 6 mm — higher than 61% of catalog designs and 72% of its familyTop 45% of catalog designs
Maximum site depth 5.96 mm — higher than 55% of catalog designs and 63% of its familyTop 51% of catalog designs
Minimum site depth 4.39 mm — higher than 49% of catalog designs and 60% of its familyTop 86% of catalog designs
Span, x 0.015 mm — higher than 14% of catalog designs and 14% of its familyTop 26% of catalog designs
Span, y 1.56 mm — higher than 74% of catalog designs and 77% of its familyTop 44% of catalog designs
Site pitch, y 0.05 µm — higher than 56% of catalog designs and 42% of its familyTop 82% of catalog designs
Site outline area 0.023 mm² — higher than 18% of catalog designs and 18% of its familyTop 61% of catalog designs
Neural interface volume 0.532 mm³ — higher than 39% of catalog designs and 33% of its familyTop 11% of catalog designs
Site coverage density 1378.3 sites/mm² — higher than 89% of catalog designs and 89% of its familyTop 33% of catalog designs
Brain coverage density 60.2 sites/mm³ — higher than 67% of catalog designs and 77% of its family4 notes · Spending a fixed site budget · Geometry · Construction …
22 links · A Brief History of Neural Electrode Technology · Care, Use and Handling · Choosing an Electrode for Your Experiment …
Cited in 2,342 publications (product line)
