Neural Probes · A-Series

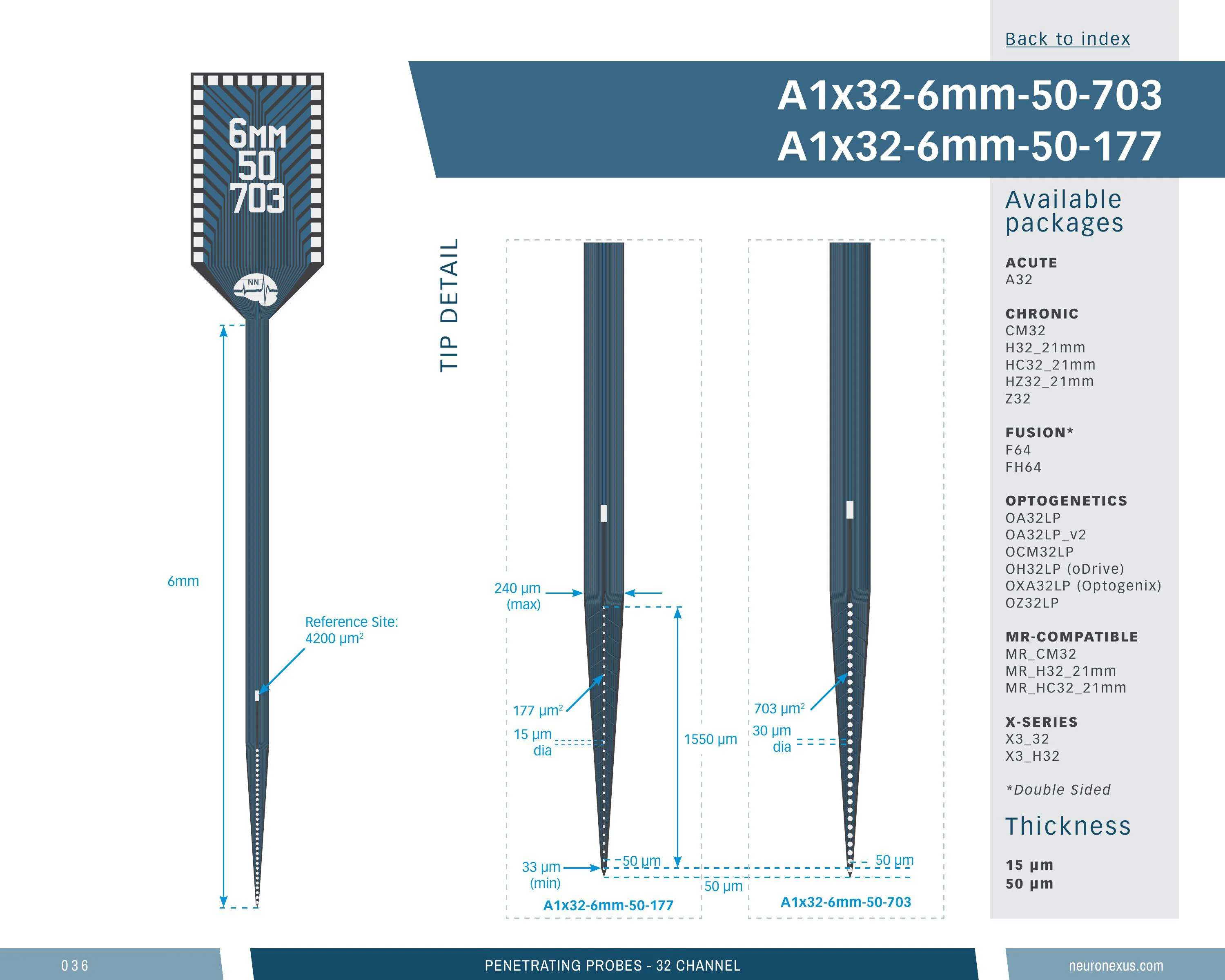

Linear Single-Shank 32-Channel Probe, 6 mm

32Sites
1Shanks
6mmShank Length
50µmSite Pitch
Part no.A1x32-6mm-50-703
Contents

32-site A-Series probe, 1 shank, 6 mm, 703 µm², 50 µm pitch

A single mid-length shank with sites spread evenly down the shank, one per row, for a profile across depth. Among the 369 probe designs in the design space it is mid-range: 32 sites (a common choice — 158 of 369), 6 mm shanks (61st percentile of the 366 measured), a 1.58 mm-deep site array (77th percentile), 683 sites/mm² (72nd percentile) and a 0.55 mm³ neural interface (43rd percentile).

Large sites read a wider patch at lower impedance, suited to field potentials and multi-unit activity, spaced for a laminar profile. The mid-length shank reaches structures a few millimetres down.

Orders as a probe-plus-package assembly, in 24 package configurations, 2 of them microdrive-compatible. Silicon 15 or 50 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

a1x32_6mm_50_703 · a1x32_6mm_50_70

Linear Single-Shank 32-Channel Probe, 6 mmSKU prb_acl--a1x32_6mm_50_703

12 specs

Channels32
Shanks1
Shank length6 mm
Site area703 µm²
Site pitch50 µm
Vertical span1580 µm
SubstrateSilicon
Site materialIridium
Thickness15, 50 µm
Neural interface volume0.551 mm³ (higher than 43% of 369 designs)
Site coverage density682.6 sites/mm² (higher than 72% of 369 designs)
Brain coverage density58.1 sites/mm³ (higher than 64% of 369 designs)
Linear Single-Shank 32-Channel Probe, 6 mmSKU prb_acl--a1x32_6mm_50_703

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

48 options

Configure

Substrate Thickness
All
15 μm
50 μm
Compatible Package
All
A32 — 32-ch Samtec
CM32 — 32-ch Omnetics
F64 — 64-ch Omnetics
FH64 — 64-ch Omnetics
H32 (21 mm cable) — 32-ch Omnetics
HC32 (21 mm cable) — 32-ch Omnetics
HZ32 (21 mm cable) — 32-ch Hirose
MRCM16PB32 — 16-ch
MRCM32 — 32-ch
MRH32 — 32-ch Omnetics
MRHC32 — 32-ch Omnetics
MROCM32LP — 32-ch Omnetics
OA32LP — 32-ch Samtec
OA32LP_V2 — 32-ch Samtec
OCM32LP — 32-ch Omnetics
OH32LP — 32-ch Omnetics
OHZ32LP — 32-ch Hirose
OXA32LP — 32-ch Samtec
OXCM32LP — 32-ch Omnetics
OXH32LP_21MM — 32-ch
OZ32LP — 32-ch Hirose
X3_32 — 32-ch Molex
X3_H32 (21 mm cable) — 32-ch Molex
Z32 — 32-ch Hirose

Your selection

32-channel single-shank silicon probe, 6 mm — 15 μm, A32
A32
Substrate Thickness: 15 μm
Compatible Package: A32 — 32-ch Samtec
SKUprb_acl--a1x32_6mm_50_703.15um.a32
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

48 of 48
Linear Single-Shank 32-Channel Probe, 6 mmSKU prb_acl--a1x32_6mm_50_703

Loading the compatible products…

Linear Single-Shank 32-Channel Probe, 6 mmSKU prb_acl--a1x32_6mm_50_703

12 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
32
41024

Top 26% of catalog designs

Sites 32 — higher than 74% of catalog designs and 79% of its family
Shanks
1
116

Top 58% of catalog designs

Shanks 1 — higher than 42% of catalog designs and 40% of its family
Shank length
6 mm
1 mm60 mm

Top 39% of catalog designs

Shank length 6 mm — higher than 61% of catalog designs and 72% of its family
Maximum site depth
5.96 mm
0.972 mm51.29 mm

Top 41% of catalog designs

Maximum site depth 5.96 mm — higher than 59% of catalog designs and 70% of its family
Minimum site depth
4.39 mm
0.067 mm44.74 mm

Top 51% of catalog designs

Minimum site depth 4.39 mm — higher than 49% of catalog designs and 59% of its family
Span, x
0.03 mm
0.01 mm6.03 mm

Top 73% of catalog designs

Span, x 0.03 mm — higher than 27% of catalog designs and 36% of its family
Span, y
1.58 mm
0.01 mm10.55 mm

Top 23% of catalog designs

Span, y 1.58 mm — higher than 77% of catalog designs and 82% of its family
Site pitch, y
0.05 µm
0.01 µm1.5 µm

Top 44% of catalog designs

Site pitch, y 0.05 µm — higher than 56% of catalog designs and 42% of its family
Site outline area
0.047 mm²
0.002 mm²28.74 mm²

Top 68% of catalog designs

Site outline area 0.047 mm² — higher than 32% of catalog designs and 34% of its family
Neural interface volume
0.551 mm³
0.149 mm³17.19 mm³

Top 57% of catalog designs

Neural interface volume 0.551 mm³ — higher than 43% of catalog designs and 40% of its family
Site coverage density
682.6 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 28% of catalog designs

Site coverage density 682.6 sites/mm² — higher than 72% of catalog designs and 74% of its family
Brain coverage density
58.1 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 36% of catalog designs

Brain coverage density 58.1 sites/mm³ — higher than 64% of catalog designs and 73% of its family
Linear Single-Shank 32-Channel Probe, 6 mmSKU prb_acl--a1x32_6mm_50_703

4 notes · Spending a fixed site budget · Geometry · Construction …

Linear Single-Shank 32-Channel Probe, 6 mmSKU prb_acl--a1x32_6mm_50_703

22 links · A Brief History of Neural Electrode Technology · Care, Use and Handling · Choosing an Electrode for Your Experiment …

Linear Single-Shank 32-Channel Probe, 6 mmSKU prb_acl--a1x32_6mm_50_703

Cited in 2,342 publications (product line)
