Neural Probes · A-Series

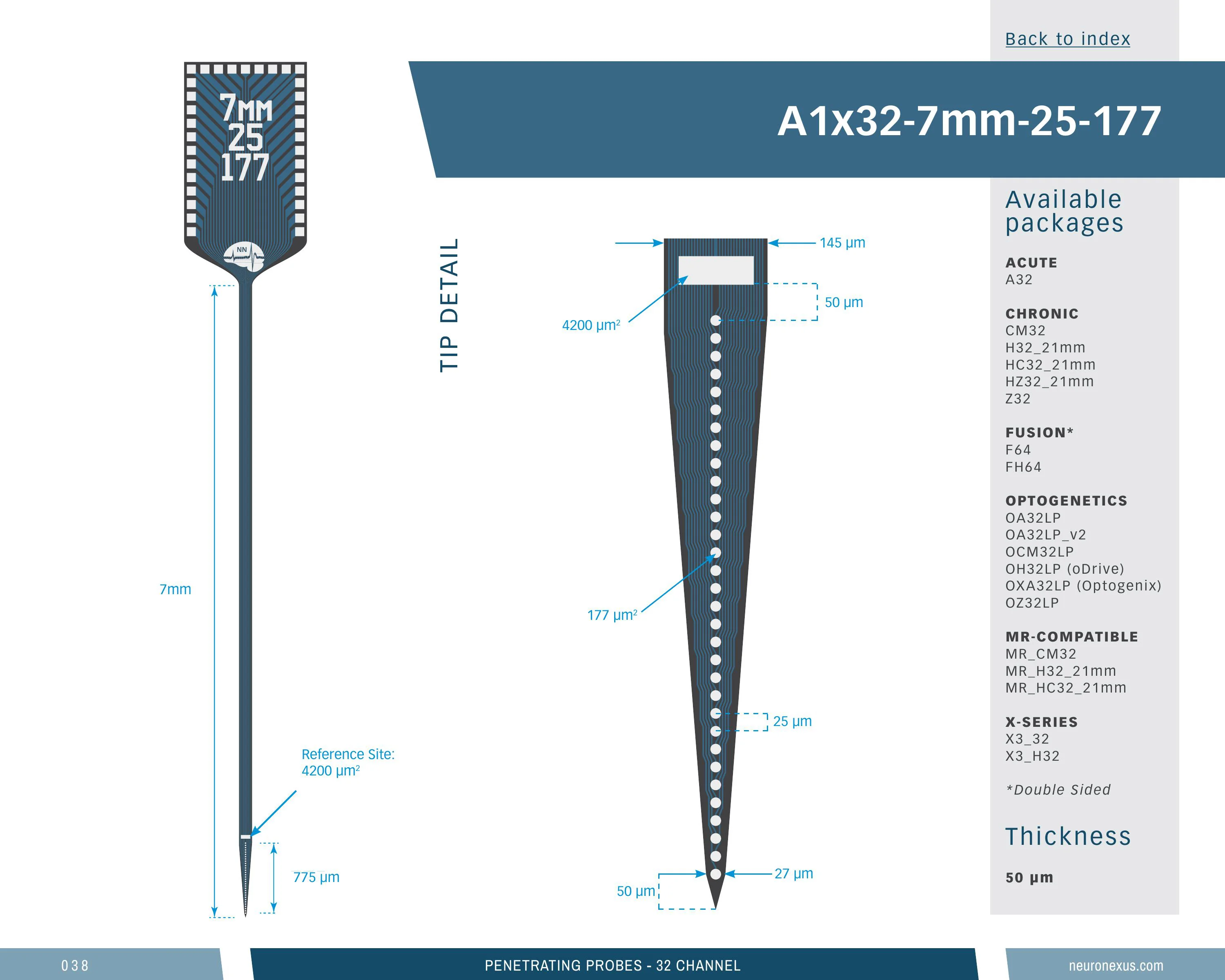

Linear Single-Shank 32-Channel Probe, 7 mm

32Sites
1Shanks
7mmShank Length
25µmSite Pitch
Part no.A1x32-7mm-25-177
Contents

32-site A-Series probe, 1 shank, 7 mm

A single long shank with sites spread evenly down the shank, one per row, for a profile across depth. Among the 369 probe designs in the design space it is mid-range: 32 sites (a common choice — 158 of 369), 7 mm shanks (64th percentile of the 366 measured), a 0.79 mm-deep site array (48th percentile), 3,047 sites/mm² (100th percentile) and a 0.33 mm³ neural interface (17th percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, packed densely enough to track a unit across neighbouring sites. The long shank reaches deep targets.

Orders as a probe-plus-package assembly, in 24 package configurations, 3 of them microdrive-compatible. Silicon 50 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

a1x32_7mm_25_177

Linear Single-Shank 32-Channel Probe, 7 mmSKU prb_acl--a1x32_7mm_25_177

12 specs

Channels32
Shanks1
Shank length7 mm
Site area177 µm²
Site pitch25 µm
Vertical span788 µm
SubstrateSilicon
Site materialIridium
Thickness50 µm
Neural interface volume0.331 mm³ (higher than 17% of 369 designs)
Site coverage density3,047.2 sites/mm² (the highest of 369 designs)
Brain coverage density96.8 sites/mm³ (higher than 86% of 369 designs)
Linear Single-Shank 32-Channel Probe, 7 mmSKU prb_acl--a1x32_7mm_25_177

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

24 options

Configure

Compatible Package
All
A32 — 32-ch Samtec
CM32 — 32-ch Omnetics
F64 — 64-ch Omnetics
FH64 — 64-ch Omnetics
H32 (21 mm cable) — 32-ch Omnetics
HC32 — 32-ch Omnetics
HZ32 — 32-ch Hirose
MRCM16PB32 — 16-ch
MRCM32 — 32-ch
MRH32 — 32-ch Omnetics
MRHC32 — 32-ch Omnetics
MROCM32LP — 32-ch Omnetics
OA32LP — 32-ch Samtec
OA32LP_V2 — 32-ch Samtec
OCM32LP — 32-ch Omnetics
OH32LP — 32-ch Omnetics
OHZ32LP — 32-ch Hirose
OXA32LP — 32-ch Samtec
OXCM32LP — 32-ch Omnetics
OXH32LP_21MM — 32-ch
OZ32LP — 32-ch Hirose
X3_32 — 32-ch Molex
X3_H32 (21 mm cable) — 32-ch Molex
Z32 — 32-ch Hirose

Your selection

32-channel single-shank silicon probe, 7 mm — 50 μm, A32
A32
Compatible Package: A32 — 32-ch Samtec
SKUprb_acl--a1x32_7mm_25_177.50um.a32
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

24 of 24
Linear Single-Shank 32-Channel Probe, 7 mmSKU prb_acl--a1x32_7mm_25_177

Loading the compatible products…

Linear Single-Shank 32-Channel Probe, 7 mmSKU prb_acl--a1x32_7mm_25_177

12 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
32
41024

Top 26% of catalog designs

Sites 32 — higher than 74% of catalog designs and 79% of its family
Shanks
1
116

Top 58% of catalog designs

Shanks 1 — higher than 42% of catalog designs and 40% of its family
Shank length
7 mm
1 mm60 mm

Top 36% of catalog designs

Shank length 7 mm — higher than 64% of catalog designs and 74% of its family
Maximum site depth
6.96 mm
0.972 mm51.29 mm

Top 37% of catalog designs

Maximum site depth 6.96 mm — higher than 63% of catalog designs and 72% of its family
Minimum site depth
6.17 mm
0.067 mm44.74 mm

Top 34% of catalog designs

Minimum site depth 6.17 mm — higher than 66% of catalog designs and 74% of its family
Span, x
0.013 mm
0.01 mm6.03 mm

Top 93% of catalog designs

Span, x 0.013 mm — higher than 7% of catalog designs and 5% of its family
Span, y
0.788 mm
0.01 mm10.55 mm

Top 52% of catalog designs

Span, y 0.788 mm — higher than 48% of catalog designs and 46% of its family
Site pitch, y
0.025 µm
0.01 µm1.5 µm

Top 68% of catalog designs

Site pitch, y 0.025 µm — higher than 32% of catalog designs and 9% of its family
Site outline area
0.011 mm²
0.002 mm²28.74 mm²

Top 93% of catalog designs

Site outline area 0.011 mm² — higher than 7% of catalog designs and 3% of its family
Neural interface volume
0.331 mm³
0.149 mm³17.19 mm³

Top 83% of catalog designs

Neural interface volume 0.331 mm³ — higher than 17% of catalog designs and 9% of its family
Site coverage density
3047.2 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Largest among catalog designs · largest in its family

Site coverage density 3047.2 sites/mm² — higher than 100% of catalog designs and 100% of its family (the largest in its family, 180 designs)
Brain coverage density
96.78 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 14% of catalog designs

Brain coverage density 96.78 sites/mm³ — higher than 86% of catalog designs and 93% of its family
