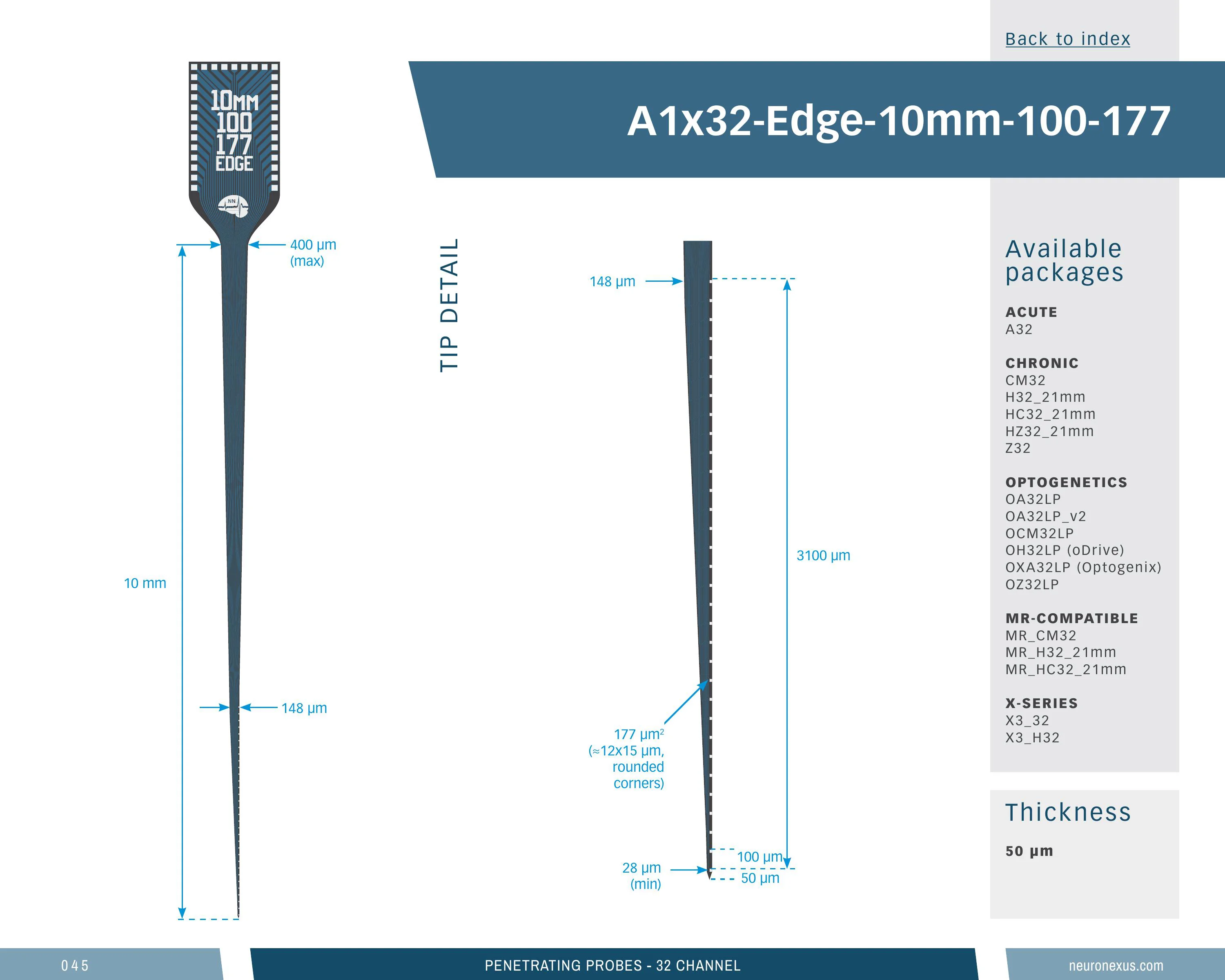

32-site A-Series probe, 1 shank, 10 mm, 177 µm², 100 µm pitch, edge
A single long shank with sites along the shank's edge, closest to the tissue the probe faces. Among the 369 probe designs in the design space it is in the upper quartile: 32 sites (a common choice — 158 of 369), 10 mm shanks (a common choice — 80 of 366), a 3.12 mm-deep site array (89th percentile), 856 sites/mm² (82nd percentile) and a 0.93 mm³ neural interface (66th percentile).
Small sites read a local patch at higher impedance, sharpening single-unit isolation, spaced for a laminar profile. The long shank reaches deep targets.
Orders as a probe-plus-package assembly, in 22 package configurations, 1 of them microdrive-compatible. Silicon 15 or 50 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.
a1x32_edge_10mm_100_177
13 specs
| Channels | 32 |
|---|---|
| Shanks | 1 |
| Shank length | 10 mm |
| Site layout | Edge |
| Site area | 177 µm² |
| Site pitch | 100 µm |
| Vertical span | 3115 µm |
| Substrate | Silicon |
|---|---|
| Site material | Iridium |
| Thickness | 15, 50 µm |
| Neural interface volume | 0.925 mm³ (higher than 66% of 369 designs) |
| Site coverage density | 856.1 sites/mm² (higher than 82% of 369 designs) |
| Brain coverage density | 34.6 sites/mm³ (higher than 38% of 369 designs) |
Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.
44 options
Configure
Your selection
32-channel single-shank silicon probe, 10 mm — 15 μm, A32
A32Options
44 of 4415 μm · A32 — 32-ch Samtec
15 μm · CM32 — 32-ch Omnetics
15 μm · H32 (21 mm cable) — 32-ch Omnetics
15 μm · HC32 (21 mm cable) — 32-ch Omnetics
15 μm · HZ32 (21 mm cable) — 32-ch Hirose
15 μm · MRCM32 — 32-ch
15 μm · MRH32 (21 mm cable) — 32-ch Omnetics
15 μm · OA32LP — 32-ch Samtec
15 μm · OCM32LP — 32-ch Omnetics
15 μm · OH32LP (21 mm cable) — 32-ch Omnetics
15 μm · OHZ32LP — 32-ch Hirose
15 μm · OXA32LP — 32-ch Samtec
15 μm · OZ32LP — 32-ch Hirose
15 μm · X3_32 — 32-ch Molex
15 μm · X3_H32 (21 mm cable) — 32-ch Molex
15 μm · Z32 — 32-ch Hirose
50 μm · A32 — 32-ch Samtec
50 μm · CM32 — 32-ch Omnetics
50 μm · H32 (21 mm cable) — 32-ch Omnetics
50 μm · HC32 (21 mm cable) — 32-ch Omnetics
50 μm · HZ32 (21 mm cable) — 32-ch Hirose
50 μm · MRCM32 — 32-ch
50 μm · MRH32 (21 mm cable) — 32-ch Omnetics
50 μm · OA32LP — 32-ch Samtec
50 μm · OCM32LP — 32-ch Omnetics
50 μm · OH32LP (21 mm cable) — 32-ch Omnetics
50 μm · OHZ32LP — 32-ch Hirose
50 μm · OXA32LP — 32-ch Samtec
50 μm · OZ32LP — 32-ch Hirose
50 μm · X3_32 — 32-ch Molex
50 μm · X3_H32 (21 mm cable) — 32-ch Molex
50 μm · Z32 — 32-ch Hirose
15 μm · MRHC32 — 32-ch Omnetics
50 μm · MRHC32 — 32-ch Omnetics
15 μm · OA32LP_V2 — 32-ch Samtec
50 μm · OA32LP_V2 — 32-ch Samtec
15 μm · MROCM32LP — 32-ch Omnetics
50 μm · MROCM32LP — 32-ch Omnetics
15 μm · OXCM32LP — 32-ch Omnetics
50 μm · OXCM32LP — 32-ch Omnetics
15 μm · MRCM16PB32 — 16-ch
50 μm · MRCM16PB32 — 16-ch
15 μm · OXH32LP_21MM — 32-ch
50 μm · OXH32LP_21MM — 32-ch
Loading the compatible products…
12 metrics
Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.
Top 26% of catalog designs
Sites 32 — higher than 74% of catalog designs and 79% of its familyTop 58% of catalog designs
Shanks 1 — higher than 42% of catalog designs and 40% of its familyTop 10% of catalog designs
Shank length 10 mm — higher than 90% of catalog designs and 94% of its familyTop 22% of catalog designs
Maximum site depth 9.96 mm — higher than 78% of catalog designs and 83% of its familyTop 29% of catalog designs
Minimum site depth 6.84 mm — higher than 71% of catalog designs and 78% of its familyTop 94% of catalog designs
Span, x 0.012 mm — higher than 6% of catalog designs and 4% of its familyTop 11% of catalog designs
Span, y 3.12 mm — higher than 89% of catalog designs and 92% of its familyTop 17% of catalog designs
Site pitch, y 0.1 µm — higher than 83% of catalog designs and 80% of its familyTop 75% of catalog designs
Site outline area 0.037 mm² — higher than 25% of catalog designs and 29% of its familyTop 34% of catalog designs
Neural interface volume 0.925 mm³ — higher than 66% of catalog designs and 64% of its familyTop 18% of catalog designs
Site coverage density 856.1 sites/mm² — higher than 82% of catalog designs and 82% of its familyTop 62% of catalog designs
Brain coverage density 34.58 sites/mm³ — higher than 38% of catalog designs and 43% of its family4 notes · Spending a fixed site budget · Geometry · Construction …
22 links · A Brief History of Neural Electrode Technology · Care, Use and Handling · Choosing an Electrode for Your Experiment …
Cited in 2,342 publications (product line)
