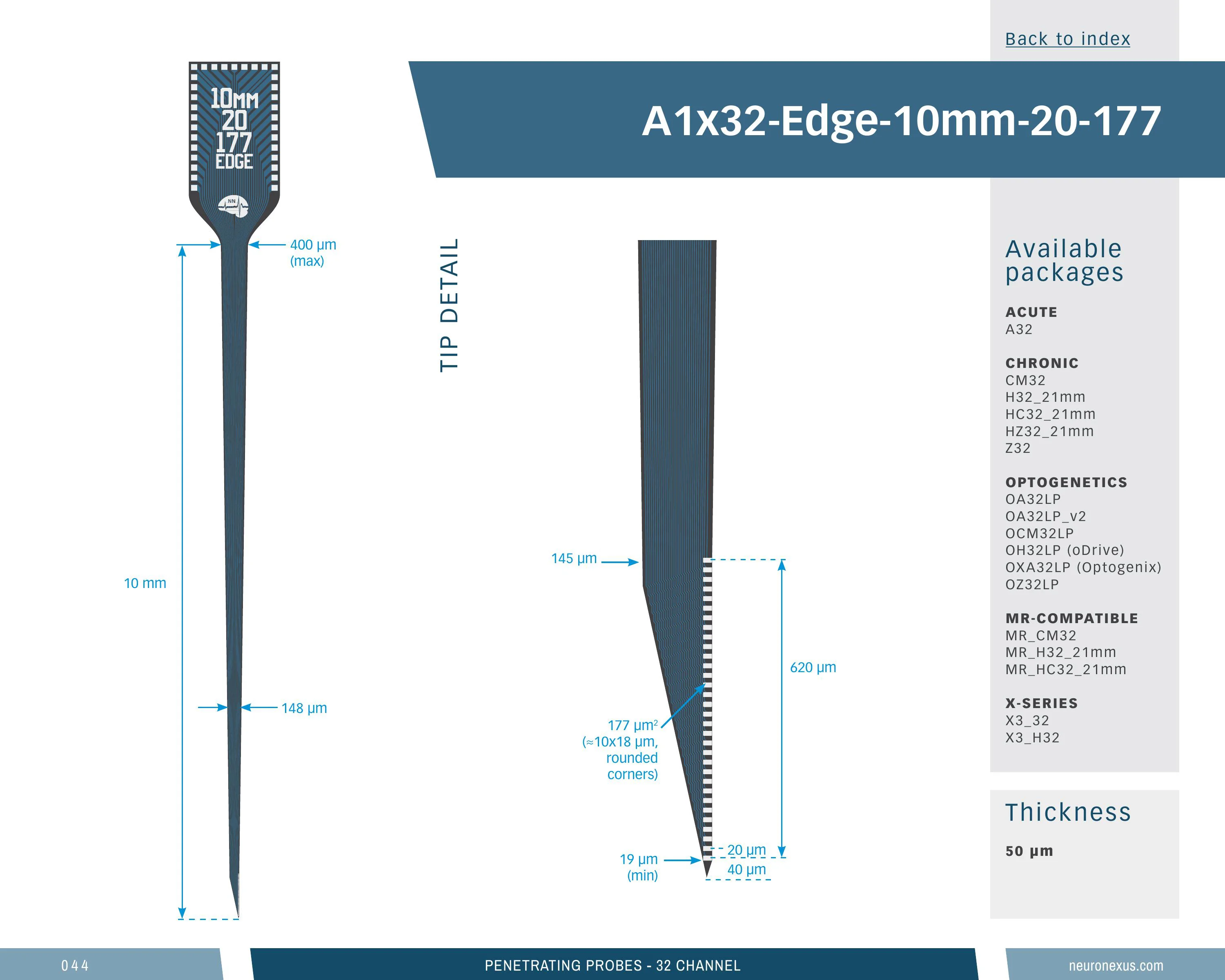

32-site A-Series probe, 1 shank, 10 mm, 177 µm², 20 µm pitch
A single long shank with sites along the shank's edge, closest to the tissue the probe faces. Among the 369 probe designs in the design space it is mid-range: 32 sites (a common choice — 158 of 369), 10 mm shanks (a common choice — 80 of 366), a 0.63 mm-deep site array (35th percentile), 2,822 sites/mm² (100th percentile) and a 0.29 mm³ neural interface (11th percentile).
Small sites read a local patch at higher impedance, sharpening single-unit isolation, packed densely enough to track a unit across neighbouring sites. The long shank reaches deep targets.
Orders as a probe-plus-package assembly, in 23 package configurations, 1 of them microdrive-compatible. Silicon 50 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.
a1x32_edge_10mm_20_177
13 specs
| Channels | 32 |
|---|---|
| Shanks | 1 |
| Shank length | 10 mm |
| Site layout | Edge |
| Site area | 177 µm² |
| Site pitch | 20 µm |
| Vertical span | 630 µm |
| Substrate | Silicon |
|---|---|
| Site material | Iridium |
| Thickness | 50 µm |
| Neural interface volume | 0.293 mm³ (higher than 11% of 369 designs) |
| Site coverage density | 2,821.9 sites/mm² (higher than 99% of 369 designs) |
| Brain coverage density | 109.3 sites/mm³ (higher than 89% of 369 designs) |
Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.
23 options
Configure
Your selection
32-channel single-shank silicon probe, 10 mm — 50 μm, A32
A32Options
23 of 23A32 — 32-ch Samtec
CM32 — 32-ch Omnetics
H32 (21 mm cable) — 32-ch Omnetics
H32 (50 mm cable) — 32-ch Omnetics
HC32 (21 mm cable) — 32-ch Omnetics
HZ32 (21 mm cable) — 32-ch Hirose
MRCM32 — 32-ch
OA32LP — 32-ch Samtec
OCM32LP — 32-ch Omnetics
OH32LP (21 mm cable) — 32-ch Omnetics
OHZ32LP — 32-ch Hirose
OZ32LP — 32-ch Hirose
X3_32 — 32-ch Molex
X3_H32 (21 mm cable) — 32-ch Molex
Z32 — 32-ch Hirose
MRH32 — 32-ch Omnetics
MRHC32 — 32-ch Omnetics
OA32LP_V2 — 32-ch Samtec
OXA32LP — 32-ch Samtec
MROCM32LP — 32-ch Omnetics
OXCM32LP — 32-ch Omnetics
MRCM16PB32 — 16-ch
OXH32LP_21MM — 32-ch
Loading the compatible products…
12 metrics
Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.
Top 26% of catalog designs
Sites 32 — higher than 74% of catalog designs and 79% of its familyTop 58% of catalog designs
Shanks 1 — higher than 42% of catalog designs and 40% of its familyTop 10% of catalog designs
Shank length 10 mm — higher than 90% of catalog designs and 94% of its familyTop 16% of catalog designs
Maximum site depth 9.96 mm — higher than 84% of catalog designs and 93% of its familyTop 14% of catalog designs
Minimum site depth 9.34 mm — higher than 86% of catalog designs and 93% of its familyTop 82% of catalog designs
Span, x 0.018 mm — higher than 18% of catalog designs and 19% of its familyTop 65% of catalog designs
Span, y 0.63 mm — higher than 35% of catalog designs and 27% of its familyTop 78% of catalog designs
Site pitch, y 0.02 µm — higher than 22% of catalog designs and 4% of its familyTop 92% of catalog designs
Site outline area 0.011 mm² — higher than 8% of catalog designs and 4% of its familyTop 89% of catalog designs
Neural interface volume 0.293 mm³ — higher than 11% of catalog designs and 3% of its familyLargest among catalog designs
Site coverage density 2821.9 sites/mm² — higher than 100% of catalog designs and 99% of its familyTop 11% of catalog designs
Brain coverage density 109.3 sites/mm³ — higher than 89% of catalog designs and 94% of its family4 notes · Spending a fixed site budget · Geometry · Construction …
22 links · A Brief History of Neural Electrode Technology · Care, Use and Handling · Choosing an Electrode for Your Experiment …
Cited in 2,342 publications (product line)
