Neural Probes · A-Series

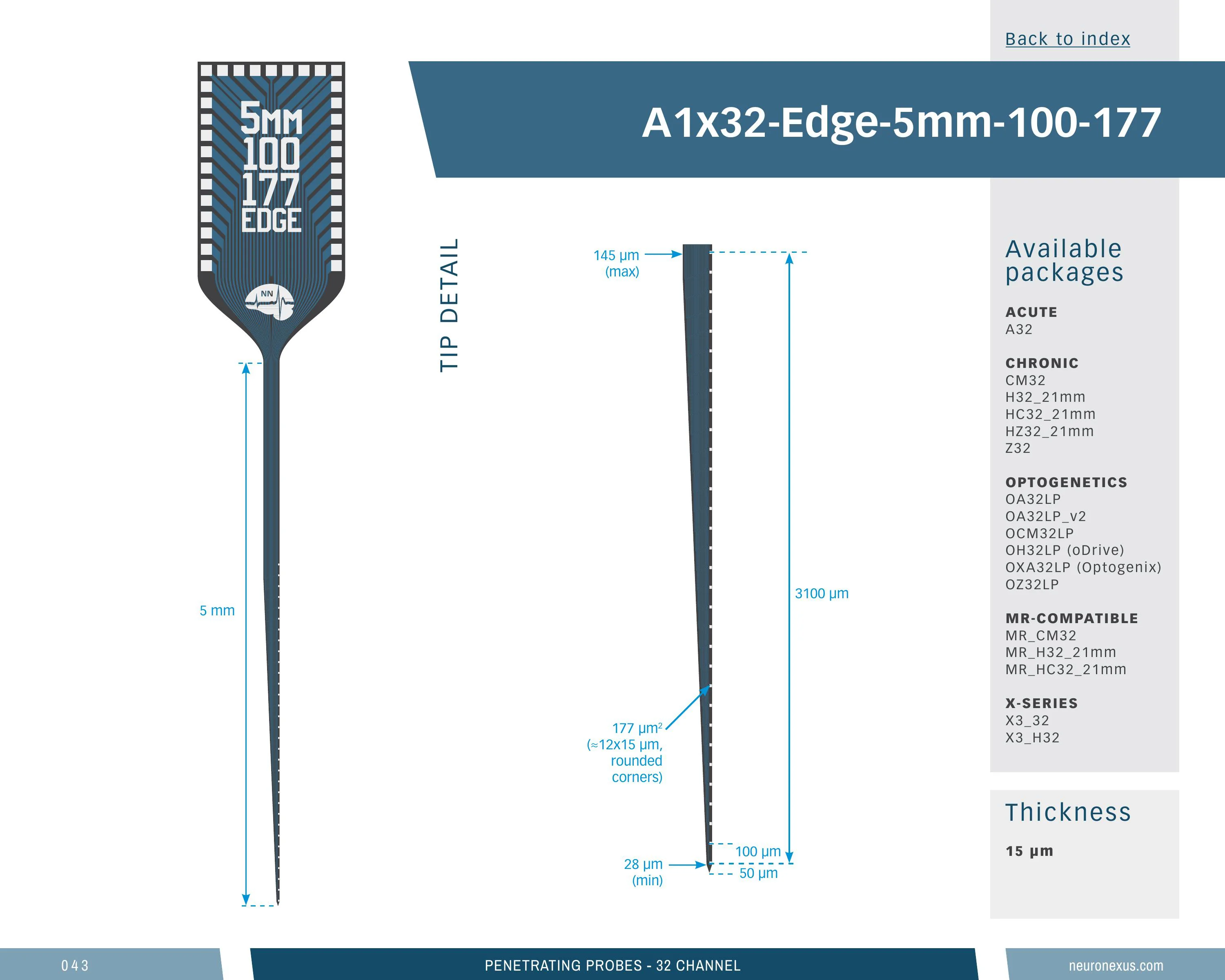

Edge Single-Shank 32-Channel Probe, 5 mm

32Sites
1Shanks
5mmShank Length
100µmSite Pitch
Part no.A1x32-Edge-5mm-100-177
Contents

32-site A-Series probe, 1 shank, 5 mm, 100 µm pitch

A single mid-length shank with sites along the shank's edge, closest to the tissue the probe faces. Among the 369 probe designs in the design space it is in the upper quartile: 32 sites (a common choice — 158 of 369), 5 mm shanks (a common choice — 108 of 366), a 3.12 mm-deep site array (89th percentile), 856 sites/mm² (82nd percentile) and a 0.93 mm³ neural interface (66th percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, spaced for a laminar profile. The mid-length shank reaches structures a few millimetres down.

Orders as a probe-plus-package assembly, in 22 package configurations, 1 of them microdrive-compatible. Silicon 15 or 50 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

a1x32_edge_5mm_100_177

Edge Single-Shank 32-Channel Probe, 5 mmSKU prb_acl--a1x32_edge_5mm_100_177

13 specs

Channels32
Shanks1
Shank length5 mm
Site layoutEdge
Site area177 µm²
Site pitch100 µm
Vertical span3115 µm
SubstrateSilicon
Site materialIridium
Thickness15, 50 µm
Neural interface volume0.925 mm³ (higher than 66% of 369 designs)
Site coverage density856.1 sites/mm² (higher than 82% of 369 designs)
Brain coverage density34.6 sites/mm³ (higher than 38% of 369 designs)
Edge Single-Shank 32-Channel Probe, 5 mmSKU prb_acl--a1x32_edge_5mm_100_177

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

44 options

Configure

Substrate Thickness
All
15 μm
50 μm
Compatible Package
All
A32 — 32-ch Samtec
CM32 — 32-ch Omnetics
H32 (21 mm cable) — 32-ch Omnetics
HC32 (21 mm cable) — 32-ch Omnetics
HZ32 (21 mm cable) — 32-ch Hirose
MRCM16PB32 — 16-ch
MRCM32 — 32-ch
MRH32 — 32-ch Omnetics
MRHC32 — 32-ch Omnetics
MROCM32LP — 32-ch Omnetics
OA32LP — 32-ch Samtec
OA32LP_V2 — 32-ch Samtec
OCM32LP — 32-ch Omnetics
OH32LP (21 mm cable) — 32-ch Omnetics
OHZ32LP — 32-ch Hirose
OXA32LP — 32-ch Samtec
OXCM32LP — 32-ch Omnetics
OXH32LP_21MM — 32-ch
OZ32LP — 32-ch Hirose
X3_32 — 32-ch Molex
X3_H32 (21 mm cable) — 32-ch Molex
Z32 — 32-ch Hirose

Your selection

32-channel single-shank silicon probe, 5 mm — 15 μm, A32
A32
Substrate Thickness: 15 μm
Compatible Package: A32 — 32-ch Samtec
SKUprb_acl--a1x32_edge_5mm_100_177.15um.a32
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

44 of 44
Edge Single-Shank 32-Channel Probe, 5 mmSKU prb_acl--a1x32_edge_5mm_100_177

Loading the compatible products…

Edge Single-Shank 32-Channel Probe, 5 mmSKU prb_acl--a1x32_edge_5mm_100_177

12 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
32
41024

Top 26% of catalog designs

Sites 32 — higher than 74% of catalog designs and 79% of its family
Shanks
1
116

Top 58% of catalog designs

Shanks 1 — higher than 42% of catalog designs and 40% of its family
Shank length
5 mm
1 mm60 mm

Top 48% of catalog designs

Shank length 5 mm — higher than 52% of catalog designs and 61% of its family
Maximum site depth
4.96 mm
0.972 mm51.29 mm

Top 62% of catalog designs

Maximum site depth 4.96 mm — higher than 38% of catalog designs and 45% of its family
Minimum site depth
1.84 mm
0.067 mm44.74 mm

Top 88% of catalog designs

Minimum site depth 1.84 mm — higher than 12% of catalog designs and 11% of its family
Span, x
0.012 mm
0.01 mm6.03 mm

Top 94% of catalog designs

Span, x 0.012 mm — higher than 6% of catalog designs and 4% of its family
Span, y
3.12 mm
0.01 mm10.55 mm

Top 11% of catalog designs

Span, y 3.12 mm — higher than 89% of catalog designs and 92% of its family
Site pitch, y
0.1 µm
0.01 µm1.5 µm

Top 17% of catalog designs

Site pitch, y 0.1 µm — higher than 83% of catalog designs and 80% of its family
Site outline area
0.037 mm²
0.002 mm²28.74 mm²

Top 75% of catalog designs

Site outline area 0.037 mm² — higher than 25% of catalog designs and 29% of its family
Neural interface volume
0.925 mm³
0.149 mm³17.19 mm³

Top 34% of catalog designs

Neural interface volume 0.925 mm³ — higher than 66% of catalog designs and 64% of its family
Site coverage density
856.1 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 18% of catalog designs

Site coverage density 856.1 sites/mm² — higher than 82% of catalog designs and 82% of its family
Brain coverage density
34.58 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 62% of catalog designs

Brain coverage density 34.58 sites/mm³ — higher than 38% of catalog designs and 43% of its family
