Neural Probes · A-Series

Edge Single-Shank 32-Channel Probe, 5 mm

32Sites
1Shanks
5mmShank Length
20µmSite Pitch
Part no.A1x32-Edge-5mm-20-177
Contents

32-site A-Series probe, 1 shank, 5 mm, 20 µm pitch

A single mid-length shank with sites along the shank's edge, closest to the tissue the probe faces. Among the 369 probe designs in the design space it is mid-range: 32 sites (a common choice — 158 of 369), 5 mm shanks (a common choice — 108 of 366), a 0.63 mm-deep site array (35th percentile), 2,822 sites/mm² (100th percentile) and a 0.29 mm³ neural interface (11th percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, packed densely enough to track a unit across neighbouring sites. The mid-length shank reaches structures a few millimetres down.

Orders as a probe-plus-package assembly, in 23 package configurations, 1 of them microdrive-compatible. Silicon 15 or 50 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

a1x32_edge_5mm_20_177

Edge Single-Shank 32-Channel Probe, 5 mmSKU prb_acl--a1x32_edge_5mm_20_177

13 specs

Channels32
Shanks1
Shank length5 mm

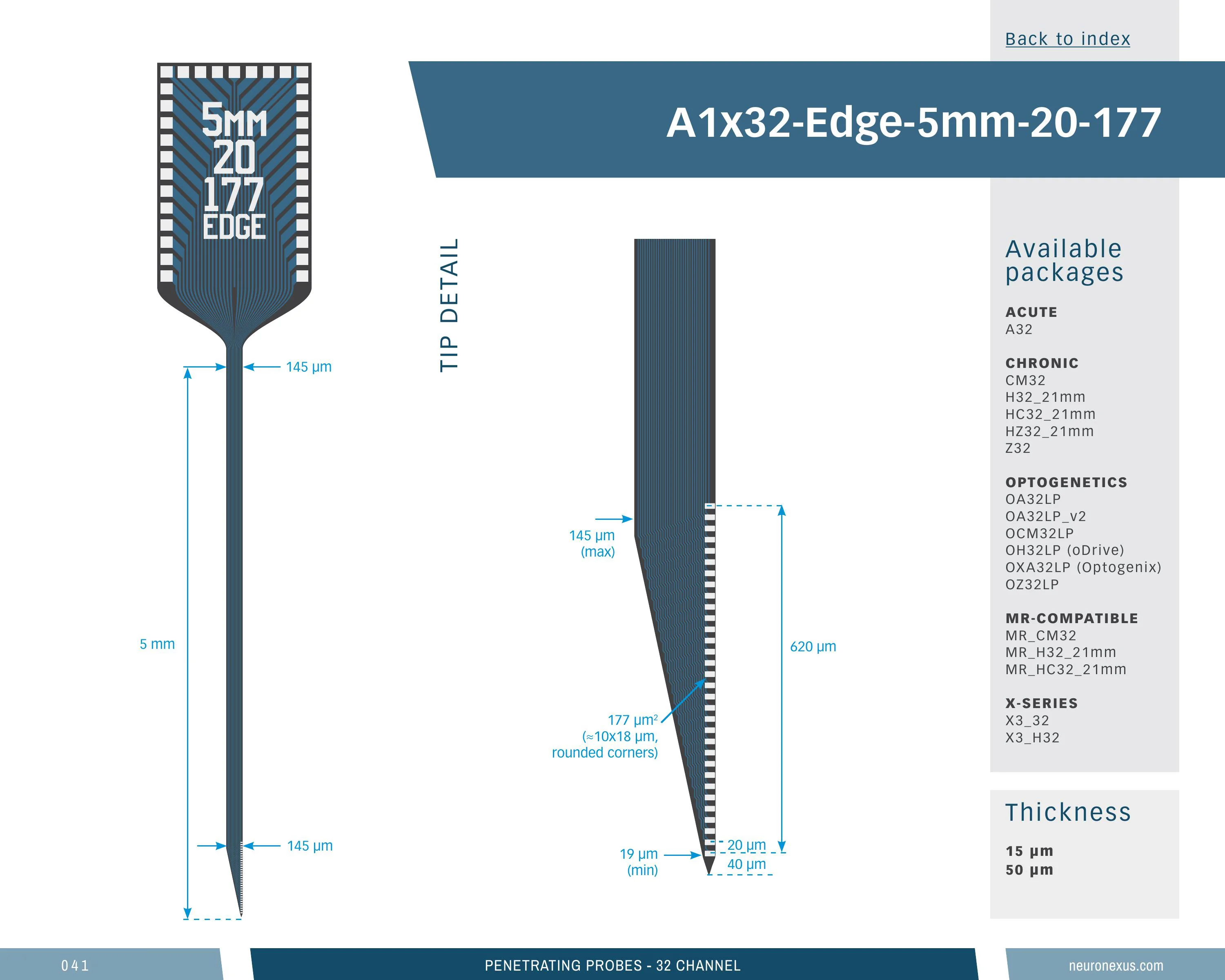

Site layoutEdge
Site area177 µm²
Site pitch20 µm
Vertical span630 µm
SubstrateSilicon
Site materialIridium
Thickness15, 50 µm
Neural interface volume0.293 mm³ (higher than 11% of 369 designs)
Site coverage density2,821.9 sites/mm² (higher than 99% of 369 designs)
Brain coverage density109.3 sites/mm³ (higher than 89% of 369 designs)
Edge Single-Shank 32-Channel Probe, 5 mmSKU prb_acl--a1x32_edge_5mm_20_177
