Neural Probes · A-Series

Edge Single-Shank 32-Channel Probe, 5 mm

32Sites
1Shanks
5mmShank Length
50µmSite Pitch
Part no.A1x32-Edge-5mm-50-177
Contents

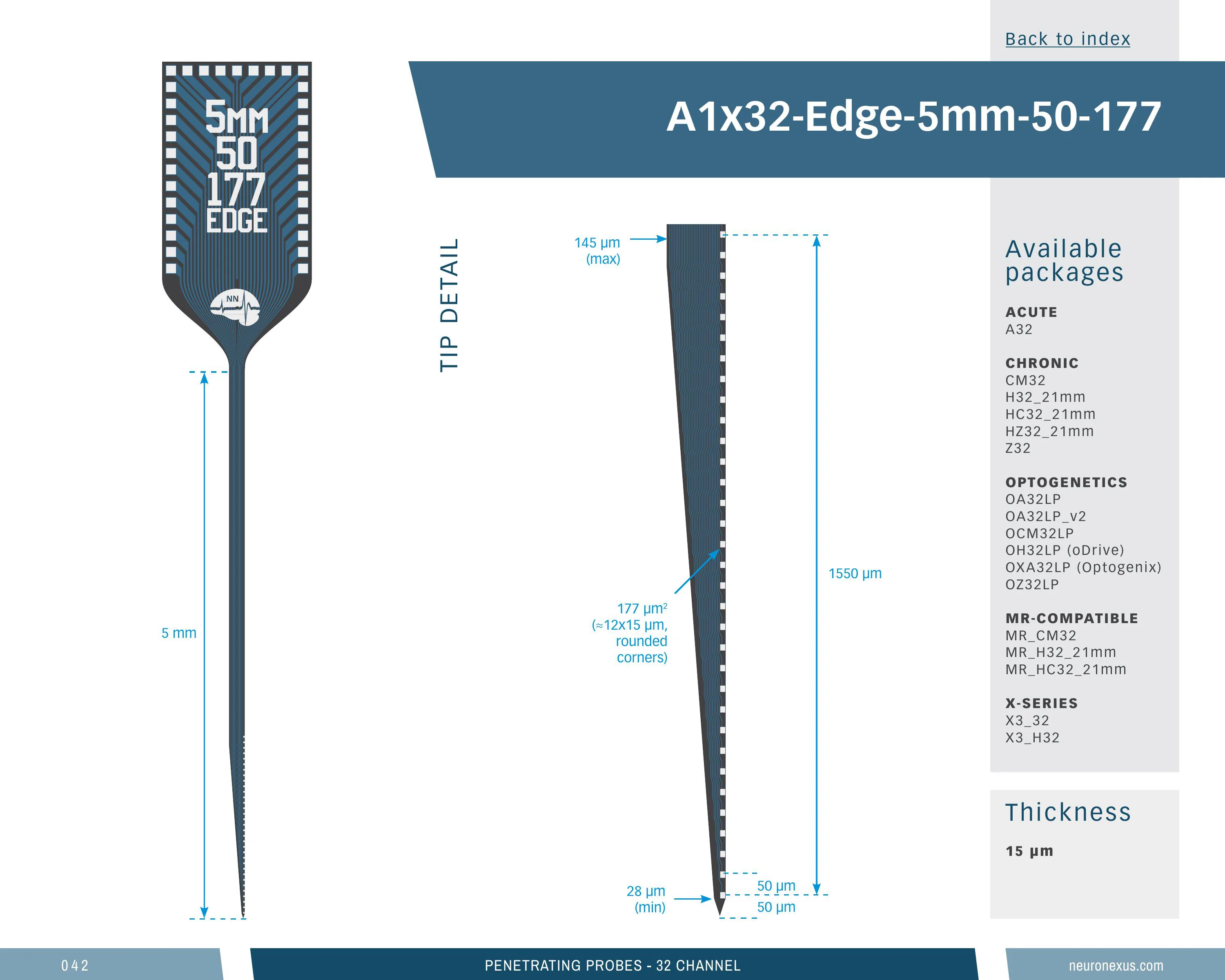

32-site A-Series probe, 1 shank, 5 mm, 50 µm pitch, edge

A single mid-length shank with sites along the shank's edge, closest to the tissue the probe faces. Among the 369 probe designs in the design space it is in the upper quartile: 32 sites (a common choice — 158 of 369), 5 mm shanks (a common choice — 108 of 366), a 1.56 mm-deep site array (76th percentile), 1,704 sites/mm² (94th percentile) and a 0.53 mm³ neural interface (37th percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, spaced for a laminar profile. The mid-length shank reaches structures a few millimetres down.

Orders as a probe-plus-package assembly, in 22 package configurations, 3 of them microdrive-compatible. Silicon 15 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

a1x32_edge_5mm_50_177

Edge Single-Shank 32-Channel Probe, 5 mmSKU prb_acl--a1x32_edge_5mm_50_177

13 specs

Channels32
Shanks1
Shank length5 mm
Site layoutEdge
Site area177 µm²
Site pitch50 µm
Vertical span1565 µm
SubstrateSilicon
Site materialIridium
Thickness15 µm
Neural interface volume0.529 mm³ (higher than 37% of 369 designs)
Site coverage density1,703.9 sites/mm² (higher than 94% of 369 designs)
Brain coverage density60.5 sites/mm³ (higher than 67% of 369 designs)
Edge Single-Shank 32-Channel Probe, 5 mmSKU prb_acl--a1x32_edge_5mm_50_177

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

22 options

Configure

Compatible Package
All
A32 — 32-ch Samtec
CM32 — 32-ch Omnetics
H32 (21 mm cable) — 32-ch Omnetics
HC32 — 32-ch Omnetics
HZ32 — 32-ch Hirose
MRCM16PB32 — 16-ch
MRCM32 — 32-ch
MRH32 — 32-ch Omnetics
MRHC32 — 32-ch Omnetics
MROCM32LP — 32-ch Omnetics
OA32LP — 32-ch Samtec
OA32LP_V2 — 32-ch Samtec
OCM32LP — 32-ch Omnetics
OH32LP — 32-ch Omnetics
OHZ32LP — 32-ch Hirose
OXA32LP — 32-ch Samtec
OXCM32LP — 32-ch Omnetics
OXH32LP_21MM — 32-ch
OZ32LP — 32-ch Hirose
X3_32 — 32-ch Molex
X3_H32 (21 mm cable) — 32-ch Molex
Z32 — 32-ch Hirose

Your selection

32-channel single-shank silicon probe, 5 mm — 15 μm, A32
A32
Compatible Package: A32 — 32-ch Samtec
SKUprb_acl--a1x32_edge_5mm_50_177.15um.a32
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

22 of 22
Edge Single-Shank 32-Channel Probe, 5 mmSKU prb_acl--a1x32_edge_5mm_50_177

Loading the compatible products…

Edge Single-Shank 32-Channel Probe, 5 mmSKU prb_acl--a1x32_edge_5mm_50_177

12 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
32
41024

Top 26% of catalog designs

Sites 32 — higher than 74% of catalog designs and 79% of its family
Shanks
1
116

Top 58% of catalog designs

Shanks 1 — higher than 42% of catalog designs and 40% of its family
Shank length
5 mm
1 mm60 mm

Top 48% of catalog designs

Shank length 5 mm — higher than 52% of catalog designs and 61% of its family
Maximum site depth
4.96 mm
0.972 mm51.29 mm

Top 62% of catalog designs

Maximum site depth 4.96 mm — higher than 38% of catalog designs and 45% of its family
Minimum site depth
3.39 mm
0.067 mm44.74 mm

Top 70% of catalog designs

Minimum site depth 3.39 mm — higher than 30% of catalog designs and 36% of its family
Span, x
0.012 mm
0.01 mm6.03 mm

Top 94% of catalog designs

Span, x 0.012 mm — higher than 6% of catalog designs and 4% of its family
Span, y
1.56 mm
0.01 mm10.55 mm

Top 24% of catalog designs

Span, y 1.56 mm — higher than 76% of catalog designs and 79% of its family
Site pitch, y
0.05 µm
0.01 µm1.5 µm

Top 44% of catalog designs

Site pitch, y 0.05 µm — higher than 56% of catalog designs and 42% of its family
Site outline area
0.019 mm²
0.002 mm²28.74 mm²

Top 87% of catalog designs

Site outline area 0.019 mm² — higher than 13% of catalog designs and 11% of its family
Neural interface volume
0.529 mm³
0.149 mm³17.19 mm³

Top 63% of catalog designs

Neural interface volume 0.529 mm³ — higher than 37% of catalog designs and 29% of its family
Site coverage density
1703.9 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 6% of catalog designs

Site coverage density 1703.9 sites/mm² — higher than 94% of catalog designs and 92% of its family
Brain coverage density
60.53 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 33% of catalog designs

Brain coverage density 60.53 sites/mm³ — higher than 67% of catalog designs and 78% of its family
