Linear Single-Shank 32-Channel Probe, 5.01 mm

32Sites
1Shanks
5.01mmShank Length
12.5µmSite Pitch
Part no.A1x32-tri-5mm91-121
Contact us to order
Contents

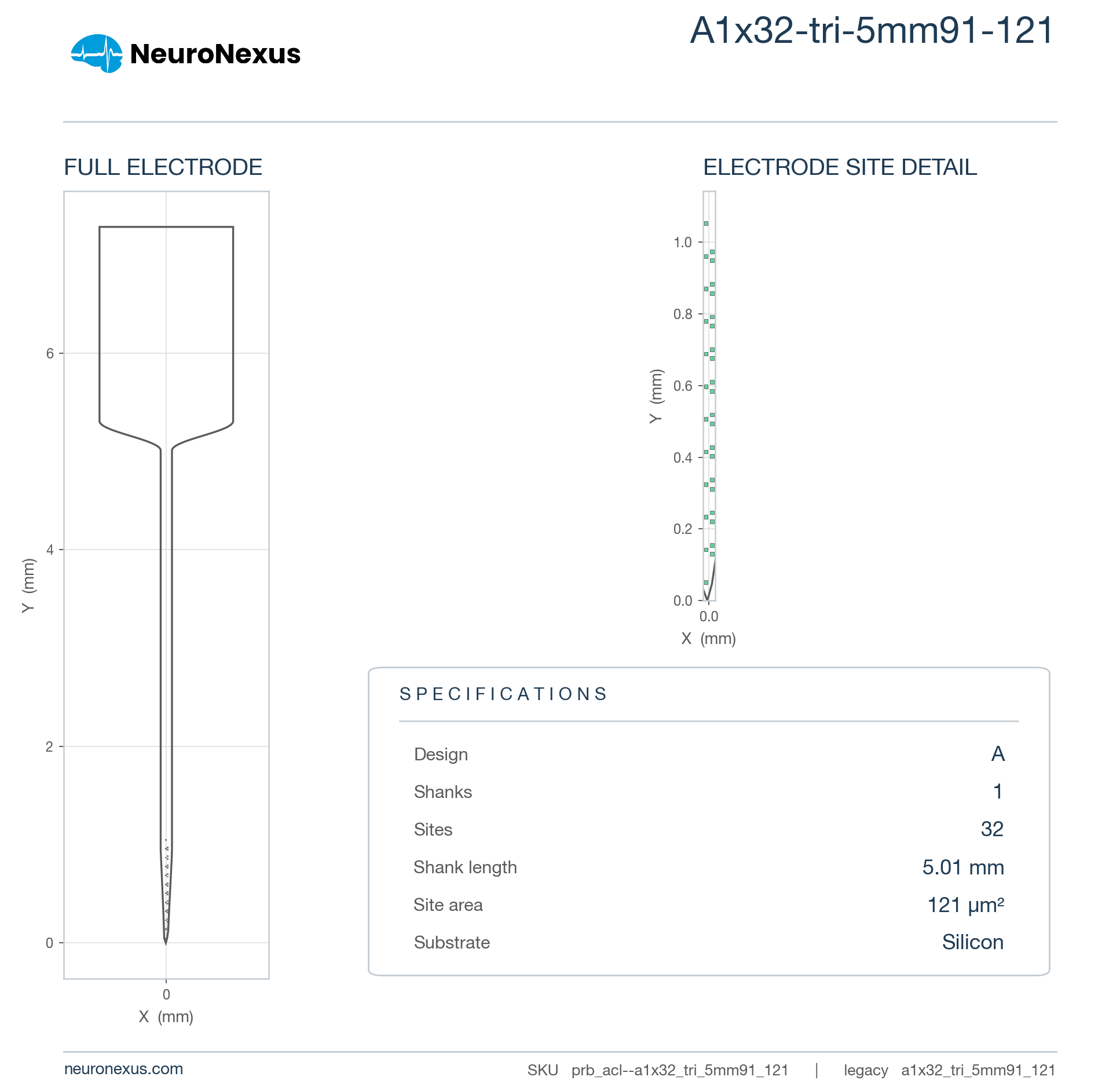

32-site A-Series probe, 1 shank, 5 mm, 121 µm²

A single mid-length shank with sites spread evenly down the shank, one per row, for a profile across depth. Among the 369 probe designs in the design space it is mid-range: 32 sites (a common choice — 158 of 369), 5 mm shanks (52nd percentile of the 366 measured), a 1.01 mm-deep site array (53rd percentile), 1,103 sites/mm² (87th percentile) and a 0.4 mm³ neural interface (25th percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, packed densely enough to track a unit across neighbouring sites. The mid-length shank reaches structures a few millimetres down.

Orders as a probe-plus-package assembly, in 4 package configurations. Silicon 15 µm thick. Z-coat available. Research use only.

Also known as

a1x32_tri_5mm91_121

Linear Single-Shank 32-Channel Probe, 5.01 mmSKU prb_acl--a1x32_tri_5mm91_121

12 specs

Channels32
Shanks1
Shank length5.01 mm
Site area121 µm²
Site pitch12.5 µm
Vertical span1012 µm
SubstrateSilicon
Site materialIridium
Thickness15 µm
Neural interface volume0.400 mm³ (higher than 25% of 369 designs)
Site coverage density1,102.5 sites/mm² (higher than 87% of 369 designs)
Brain coverage density80.1 sites/mm³ (higher than 79% of 369 designs)
