Edge Single-Shank 64-Channel Probe, 6 mm

64Sites
1Shanks
6mmShank Length
20µmSite Pitch
Part no.A1x64-Edge-6mm-20-177
Contents

64-site A-Series probe, 1 shank

A single mid-length shank with sites along the shank's edge, closest to the tissue the probe faces. Among the 369 probe designs in the design space it is mid-range: 64 sites (a common choice — 65 of 369), 6 mm shanks (61st percentile of the 366 measured), a 1.27 mm-deep site array (60th percentile), 2,800 sites/mm² (99th percentile) and a 0.46 mm³ neural interface (28th percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, packed densely enough to track a unit across neighbouring sites. The mid-length shank reaches structures a few millimetres down.

Orders as a probe-plus-package assembly, in 20 package configurations, 3 of them microdrive-compatible. Silicon 15 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

a1x64_edge_6mm_20_177

Edge Single-Shank 64-Channel Probe, 6 mmSKU prb_acl--a1x64_edge_6mm_20_177

13 specs

Channels64
Shanks1
Shank length6 mm
Site layoutEdge

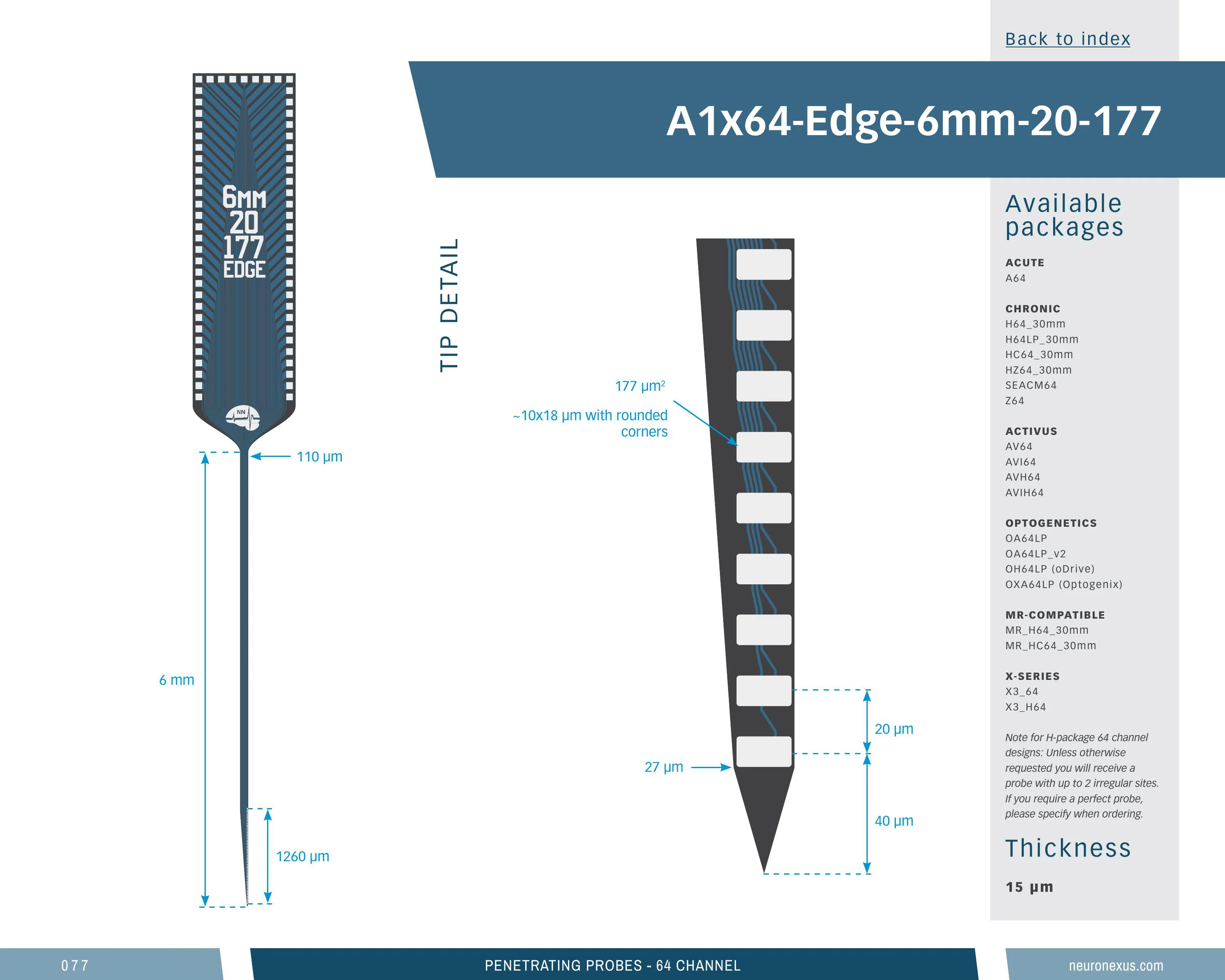

Site area177 µm²
Site pitch20 µm
Vertical span1270 µm
SubstrateSilicon
Site materialIridium
Thickness15 µm
Neural interface volume0.458 mm³ (higher than 28% of 369 designs)
Site coverage density2,799.7 sites/mm² (higher than 99% of 369 designs)
Brain coverage density139.6 sites/mm³ (higher than 94% of 369 designs)
Edge Single-Shank 64-Channel Probe, 6 mmSKU prb_acl--a1x64_edge_6mm_20_177

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

20 options

Configure

Compatible Package
All
A64 — 64-ch Samtec
AV64 — 64-ch
AVH64 — 64-ch
AVI64 — 64-ch Omnetics
AVIH64 — 64-ch Omnetics
EIB64 — 64-ch Molex
H64 — 64-ch Omnetics
H64LP (30 mm cable) — 64-ch Omnetics
HC64 — 64-ch Omnetics
HZ64 — 64-ch Hirose
MRH64LP_30MM — 64-ch
MRHC64 — 64-ch Omnetics
OA64LP — 64-ch Samtec
OA64LP_V2 — 64-ch Samtec
OH64LP — 64-ch Omnetics
OXA64LP — 64-ch Samtec
SEACM64 — 64-ch Samtec
X3_64 — 64-ch Molex
X3_H64 (30 mm cable) — 64-ch Molex
Z64 — 64-ch Hirose

Your selection

64-channel single-shank silicon probe, 6 mm — 15 μm, A64
A64
Compatible Package: A64 — 64-ch Samtec
SKUprb_acl--a1x64_edge_6mm_20_177.15um.a64
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

20 of 20
Edge Single-Shank 64-Channel Probe, 6 mmSKU prb_acl--a1x64_edge_6mm_20_177

Loading the compatible products…

Edge Single-Shank 64-Channel Probe, 6 mmSKU prb_acl--a1x64_edge_6mm_20_177

12 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
64
41024

Top 8% of catalog designs

Sites 64 — higher than 92% of catalog designs and 93% of its family
Shanks
1
116

Top 58% of catalog designs

Shanks 1 — higher than 42% of catalog designs and 40% of its family
Shank length
6 mm
1 mm60 mm

Top 39% of catalog designs

Shank length 6 mm — higher than 61% of catalog designs and 72% of its family
Maximum site depth
5.96 mm
0.972 mm51.29 mm

Top 40% of catalog designs

Maximum site depth 5.96 mm — higher than 60% of catalog designs and 71% of its family
Minimum site depth
4.7 mm
0.067 mm44.74 mm

Top 42% of catalog designs

Minimum site depth 4.7 mm — higher than 58% of catalog designs and 70% of its family
Span, x
0.018 mm
0.01 mm6.03 mm

Top 82% of catalog designs

Span, x 0.018 mm — higher than 18% of catalog designs and 19% of its family
Span, y
1.27 mm
0.01 mm10.55 mm

Top 40% of catalog designs

Span, y 1.27 mm — higher than 60% of catalog designs and 54% of its family
Site pitch, y
0.02 µm
0.01 µm1.5 µm

Top 78% of catalog designs

Site pitch, y 0.02 µm — higher than 22% of catalog designs and 4% of its family
Site outline area
0.023 mm²
0.002 mm²28.74 mm²

Top 83% of catalog designs

Site outline area 0.023 mm² — higher than 17% of catalog designs and 16% of its family
Neural interface volume
0.458 mm³
0.149 mm³17.19 mm³

Top 72% of catalog designs

Neural interface volume 0.458 mm³ — higher than 28% of catalog designs and 18% of its family
Site coverage density
2799.7 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 1% of catalog designs

Site coverage density 2799.7 sites/mm² — higher than 99% of catalog designs and 98% of its family
Brain coverage density
139.6 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 6% of catalog designs

Brain coverage density 139.6 sites/mm³ — higher than 94% of catalog designs and 98% of its family
Edge Single-Shank 64-Channel Probe, 6 mmSKU prb_acl--a1x64_edge_6mm_20_177
